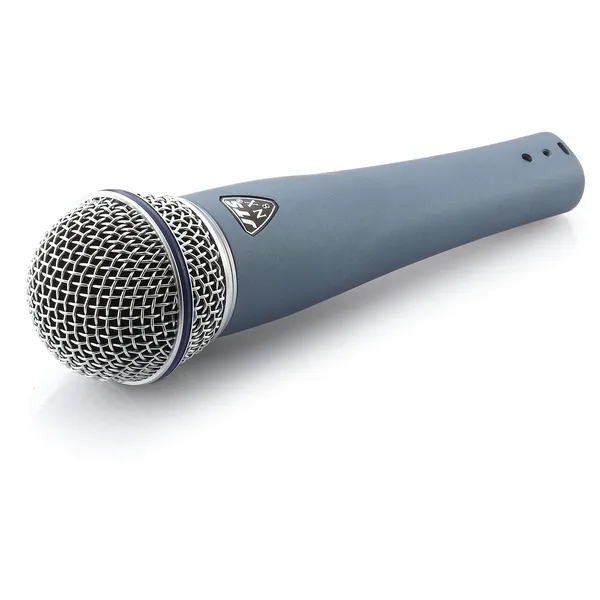

JTS NX-8

The NX-8 is a Dynamic microphone . The shock mount keeps handling noise to extremely low level. Reinforced cartridge and hardened rounded grille make NX-8 one of the most rugged mics in the professional microphone industry. Supplied in a box with a leather pouch and clip.

Based on the success of X-series performance microphones NX-8/NX-8S reenhance overall performance. NX-8/NX-8S provide extended frequency response and dynamic range for cleaner and smoother sound. The shock mount keeps handling noise to extremely low level. Reinforced cartridge and hardened grille make NX-8/NX-8S one of the most rugged mics in the professional microphone industry.

Specifications:

Frequency response:    50Hz - 16.5kHz
Net Weight:    245g
Microphone Type:    Moving Coil Dynamic
Polar Pattern:    Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Impedance:    600Ω
Sensitivity (at 1kHz):    -72dB* (0.25mV)*0dB
Phasing:    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector:    3 Pin Male XLR
Case:    Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
