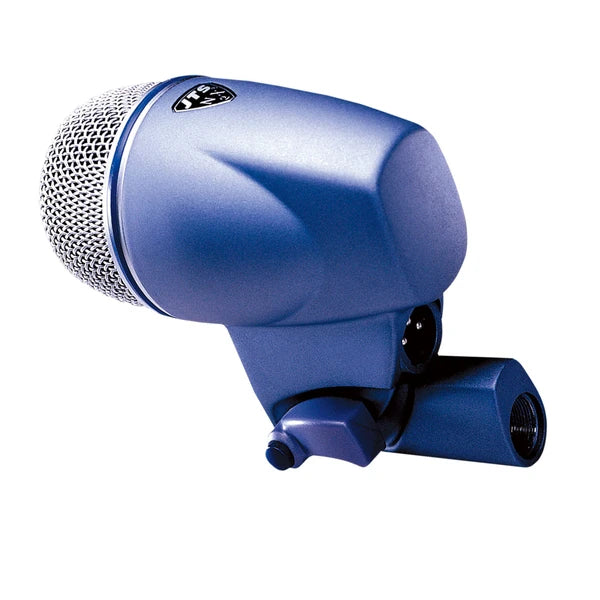

JTS NX-2

The NX-2 is a Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille Integral, dynamic, adjustable instrument microphone. Perfect for bass instruments. User-friendly locking mount provides optimal position for pick-up.

Bass Instrument Microphone

The NX-2 is born for solving the problem in low frequency sound faced by most microphones. The specially designed frequency response provides excellent output of low end punch on a kick drum. Accurate pick-up pattern ensures the best gain-before-feedback and isolation from other sound sources on or off stage. The NX-2 is optimal for kick drum and other bass instruments.

Specifications:

Frequency response:    20Hz - 12kHz
Net Weight:    815g
Microphone Type:    Moving Coil Dynamic
Polar Pattern:    Supercardioid,rotationally symmetrical about microphone axis, uniform with frequency
Impedance:    600Ω
Sensitivity (at 1kHz):    -85dB*(0.056mV)*0dB
Phasing:    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector:    3 Pin Male XLR
Case:    enamel-painted die cast metal body with hardened, matte-finished steel grille Integral, dynamic locking, adjustable
Adjustable Locking Mount:    180
