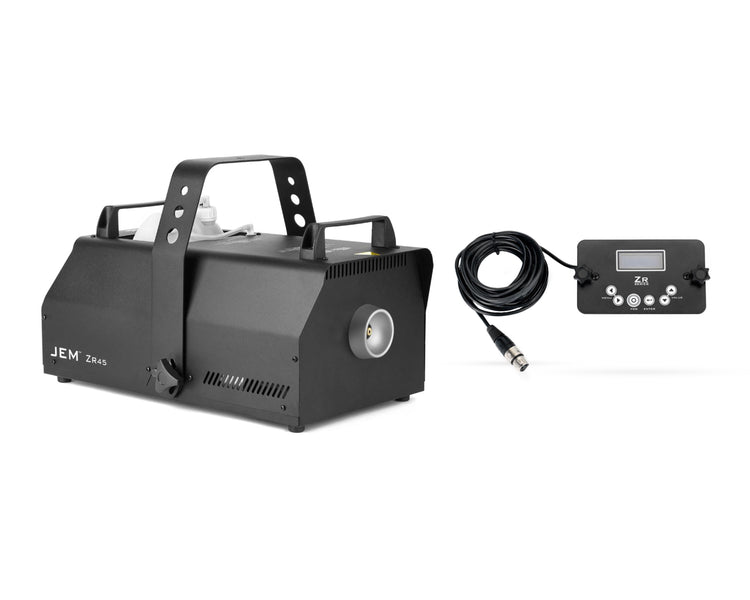

The JEM™ ZR45 is a high-end fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its enhanced and powerful 2,000 W heat exchanger, the JEM ZR45 produces an exceptional peak output ideal for major venues and stages in both install and rental markets.
The rugged yet weight-optimized JEM ZR45 also features variable output control for more subtle effects and is fully up-to-date with digital remote, DMX and RDM.
The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.
Features:
High endurance high-end fog machine
Exceptional performance and output
Various control options via digital remote, DMX and RDM
2,000 W (EU model) / 1,800 W (US model) heat exchanger
80 ml in 30 seconds peak performance
1300 m³/min fog output
Variable output control for subtle effects
9-10 minute warm-up time
Digital remote, DMX and RDM
Compatible with a wide range of JEM Pro fog fluids
Floor standing or truss mounting (bracket included)
PowerCON TRUE1
5-liter bottle
Specifications:
Physical:
Length: 602 mm (23.1 in.)
Width: 395 mm (15.6 in.)
Height: 306 mm (12.1 in.)
Height including hanging bracket: 393 mm (15.5 in.)
Dry weight: 17.7 kg (39.1 lb.)
Filled weight: 22.7 kg (50 lbs.)
Control and Programming:
Control options: Integrated digital remote control, DMX, optional analog remote control, master/slave link mode
Control parameters: Continuous or timer-controlled output
Fog: Variable output control, 0-100%
DMX channels: 1
DMX compliance: ANSI E1.11 - USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
Construction:
Housing: Steel and aluminum
Hanging bracket: Integrated yoke w/safety attachment point
Color: Black
Heat exchanger (US model): 1800 W, thermally protected
Heat exchanger (EU model): 2000 W, thermally protected
Fluid pump: Dual oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation
Fluid reservoir: 5 l drop-in reservoir with quick-connect fitting
External fluid control: Fluid sensing
Remote control: Integrated Digital Remote with 3 m cable, 3-pin XLR
Installation:
Mounting: Standing or hanging
Orientation: Up to +/- 40° from horizontal
Clearance around machine: 100 mm (4 in.)

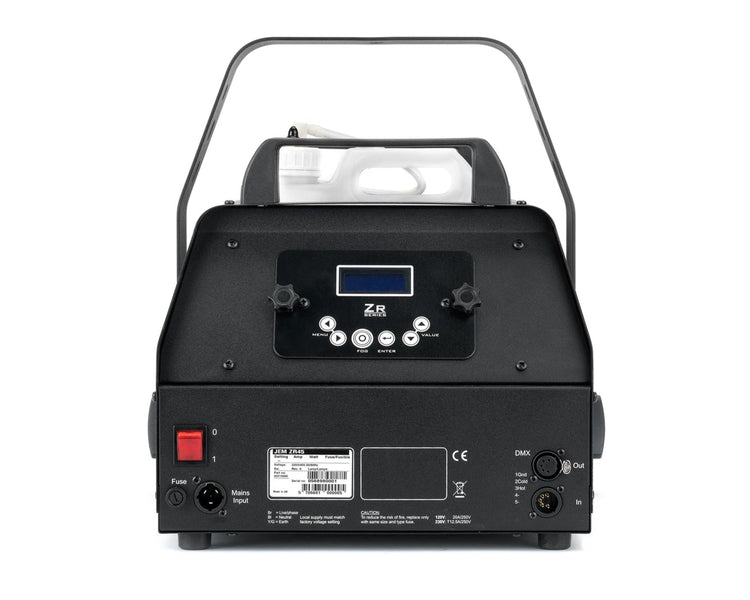

Connections:
AC Power: Neutrik PowerCON TRUE1
DMX, link mode in/out: 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket
