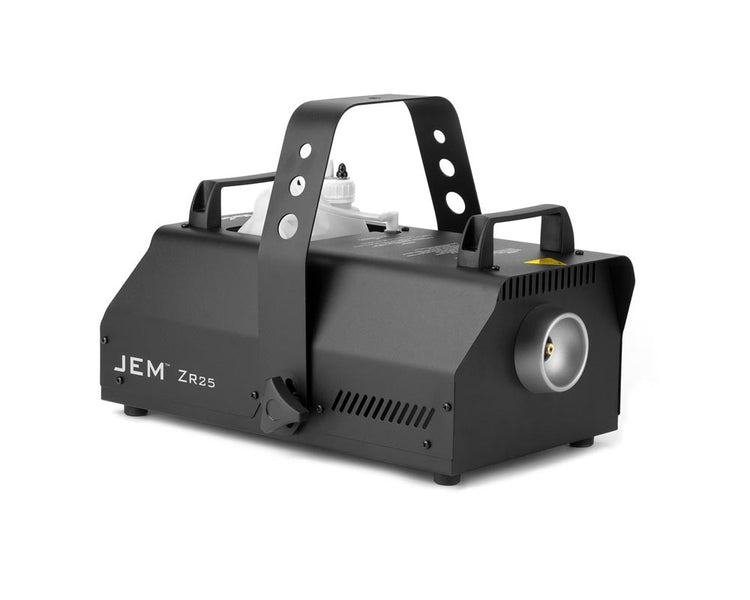

The JEM™ ZR25 is a small, yet powerful fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its 1,150 W heat exchanger, the JEM ZR25 produces large amounts of fog ideal for small to medium-sized venues and stages in both install and rental markets.
The JEM ZR25 features variable output control for more subtle effects and is fully up-to-date with digital remote, DMX and RDM.
The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.
Features:
Small but powerful fog machine
Exceptional performance and output for its size
Simple plug-and-play operation via remote control or DMX
1,150 W heat exchanger
40 ml in 30 seconds peak performance
600 m³/min fog output
Variable output control for subtle effects
7-8 minute warm-up time
Digital remote, DMX and RDM
Compatible with a wide range of JEM Pro fog fluids
Floor standing or truss mounting (bracket included)
PowerCON TRUE1
2.5-liter bottle
Specifications:
Physical:
Length: 485 mm (19.1 in.)
Width: 335 mm (13.2 in.)
Height: 242 mm (9.6 in.)
Height including hanging bracket: 333 mm (13.2 in.)
Dry weight: 11.2 kg (24.7 lbs.)
Filled weight: 13.7 kg (30.2 lbs.)
Control and Programming:
Control options: Integrated digital remote control, DMX, optional analog remote control, master/slave link mode
Control parameters: Continuous or timer-controlled output
Fog: Variable output control, 0-100%
DMX channels: 1
External fluid control: Fluid sensing
DMX compliance: ANSI E1.11 - USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
Construction:
Housing: Steel and aluminum
Hanging bracket: Integrated yoke with safety attachment point
Colour: Black
Heat exchanger: 1150 W, thermally protected
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation
Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
External fluid control: Fluid sensing

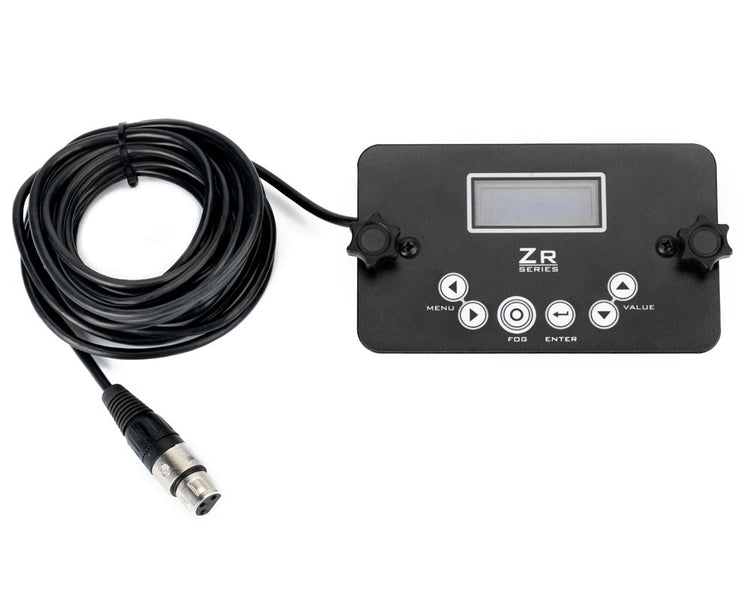

Remote control: Integrated Digital Remote with 3 m cable, 3-pin XLR
Installation:
Mounting: Standing or hanging
Orientation: Up to +/-40° from horizontal
Clearance around machine: 100 mm (4 in.)

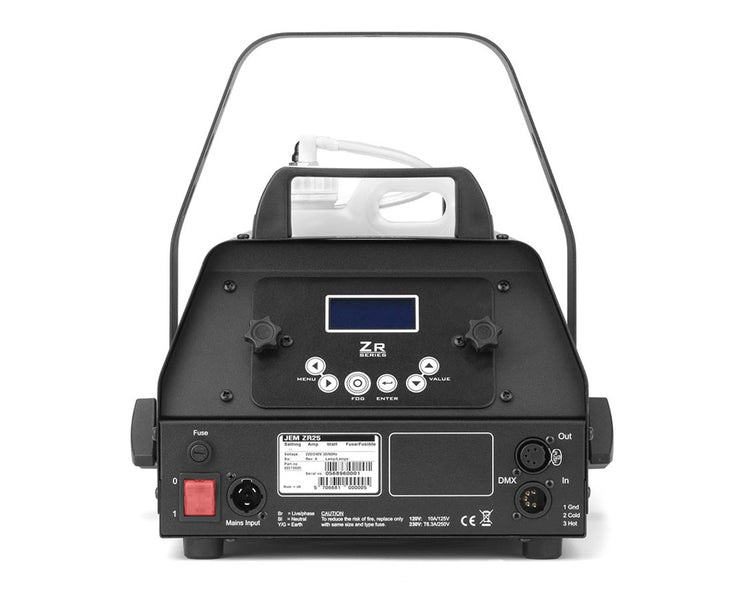

Connections:
AC Power: Neutrik PowerCON TRUE1
DMX and link mode in/out: 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket
