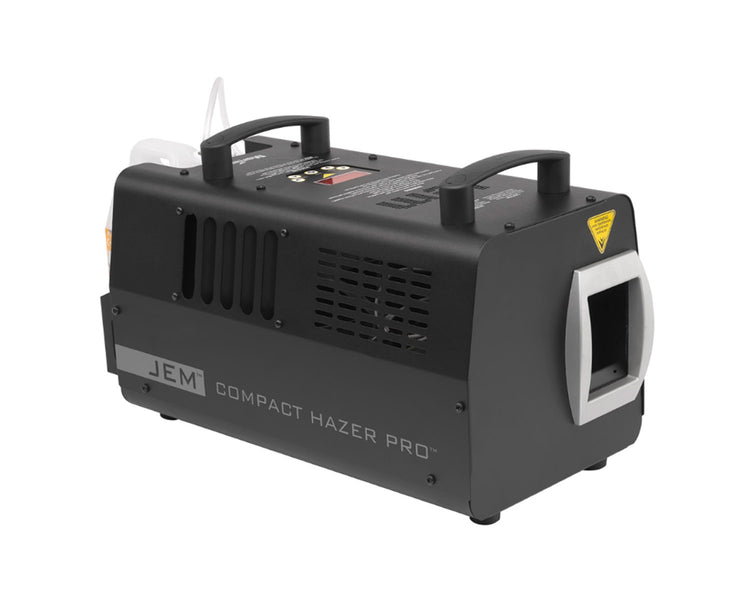

Robust yet small and lightweight, the Jem Compact Hazer Pro is a versatile haze machine designed for the highly demanding professional market. Its ability to produce exceptional atmospheric haze effects in a short period of time while operating at low noise levels make it ideal for nearly any application from shows and events to theatre, TV studios, clubs, cruise ships, theme parks and more.
Features:
Finest haze production in its class
Small particle, even haze
Continuous output
1 minute heat up time
Water-based fluid with long hang time
Low noise
Lightweight
Optical Density Timer Control system (ODTC)
Variable haze and fan controls with 5% increments
2.5 liter fluid capacity
Max operating time at min output (2.5 L) - 70 hours
Sealed fluid system for transportation
Advanced Pump Technology (APT)
Shutdown with automatic start-up cleaning mode (if shutdown not performed correctly)
Shutdown button prevents clogging
RDM ready
On-board DMX 5pin
User-friendly on-board control panel
Digital remote control option
Optional flying kit and air director
Specifications:
Length: 532 mm (20.9 in.)
Width: 224 mm (8.8 in.)
Height: 278 mm (10.9 in.)
Dry weight: 8.5 kg (18.7 lbs.)
Operating time: Continuous
Warm-up time (approx.): 1 minute
Maximum operating time at minimum output (2.5L): 70 Hours
Performance
Operating time: Continuous
Warm-up time (approx.): 1 minute
Maximum operating time at minimum output (2.5L): 70 Hours
Control options: Onboard digital control panel with 4 digit display
Control options: Continuous or timer-controlled output, 0-100% adjustable output level
Control options: Adjustable fan speed level, 0-100%
DMX channels: 3 (Haze, Fan, Special functions)
RDM: RDM Ready
Optional digital remote control
Housing: Steel & aluminum
Heat exchanger: 900 W
Fluid pump: Oscillating piston, high pressure
Onboard fluid capacity: 2.5 l
Compatible Fluids: Jem C-Plus Haze Fluid™ only
Orientation: Floor or optional flying kit
Power connection: Neutrik PowerCon
DMX data: 5-pin XLR
Remote control: 3-pin locking XLR
AC power (EU models): 220-240 V nominal, 50 Hz
Main fuse (220-240 V power): 6.3 AT
Maximum ambient temperature (Ta max.): 40° C (104° F)
Exterior surface temperature, steady state: 30° C (86° F)
Max. nozzle temperature: 290° C (554° F)
