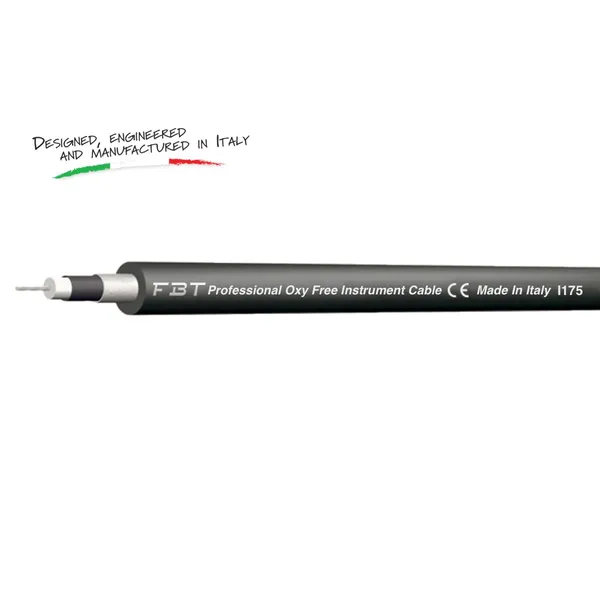

I175

Noiseless, ultra flexible instrument cable with Ø 6.7 mm PVC overall jacket - 100m Reel
Our exciting new Bulk Cable range has been chosen to offer the best quality using carefully selected materials, new design and the assurance of 'Made In Italy' production. The I175 is a premium single core + screen bulk instrument cable, ultra flexible with excellent signal transmission without alteration. Available in 100m drum

*Cable length 100m drum - Please order per drum

PRODUCT DESCRIPTION:

Our exciting new Bulk Cable range has been chosen to offer the best quality using carefully selected materials, new design and the assurance of 'Made In Italy' production. The I175 is a premium single core + screen bulk instrument cable, ultra flexible with excellent signal transmission without alteration. Available in 100m drum

*Please order in multiples of 100m

KEY FEATURES:

Conductor nxmm2             1 x 0.75/18 AWG

Conductor          Tinned Copper 42 x 0.15

Insulation mm      PE 3.1

Shield 1      PVC Semi-Conductive: 100%

Shield 1       Tinned Copper Braid: >94%

Jacket mm             PVC Flex: 6.7

Cond. Resistance /km             <25

Shield Resistance /km            20

Capacitance pF/mt           86

Temperature Rating ºC           -20/+70

Cable Reel Length         100m
