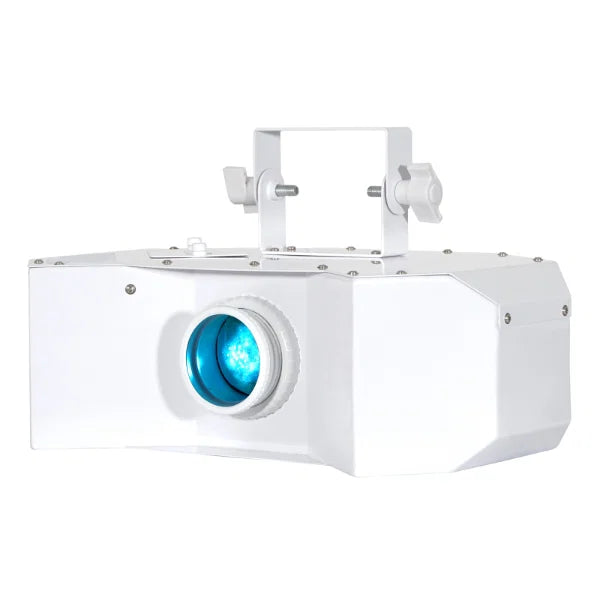

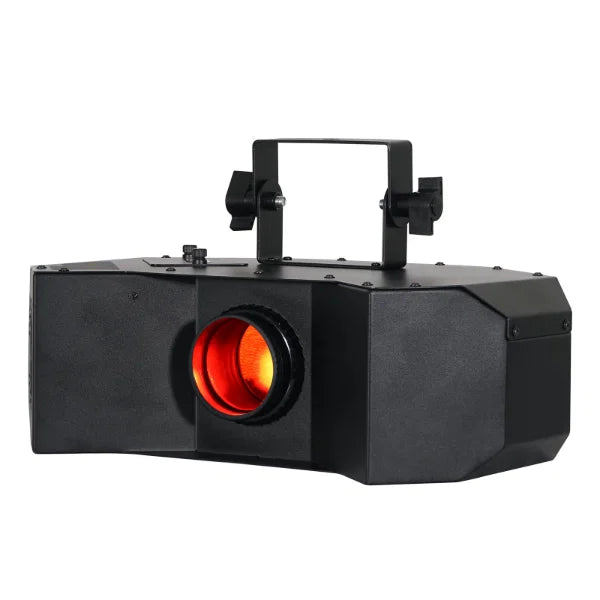

The Equinox Helix XP is a powerful 150W LED gobo flower which produces an array of multi-coloured rotating gobos. All 8 gobos are interchangeable along with a separate colour wheel featuring 9 colours plus open. To further enhance this effect, an additional 11-piece gobo pack is also included to cover many popular events and celebrations. Clever programming allows users to select a single gobo and then have specific colours from the colour wheel added whilst being activated automatically or via sound. The unit, although compact in size, has a wide beam angle but still packs a punch over a long distance thanks to its superior optics and high output LED. The Helix XP can be linked with the Helix Scan XP and Helix Roller XP to create synchronised shows. Available in a black or white housing.
Features:
1 x 150W cool white LED (7,200K)
Beam angle: 42°
Manual focus
8 rotating, replaceable gobos
9 colours + open
DMX channels: 2/6 or 8 selectable
Auto, sound active and master/slave modes plus built-in programs
0-100% dimming
Variable strobe
Optional CA 8 controller
Supplied with dual position mounting bracket

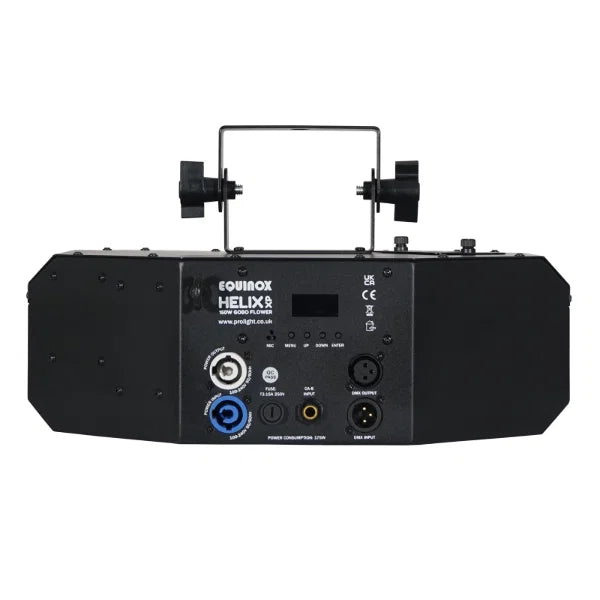

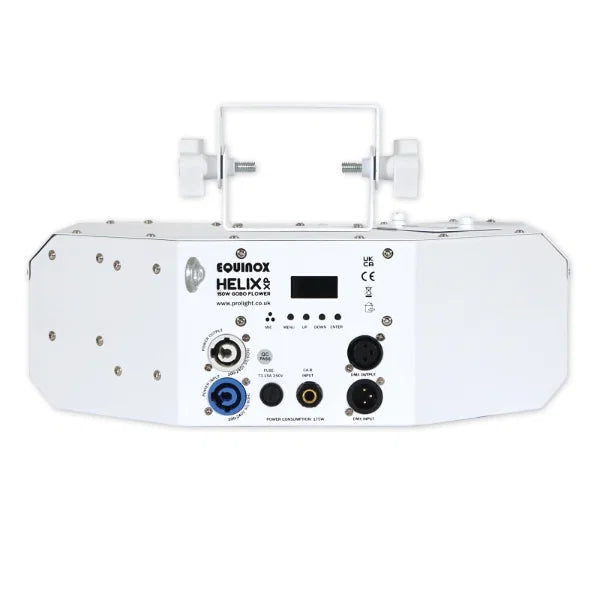

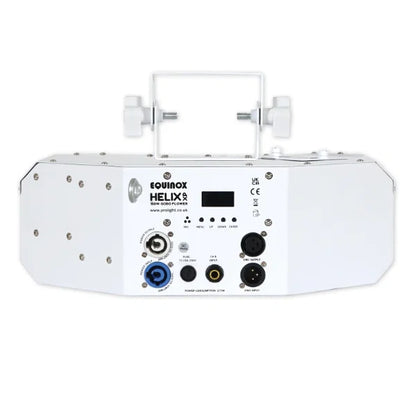

4 button menu with LED display
PowerTwist input/output
3-Pin XLR input/output
Fan cooled
Supplied with an additional gobo pack containing 11 popular gobos
Linkable with the Helix Scan XP and Helix Roller XP
Power consumption: 175W
Power supply: 100~240V, 50/60Hz
Fuse: T3.15A 250V
Dimensions (H x W x D): 205 x 370 x 273mm
Weight: 4.8kg
