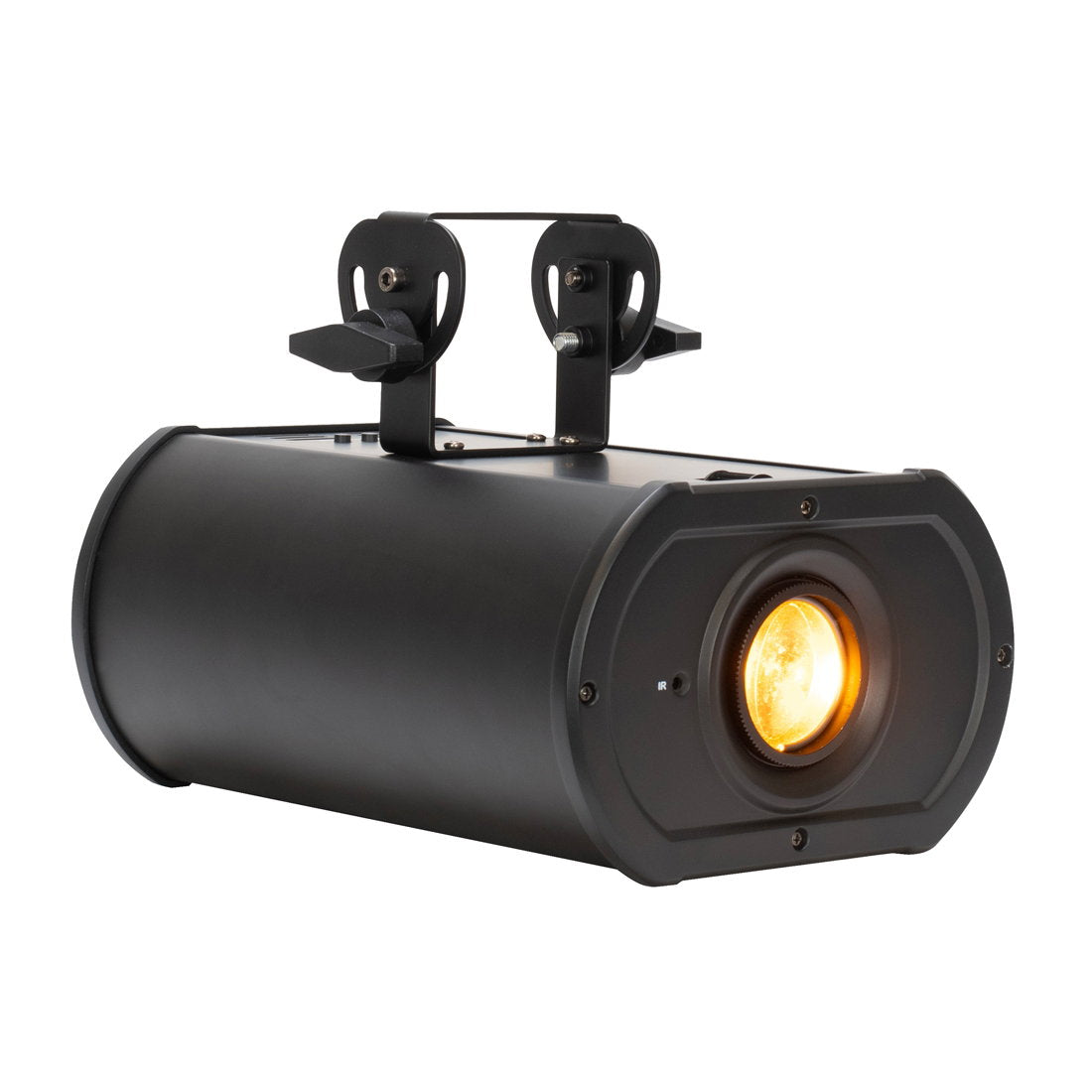

H2O Two

The H2O TWO is a stimulating lighting fixture designed to bring a dynamic water-like effect to your lighting display. With a bright 120-Watt cool white LED source and 5 Dichroic colours this fixture creates a mesmerizing simulated water effect that can be projected onto walls ceilings or floors. The H2O Two can be used with or without fog and is great for mood or background lighting.

This fixture is equipped with two DMX channel modes and may be controlled via DMX the included IR wireless remote or from the built-in programs giving you complete control over your lighting setup. The digital DMX display with a 4-button menu makes navigation easy while the 0-100% dimming (via DMX) manual adjustable zoom and focusing lens allow you to fine-tune the lighting to your exact specifications.

Built to last the H2O Two features long-life LED source rating of 50000 hours and multi-voltage operation (AC 120-240V 50/60Hz). The fixture is fan-cooled and includes a safety loop on the rear panel ensuring reliable and safe operation. With a power consumption of only 125W (@ 220V) the H2O TWO can run all night without the need for a duty cycle.

Features:

Light Source:
Bright, 120W Cool White LED
Colour Temperature: 7000K
50,000 Hour Average LED Life

Colour Wheel with 5 Dichroic Colours Plus White
27° to 37° Manually Adjustable Zoom
Manual Focus of Lens for Blurry Effects
0.6Hz to 7.5Hz Strobe Rate
3 Built-In Programs
Primary / Secondary Mode
Fan Cooled

Control:
Control Protocol: DMX and IR Remote
2 DMX Modes: 4 and 9 channel modes
Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
Dim Curves: 4 Presets (Linear, Square Law, Inv. Square Law and S Curve)
0-100% Smooth Dimming
Variable, Pulse & Random Strobe Modes
Max Strobe Rate 7.5Hz. Min Strobe Rate: 0.6Hz.
With Wired Digital Communication Network

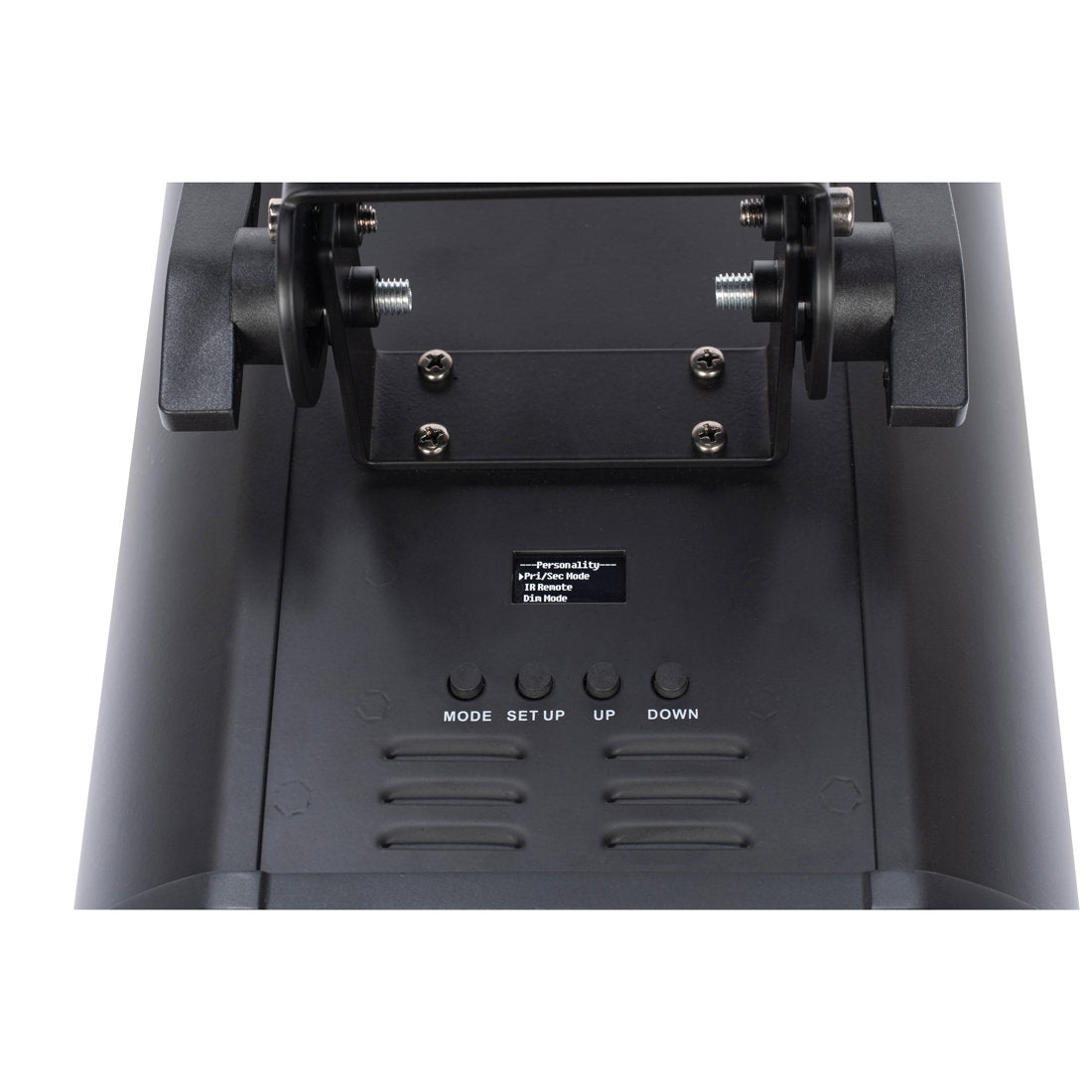

Display: OLED display with 4-button touch menu

Connections:
Data: IP20 Indoor locking 5-pin DMX In/Out
Power: IP20 Indoor locking power In/Out
Safety Loop

Electrical:
100-240V 50Hz/60Hz., Auto Sensing, Power Input
Power Out to link multiple like units
Max Power Consumption: 125W @220V
Max Power Link: 16 pcs @220V
Fuse Protected: T5A/250V Glass Fuse (5*20MM)

Dimensions / Weight:
Length: 315mm
Width: 231mm
Height: 234mm
Weight: 5 kg

What’s Included:
1x 1.83m, 3x18AWG, Indoor Power locking power cable

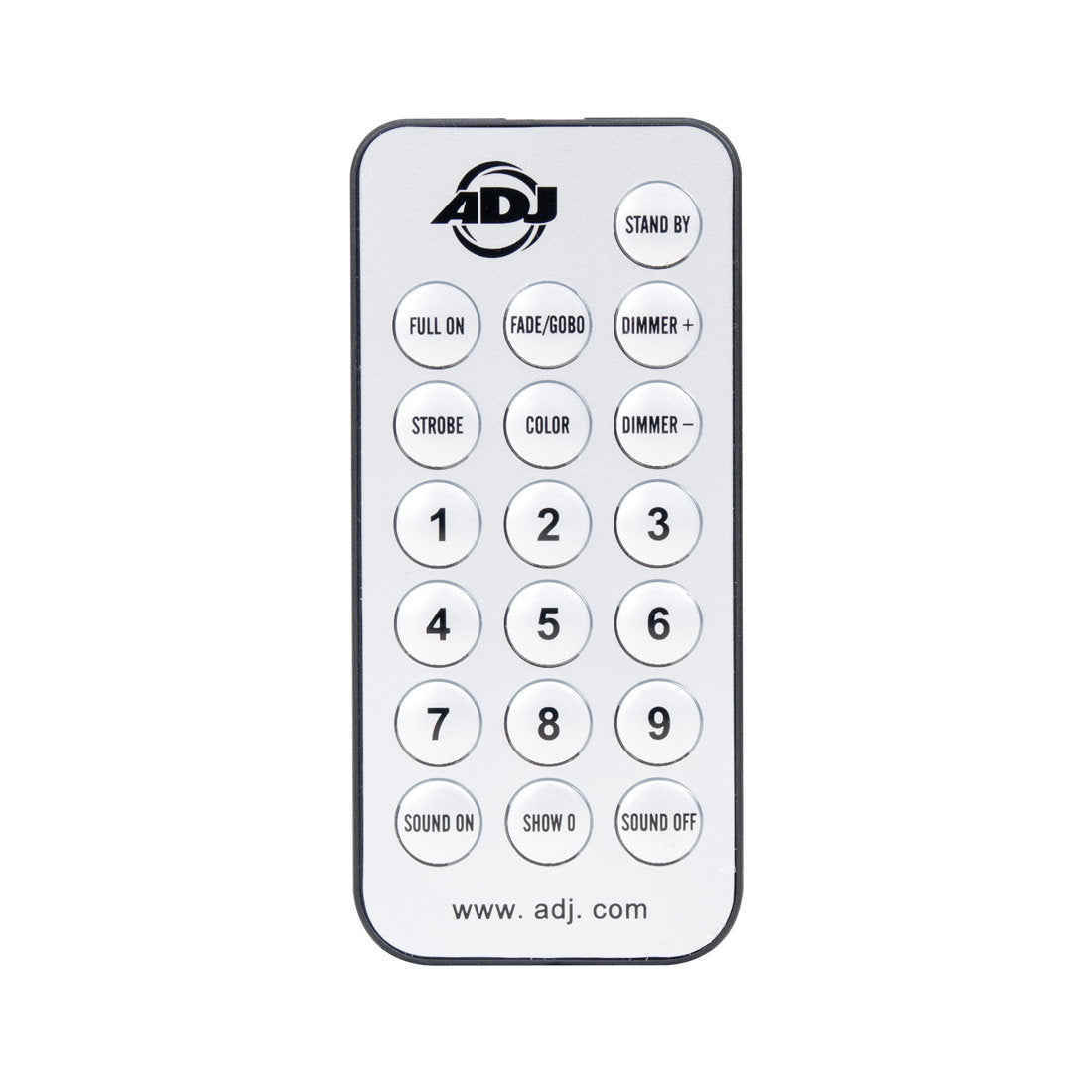

1x UC-IR (IR Remote)

Approvals and Ratings:
CE
cETLus (Pending)
IP20
