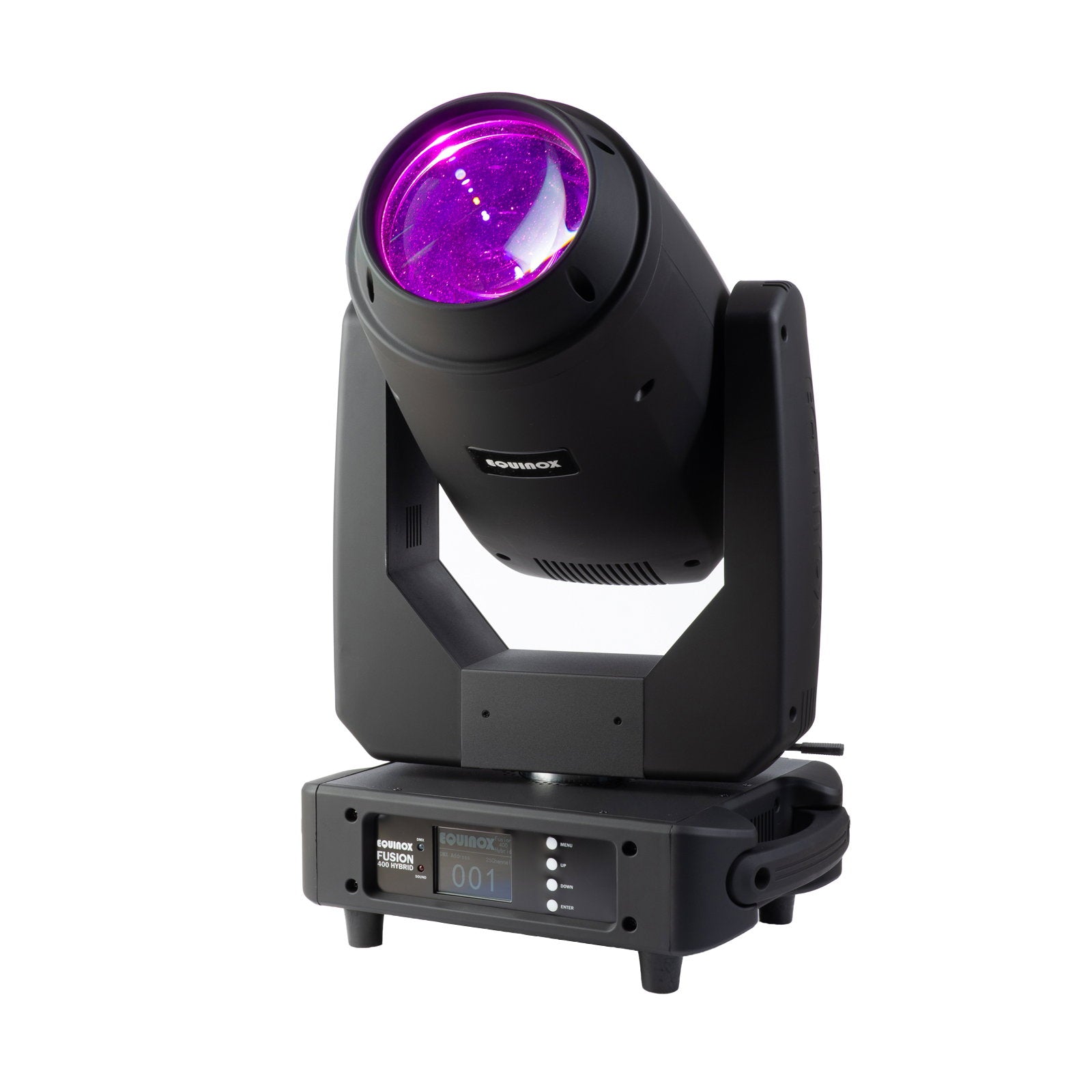

The Equinox Fusion 400 Hybrid is an all-in-one BSW moving head that combines a powerful spot, beam and wash all in a single fixture. Fitted with an intense 400W LED with motorised zoom and focus it projects sharp beams and gobos over almost any distance. Two overlapping independently controlled prisms create dynamic beam effects. Two gobo wheels allow for gobo morphing and superb mid-air projections, whilst full CMY colour mixing and 8 colours allow for even more effects. Also included is a frost filter and variable CTO flag. Control is facilitated by 4 button LCD display.
Features:
1 × 400W white LED (8000K)
Adjustable beam angle: 4°–50°
Lumens (source): 22,000
Lumens (output): 13,000
Motorised zoom and focus
5-facet circular rotating indexable prism plus 6-facet linear rotating indexable prism
Frost filter
CRI: 70
Refresh rate: 8 selectable presets between 900 Hz–25 kHz
Gobo wheel 1: 7 rotating, replaceable gobos + open
Gobo wheel 2: 10 static, replaceable gobos + open
CMY colour mixing: Cyan 0–100%, Magenta 0–100%, Yellow 0–100%
Colour wheel: 8 colours + variable CTO (0–100%) + open
DMX channels: 25 or 33 selectable
Wireless control (W-DMX Sweden transceiver)
Auto, sound active, manual control and primary/secondary modes
RDM (Remote Device Management)
Pan/tilt transit lock and auto correction
16-bit pan/tilt positioning
Pan: 540°, Tilt: 270°
0–100% dimming
Variable strobe
Supplied with quick-release omega clamps
4-button menu with 2.8" LCD touch screen display
PowerTwist TR1 input/output
3-pin XLR input/output
5-pin XLR input/output
Temperature-controlled fans
Power consumption: 430W
Power supply: 100~240V, 50/60Hz
Fuse: F7A 250V
Dimensions (H × W × D): 650 x 380 x 363mm
Weight: 26kg
