The Equinox Fusion 260ZP Moving Head Wash Light takes performance to the next level with temperature-controlled fans smoother movement and refined dimming control. Equipped with 19 × 12W RGBL quad-colour LEDs it delivers everything from a range of colour temperature presets and soft pastels to vivid saturated colours with exceptional clarity.
Designed for creative versatility the LEDs are fully pixel mappable enabling dynamic colour chases eye-catching patterns and comprehensive wash coverage. A motorised zoom range of 6°–50° provides both tight beam effects and wide-angle washes adapting effortlessly to a range of performance environments.
Ideal for concerts theatre productions and live events the Fusion 260ZP is a powerful and reliable tool for any lighting designer. 16-bit pan/tilt with auto correction 7 selectable DMX channel modes wireless DMX ArtNet PowerTwist TR1 and quick-release omega clamps make this fixture extremely versatile and able to integrate seamlessly into any rig.
Features:
19 × 12W quad-colour LEDs (RGBL)
Adjustable beam angle: 6°–50°
6° – 32,722 Lux @ 2m (full on)
50° – 3,896 Lux @ 2m (full on)
CRI: 89
Refresh rate: 650Hz, 1.5kHz, 3.6kHz, 12kHz or 25kHz selectable
Motorised zoom
Full pixel mapping capabilities
Control protocols: DMX, Kling-net, Art-net and sACN
DMX channels: 2/9/18/23/27/85 or 93 selectable
Wireless control (W-DMX Sweden compatible transceiver)
Auto, sound active and primary/secondary modes
Forward facing show modes
Colour temperature presets
Pan/tilt auto correction
16-bit pan/tilt positioning
Pan: 540°, Tilt: 270°
0–100% dimming
Variable strobe
4 dimming curves: Linear, square law, inverse square law and S-curve

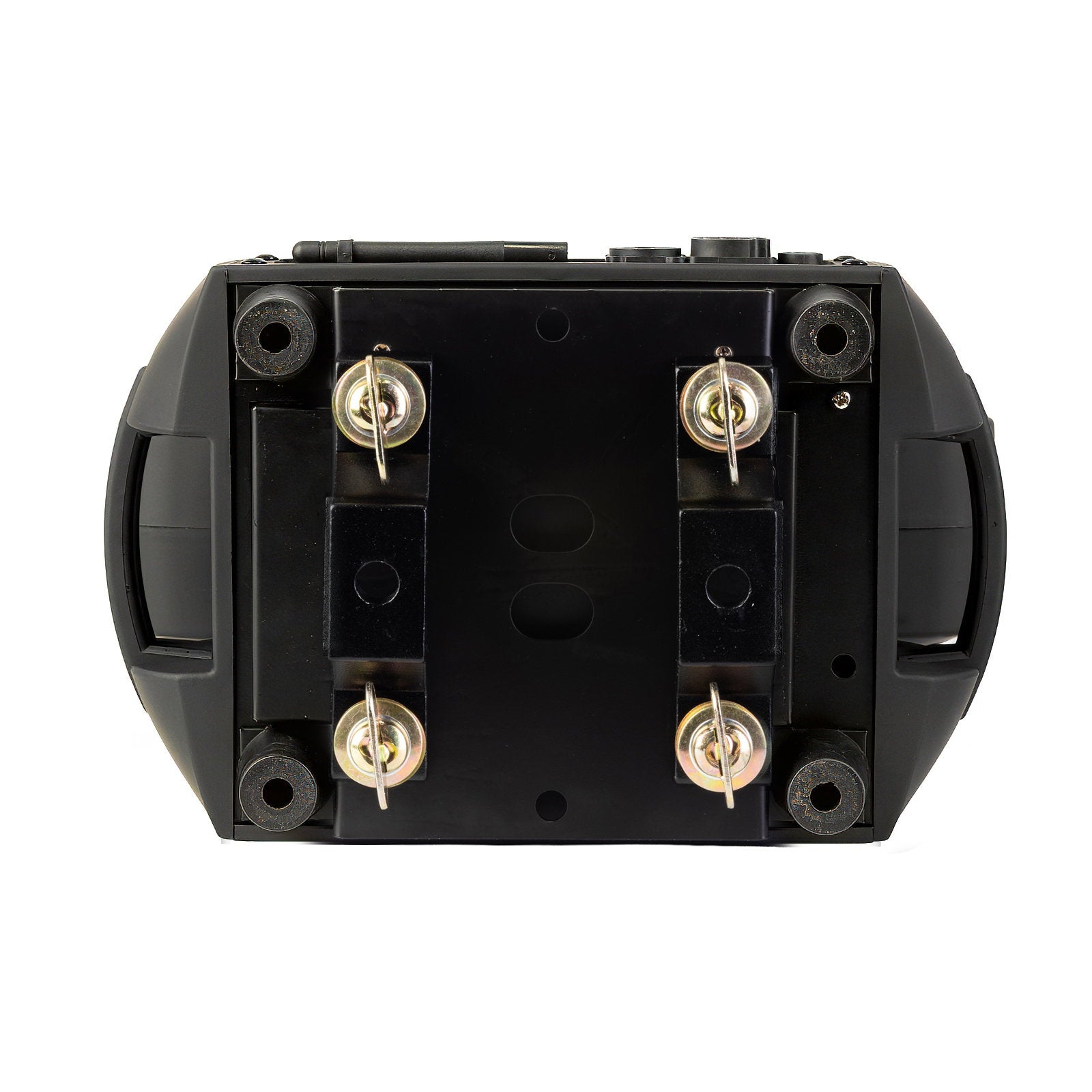

Supplied with quick release omega clamps

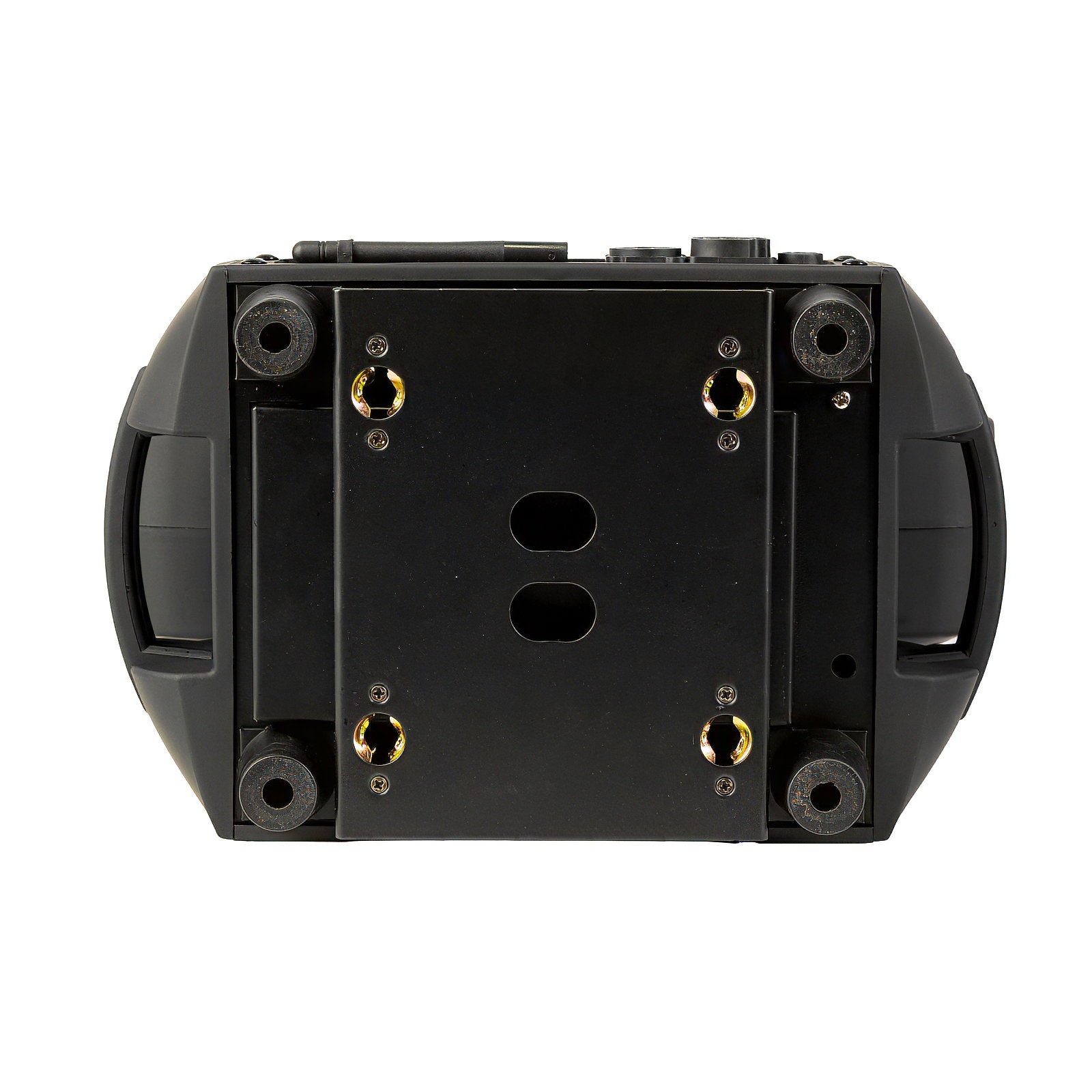

Square hole spacing allows clamp mounting in all orientations
4-button menu with LCD display
PowerTwist TR1 input/output
EtherNET input/output
5-pin XLR input/output
Temperature controlled fans
Power consumption: 323W
Power supply: 100–240V, 50/60Hz
Fuse: F4A 250V
Dimensions (H x W x D): 414 x 324 x 193mm
Weight: 8.5kg
