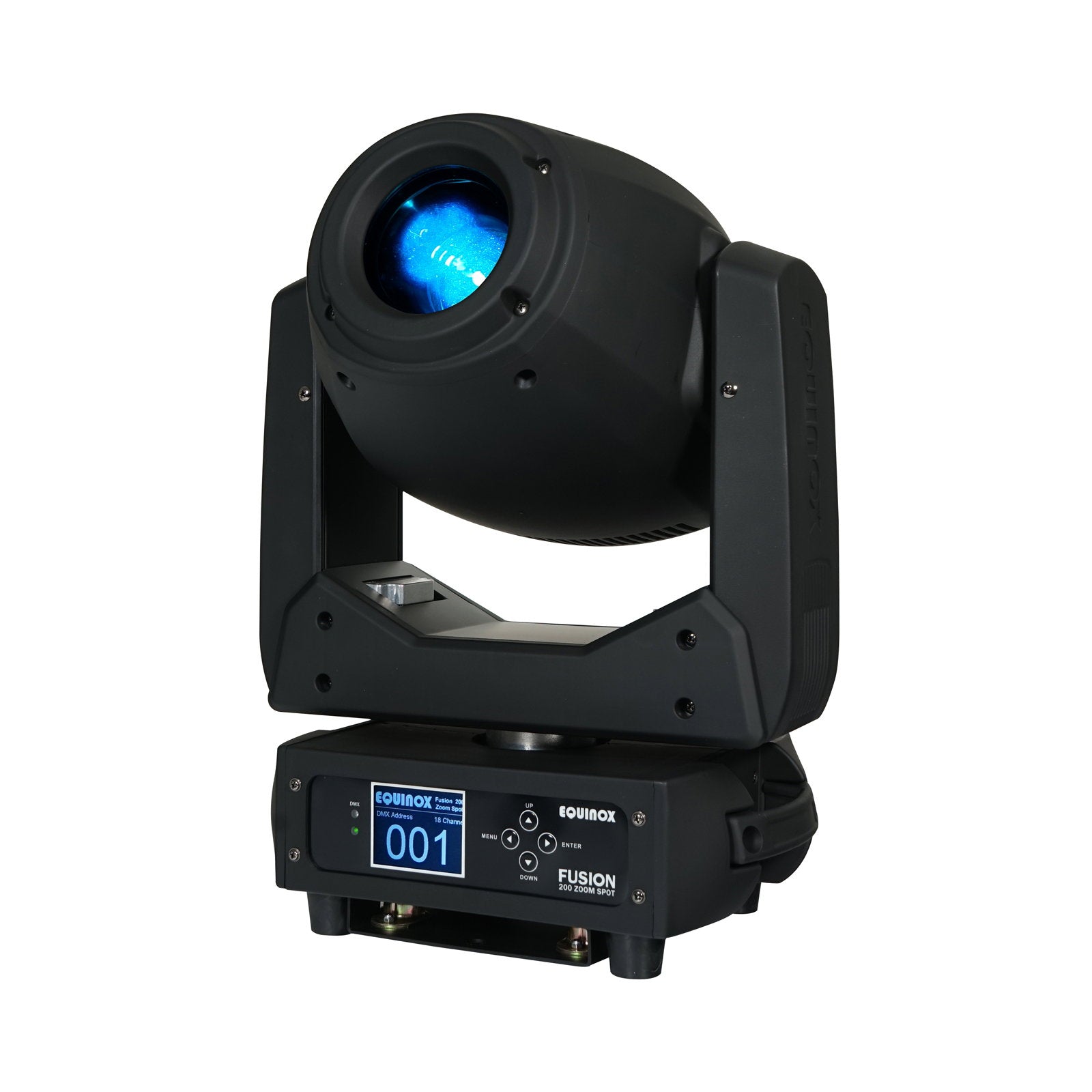

The Fusion 200 Zoom Spot features a single 200W LED and produces stunning light shows with a motorised zoom from 11°- 25°. Offering 7 colours plus open along with a rotating and static gobo wheel each containing 7 gobos plus open, the fixture is ideal for installation and mobile performers alike. Two bi-directional prisms (6 facet circular and 5 facet linear) further bolster the fixtures comprehensive features and a motorised zoom keeps the gobos razor sharp over any distance. The four button menu and LCD display, along with powerCON and DMX inputs/outputs, further enhance the fixture.
Features:
1 x 200W white LED (7500K)
Adjustable beam angle: 11°-25°
11° - 27,900 Lux @ 2m, 25° - 9,855 Lux @ 2m
Refresh rate: 4.3kHz
Motorised zoom and focus
6 facet circular rotating prism plus 5 facet linear rotating prism
Gobo wheel 1: 7 rotating, replaceable gobos + open
Gobo wheel 2: 7 static gobos + open
Colour wheel: 7 colours + open
DMX channels: 2/14 or 18 selectable
Auto, sound active, manual control and master/slave modes
Forward facing show mode
Pan/tilt auto correction
16-Bit pan/tilt positioning
Pan: 540°, Tilt: 270°
0 - 100% dimming
Variable strobe

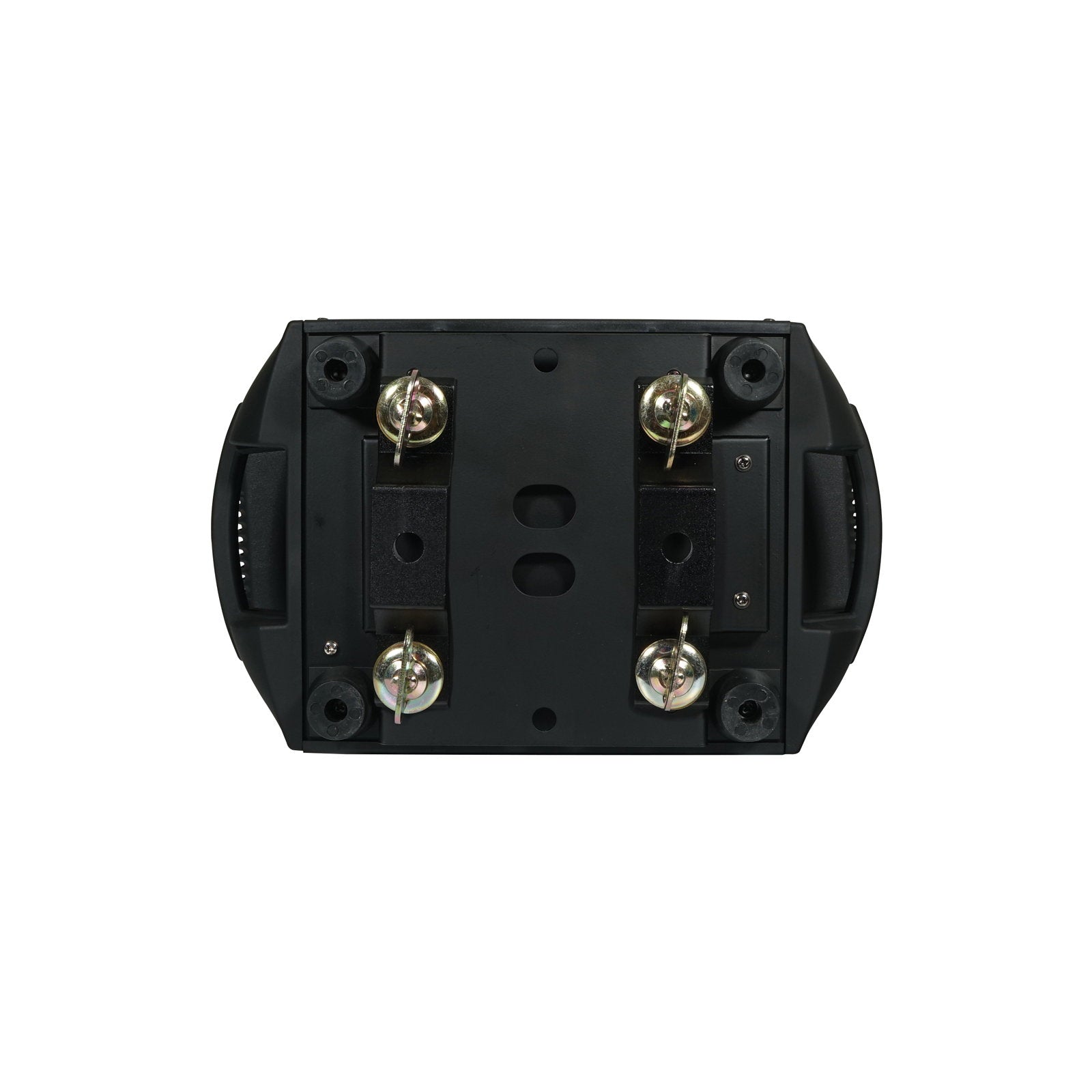

Quick release omega clamps included
Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations
4 button menu with 2.6” LCD display

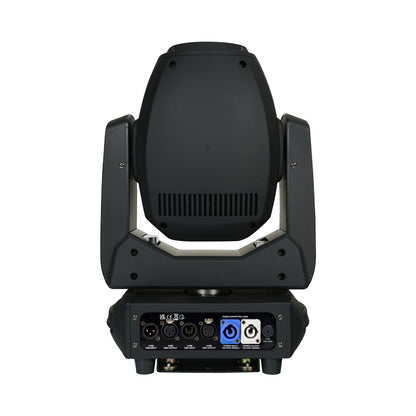

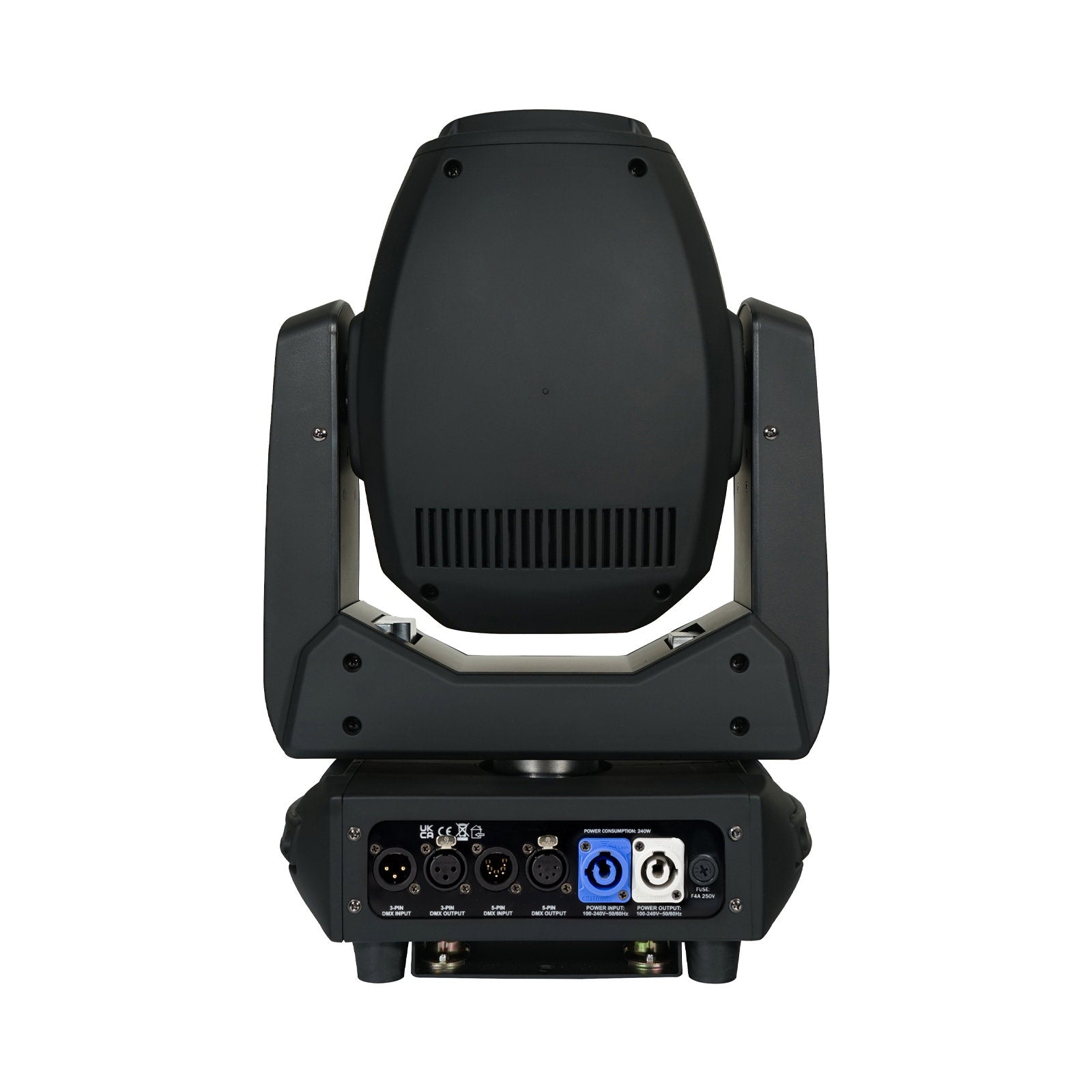

PowerTwist input/output
3-Pin XLR input/output
5-Pin XLR input/output
Fan cooled
Power consumption: 240W
Power supply: 100~240V, 50/60Hz
Fuse: F4A 250V
Dimensions (H x W x D): 459 x 304 x 295mm
Weight: 10.4kg
