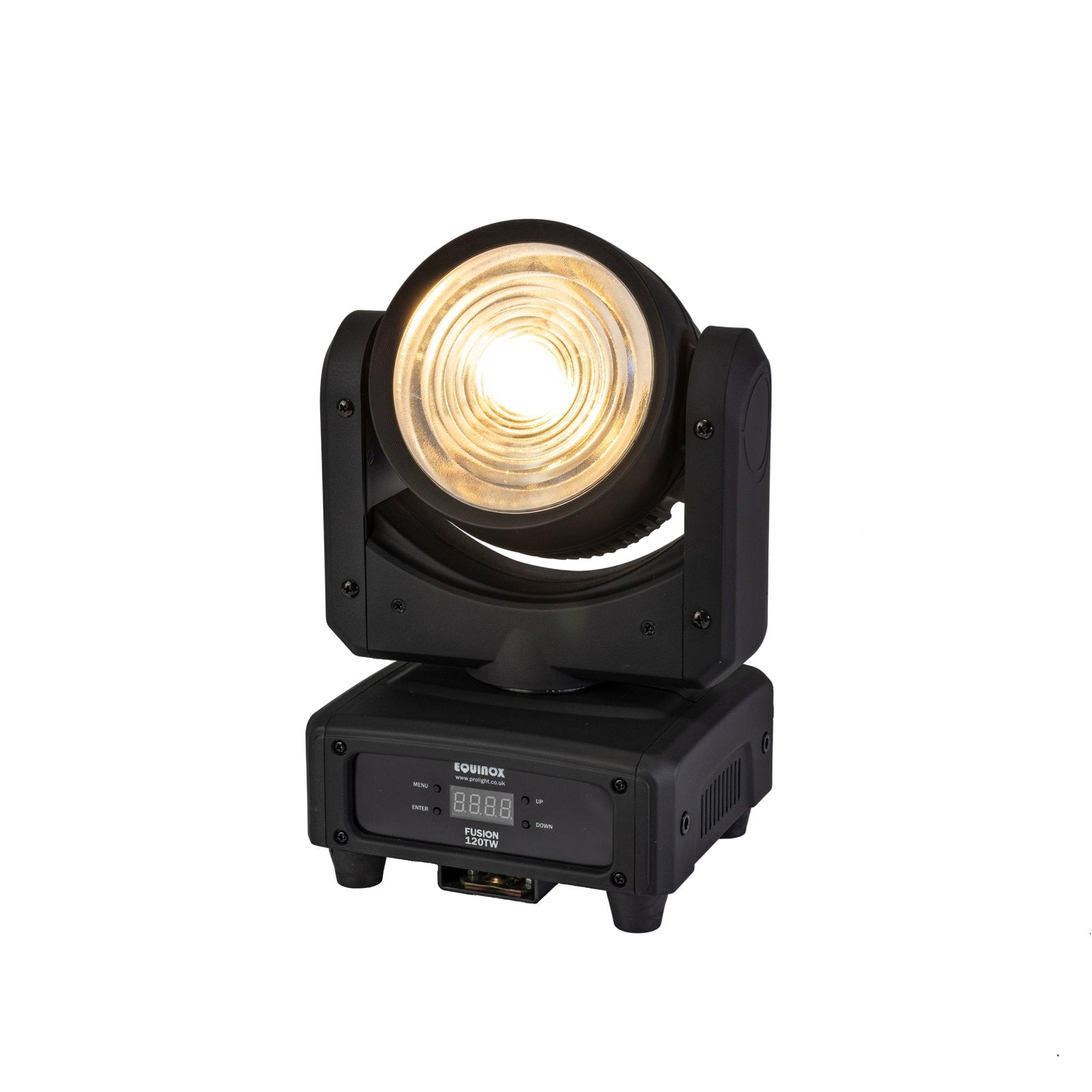

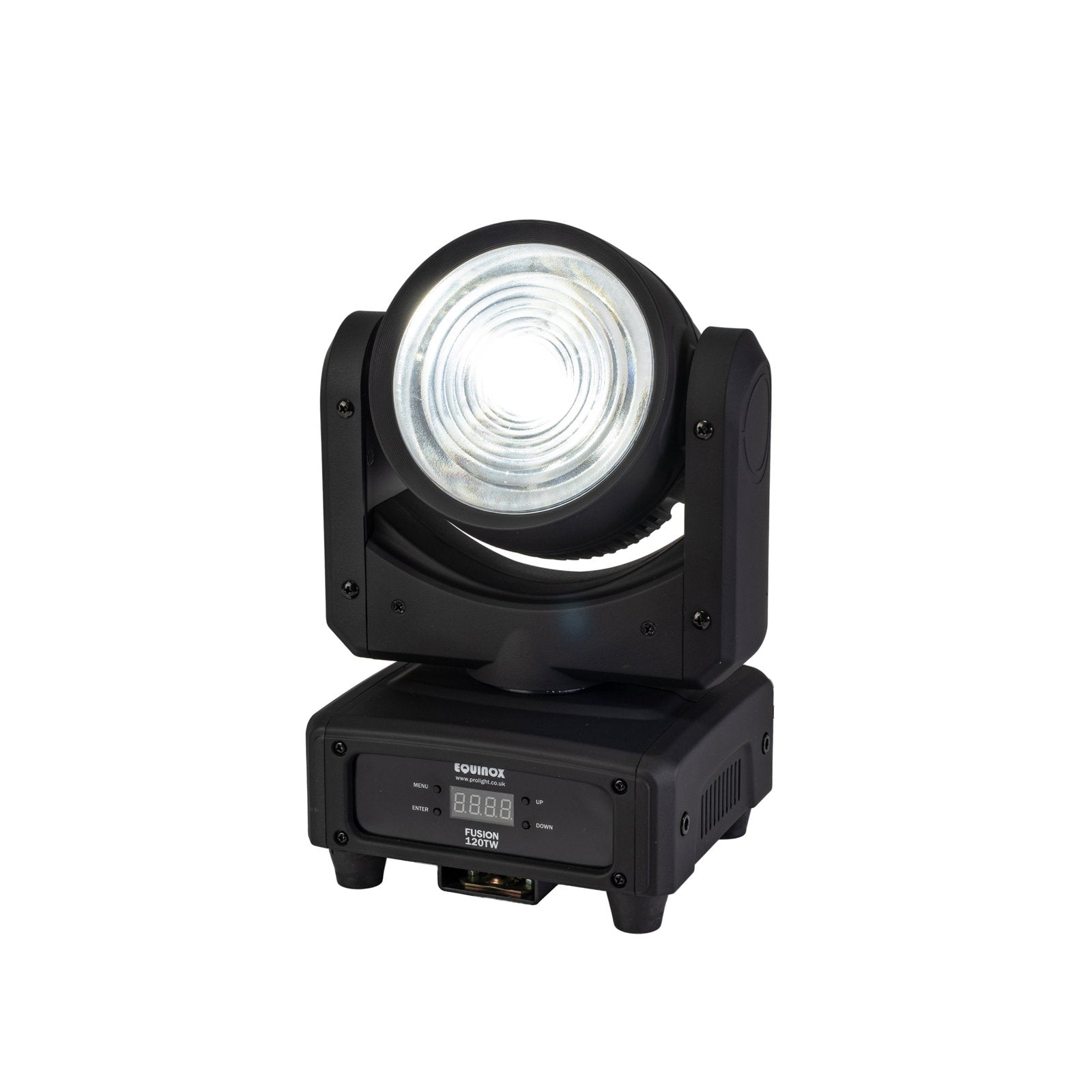

The Equinox Fusion 120TW is a compact yet powerful 120W LED moving head packed full of features. A 120mm fresnel lens and high CRI provide superb colour rendering whilst an RGB LED ring changes colour and chases producing mesmerising eye-candy effects. Also onboard are a host of ring colour macros/programs and colour temperature presets along with 4 dimming curves. An omega clamp is supplied for quick and easy installation whilst the PowerTwist TR1 and 3-Pin DMX inputs/outputs allow for a problem-free connection.
Features:
1 x 120W cool white (6,300K) and warm white (2,700K) COB LED (CW/WW)
26 x tri-colour 5050 SMD LEDs (RGB)
Beam angle: 18°
17,952 Lux @ 2m (full on)
CRI: 90
Refresh rate: 20kHz
DMX channels: 2/11/15 or 21 selectable
Auto, sound active, manual control and master/slave modes
Built-in ring colour macros and programs
Forward facing show modes
Pan/tilt auto correction
16-Bit pan/tilt positioning
Pan: 540°, Tilt: 220°
0 - 100% dimming
4 dimming curves: Linear, square law, inverse square law and S-curve
Variable strobe

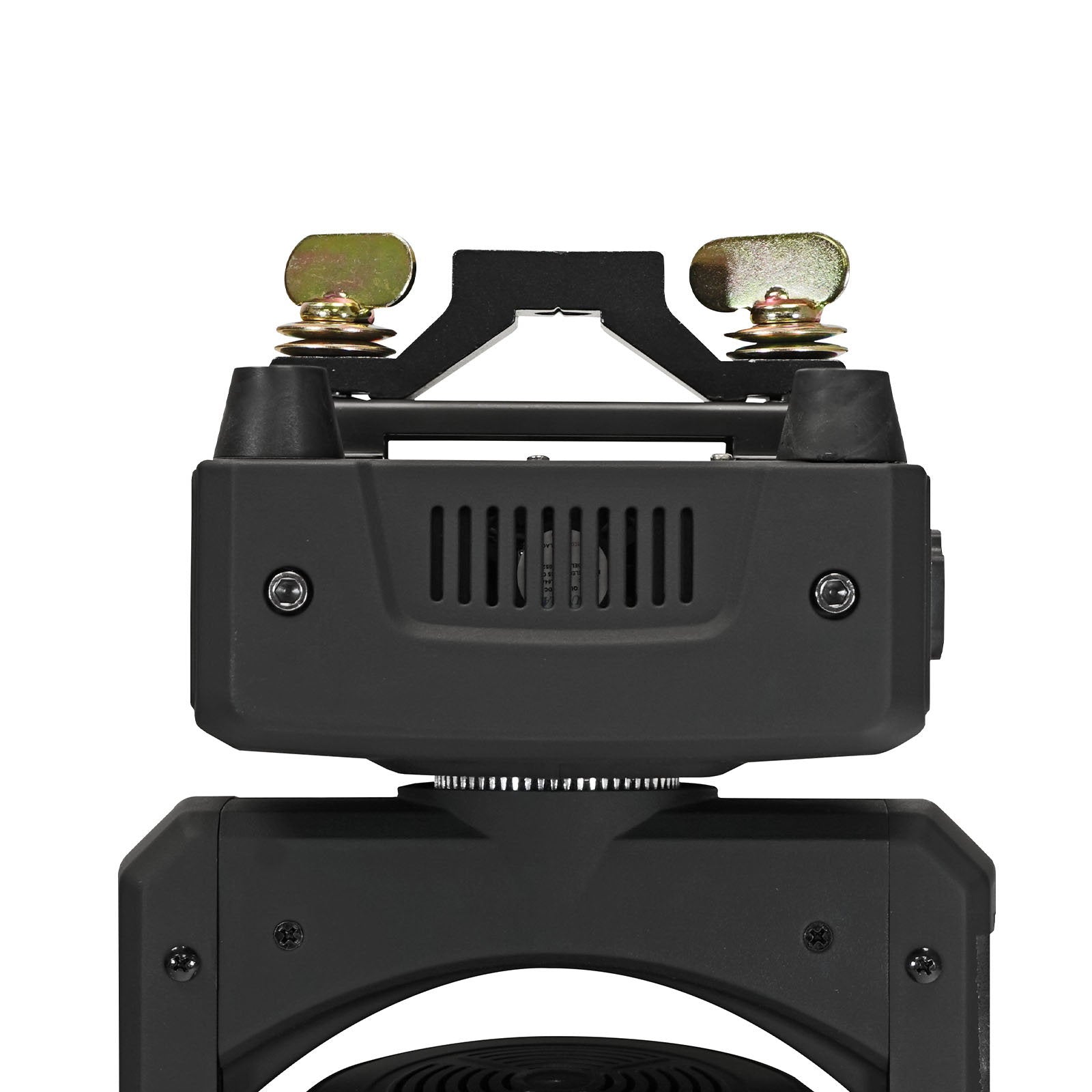

Quick release omega clamp included
4 button menu with LED display

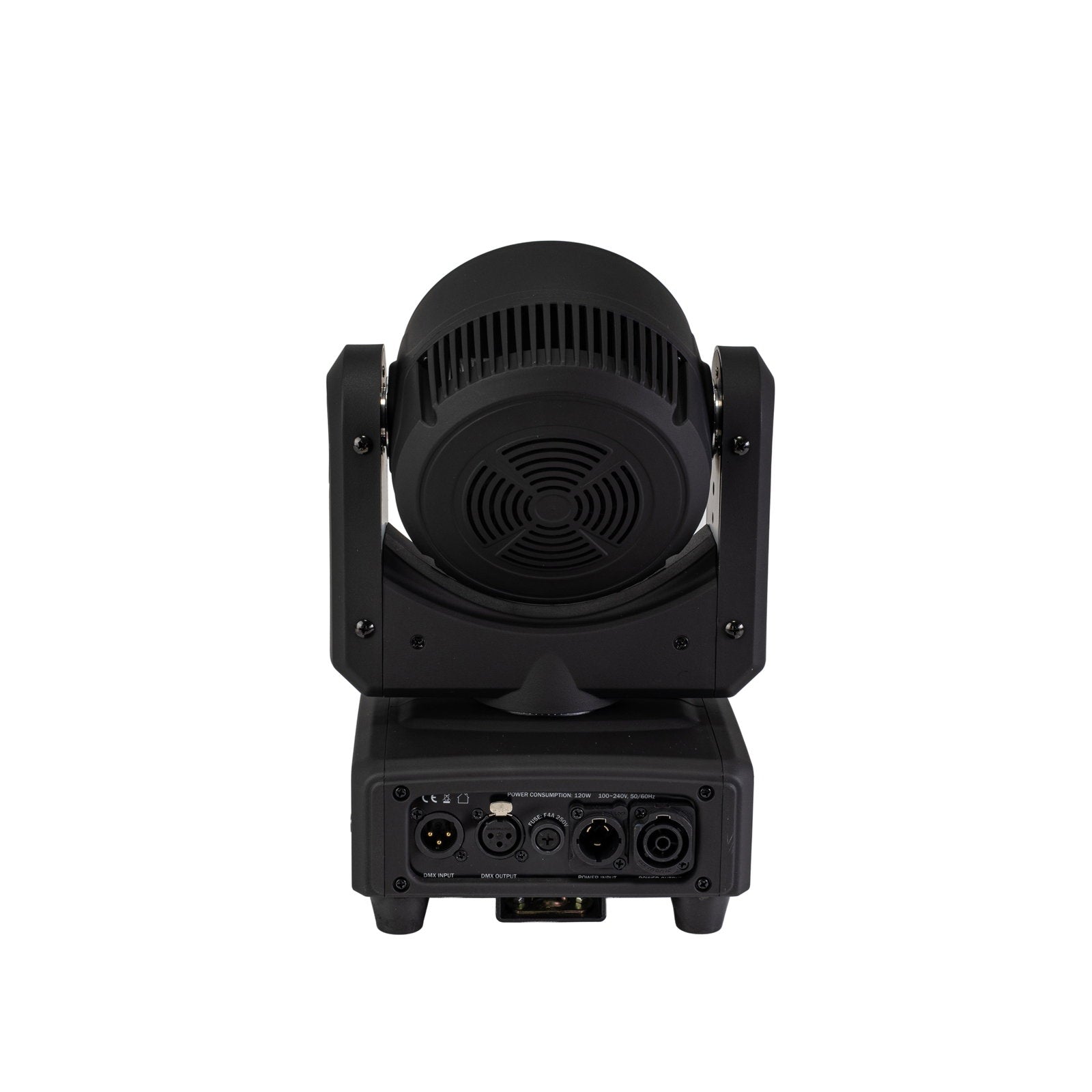

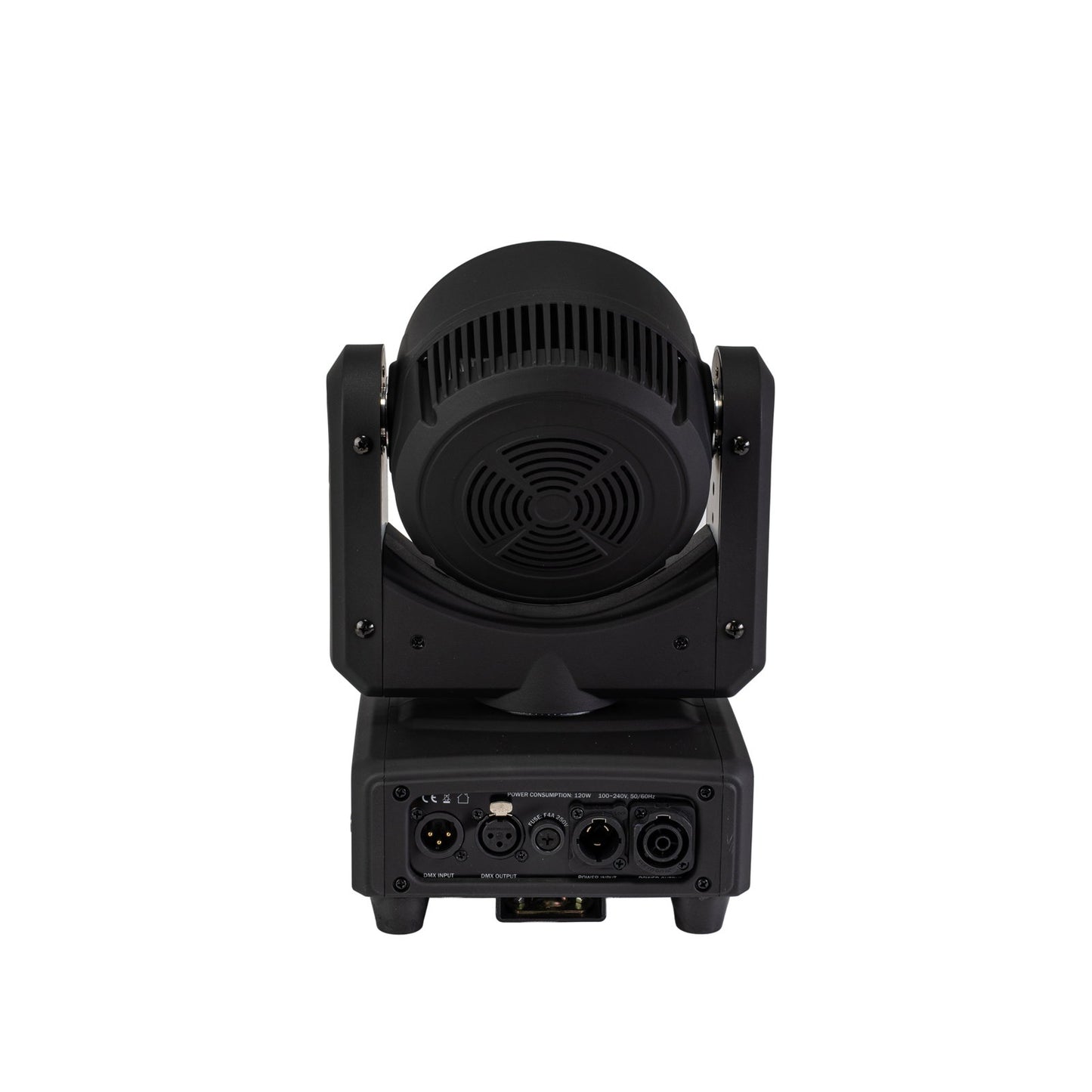

PowerTwist TR1 input/output
3-Pin XLR input/output
Fan cooled
Power consumption: 120W
Power supply: 100~240V, 50/60Hz
Fuse: F4A 250V
Dimensions (H x W x D): 292 x 204 x 162mm
Weight: 4kg
