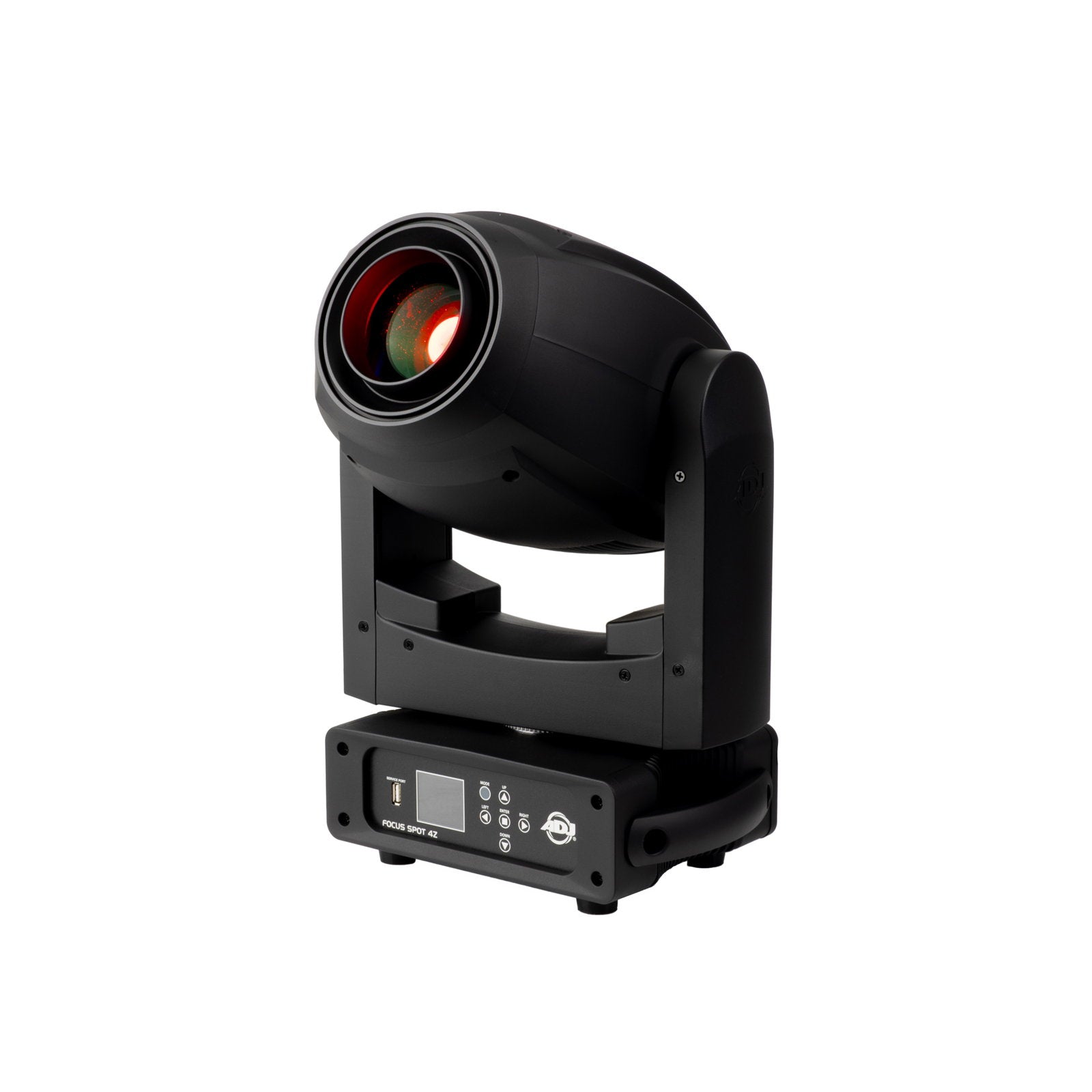

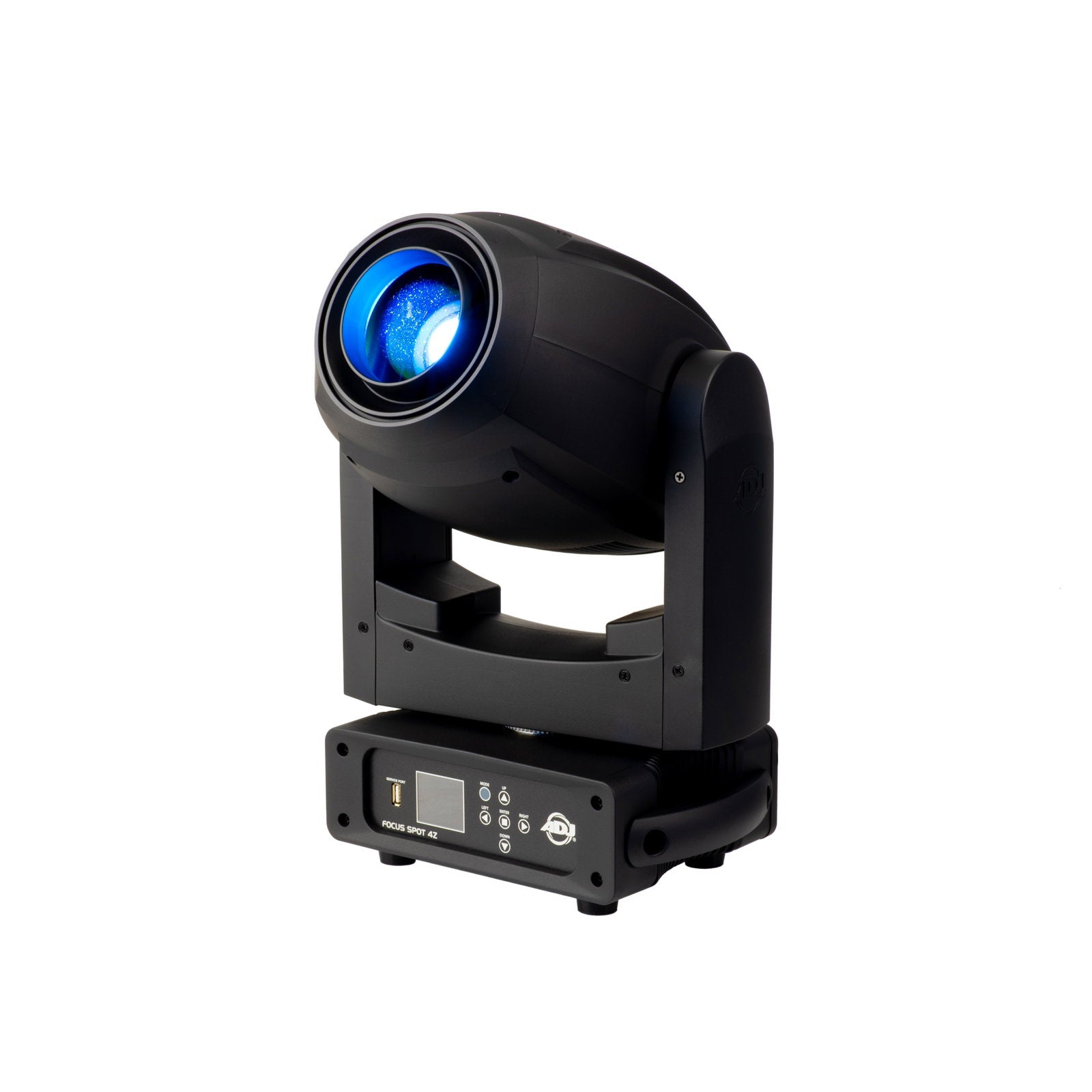

The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS 8 vibrant colours plus white and 2 prism wheels (one 5-facet linear and one 6-facet circular).

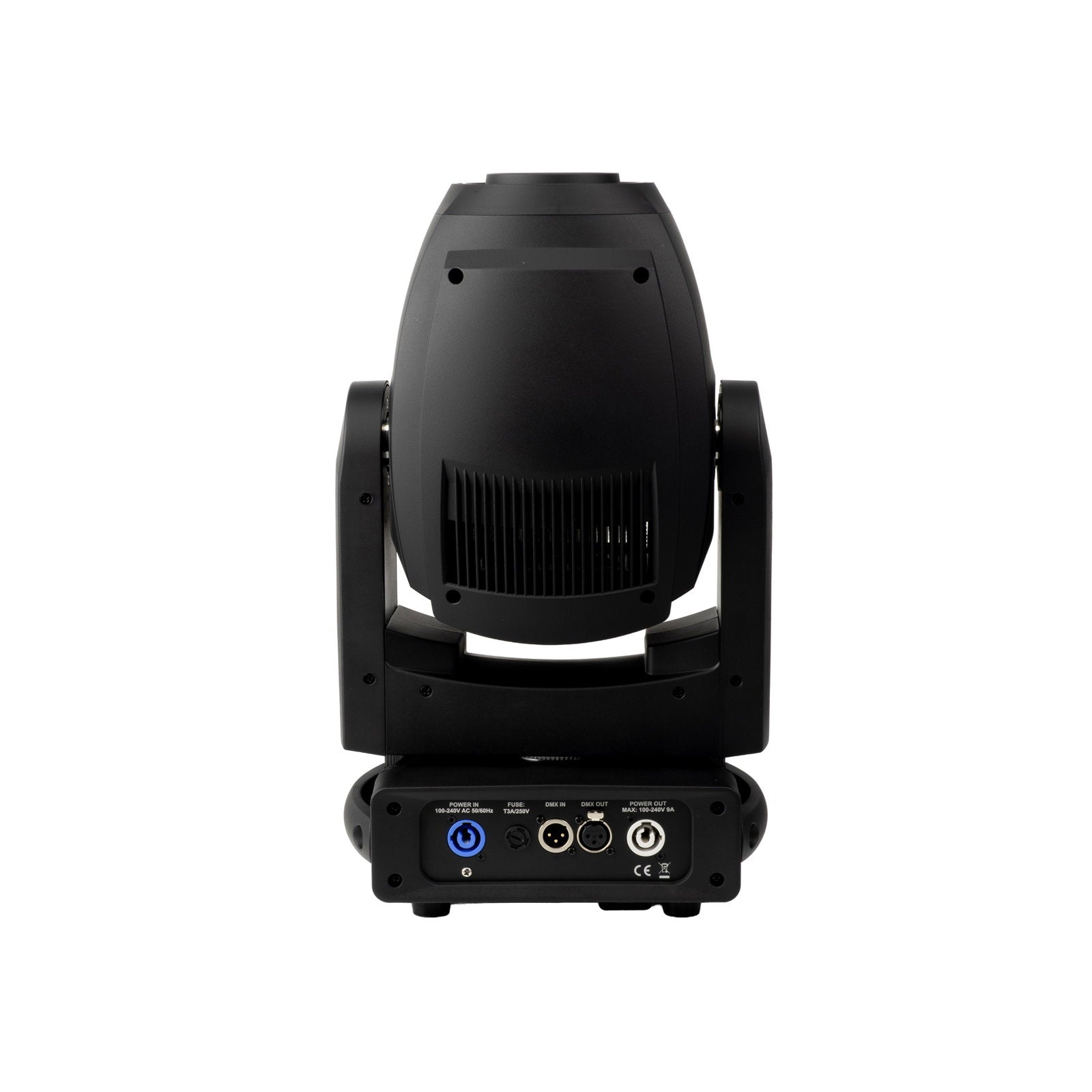

The Focus Spot 4Z has Locking Power In and out connectors to daisy chain the power as well as Locking 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt multiple DMX control modes and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight compact foot print (18-inch high and one 23 pounds).
Features:
2 year warranty
1 x 200W white LED (24,000K)
Adjustable beam angle: 11°-22°
Lumens: 7,000
CRI: 76
Refresh rate: 900Hz-25kHz
Motorised zoom and focus
6 facet circular rotating indexable prism plus 5 facet linear rotating indexable prism
Gobo wheel: 6 rotating, indexable, replaceable gobos + open
Colour wheel: 8 dichroic colours + open
DMX channels: 16/18 or 22 selectable
Manual control and primary/secondary modes plus built-in programs
Pan/tilt auto correction
16-Bit pan/tilt positioning
Pan: 540° or 630° selectable, Tilt: 270°
0 – 100% dimming
6 dimming modes: Standard, stage, TV, architectural, theatre and stage 2
Variable strobe
Quick release omega clamps included
RDM (Remote Device Management)
6 button menu with LCD display
Display battery backup for offline configuration
PowerTwist input/output
3-Pin XLR input/output
3 selectable fan modes (Auto, low and high)
USB port (firmware updates)
Fan cooled
