W Audio have designed the EPX Series power amplifiers to work perfectly with most loudspeaker systems. These power amplifiers feature several power outputs all with extended reliability and superior stability for a wide range of applications.
Features:
2 x 400Wrms @ 8Ω
2 x 600Wrms @ 4Ω
Bridge 1200Wrms @ 8Ω
Frequency response: 20Hz to 20kHz
Crossover frequency: High pass - 500Hz, low pass - 100Hz
Input sensitivity: 0.775V / 1.0V / 1.44V
Protection circuits: Soft start, limit, thermal, short circuit, overload, DC fault protection, AC power supply fuse and circuit breaker
LED indicators: Power, protect, clip, stereo, parallel and bridge

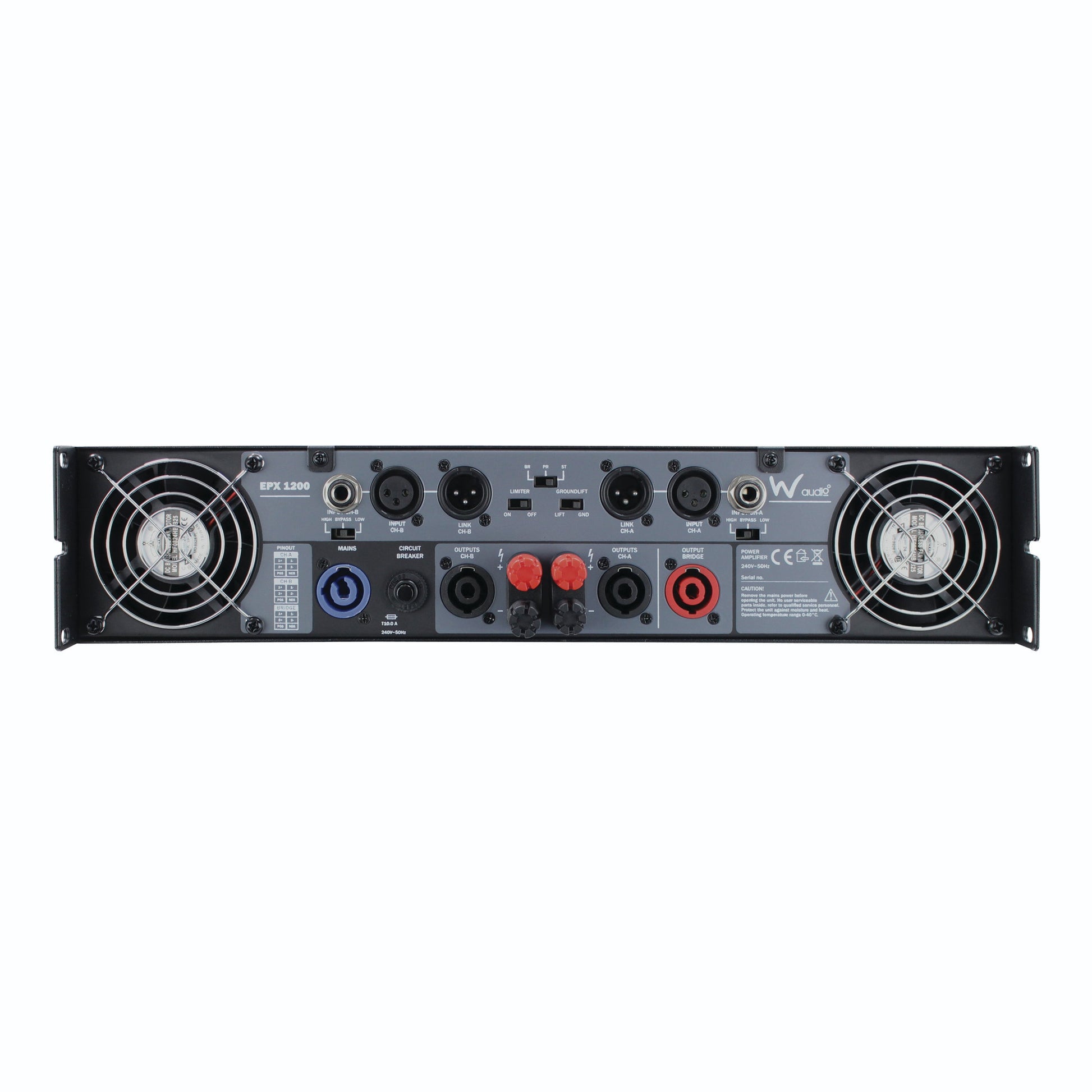

Input connections: 2 x XLR sockets, 2 x 1/4” jack sockets, 1 x powerCON mains input
Output connections: 2 x speakON connectors, 2 pairs of binding posts, 1 x speakON bridge connector
Additional features: Switchable stereo, parallel & bridge. High pass & low pass filters, limiter and ground lift
Power supply: AC 240V/50Hz
Dimensions (H x W x D): 87 x 481 x 450mm
Weight: 14.8kg
