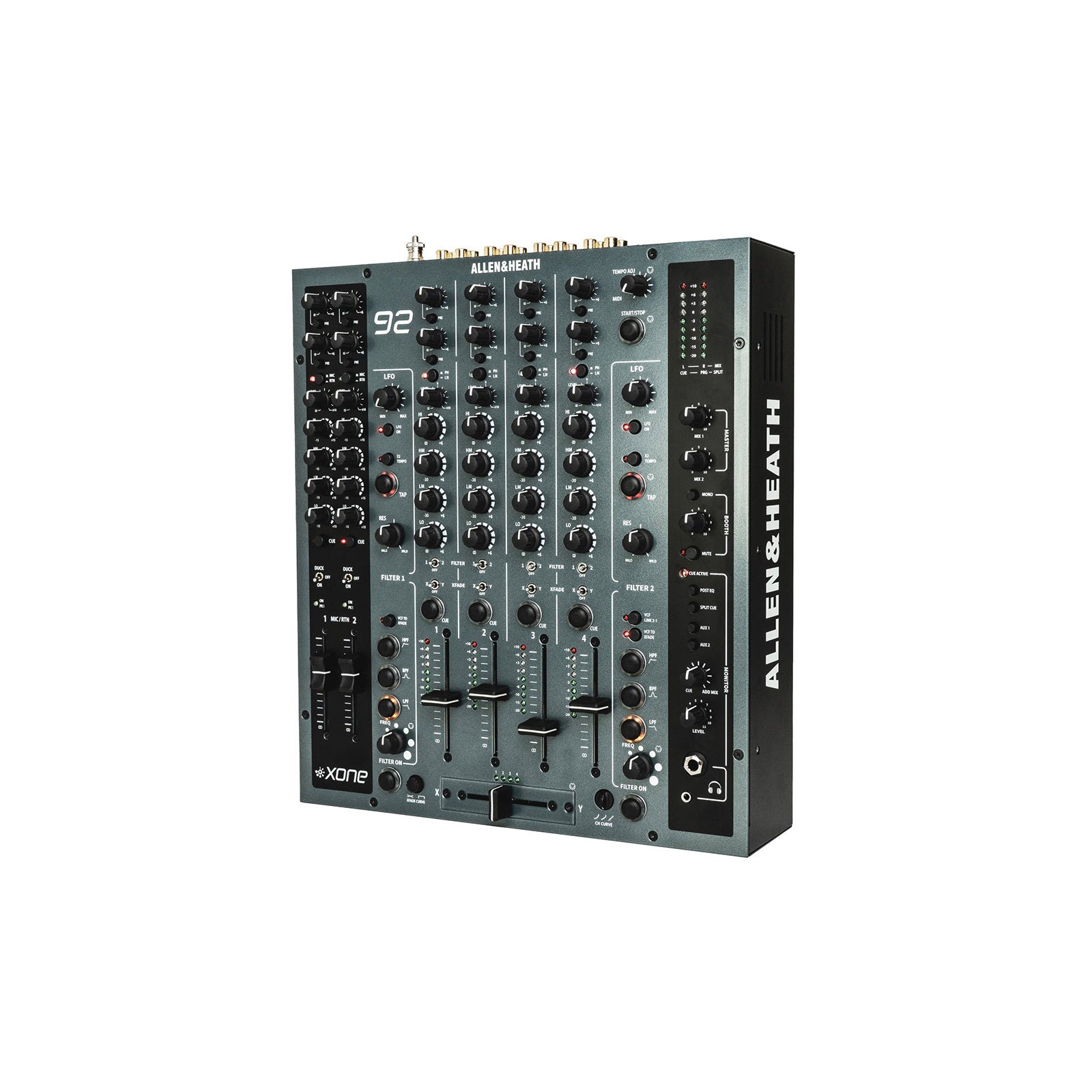

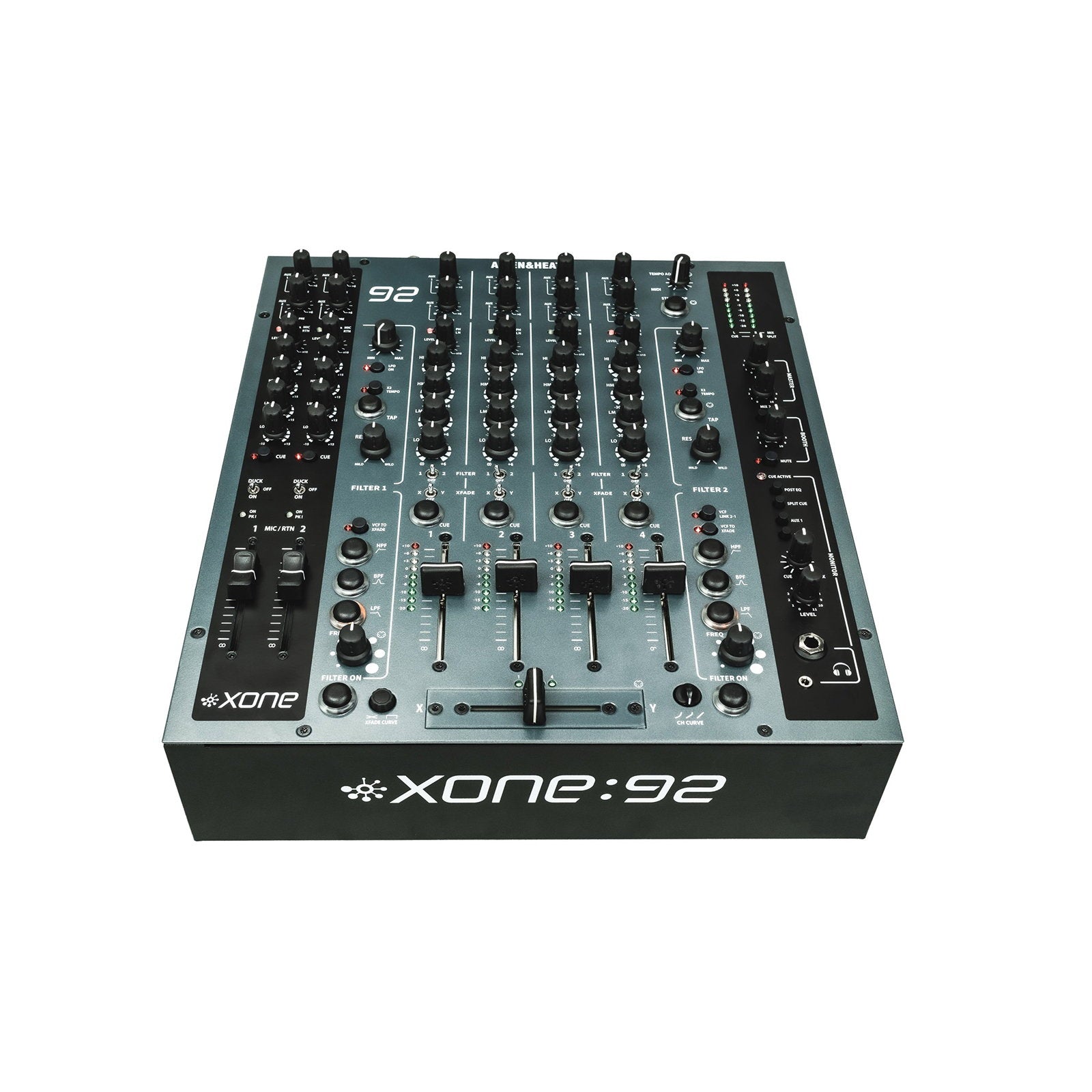

The Allen & Heath Xone:92 Mk2 is a 4+2 channel analogue DJ mixer with 4 phono/line channels 2 mic/line channels dual analogue filters precision 4-band EQ control a custom mini innoFADER Pro crossfader and MIDI output.
Features:
4 Phono/Line Channels + 2 Mic/Line Channels
100% analogue circuitry and mix bus summing
Dual analogue Filters with silent switching
Precision 4-band EQ control
Custom mini innoFADERĀ® Pro for smoother mixing
Updated storm grey colourway and refocused UV legend
New 3-way, global Channel fader curve switch
Improved Channel 1-4 Input Level and source-matching
Refined Xone:VCF tapers for enhanced control
Optimized RIAA preamps
Removable dual-ground adaptor
Rear panel Mic clean feed switches
Model: XONE:922
Type: Analogue
Channels: 6+2
EQ: 4-Band: CH 1-4, MIC/RTN 1, MIC/RTN 2
Phono Inputs: 4 x RCA: CH 1-4
Stereo Line Inputs: 4 x RCA [CH 1-4]
Mic Input: 2 x XLR [MIC 1 / MIC 2]
MIX 1 Output: 1 x XLR [Balanced]
MIX 2 Output: 1 x 1/4" TRS [Unbalanced]
BOOTH Output: 1 x 1/4" TRS [Unbalanced]
RECORD Output: 1 x RCA [Unbalanced]
Aux Sends: 2 x CH 1-4, MIC/RTN 1, MIC/RTN 2 [selectable Pre/Post]
Filters: 2 x Stereo analogue Voltage Controlled Filters
Filters: HPF / BPF / LPF Response Select, ON/OFF [soft switched]
Channel 1-4 Faders: 60mm linear Voltage Controlled Amplifier
Cross Fader: mini innoFADER Pro standard, 45mm linear VCA, User replaceable
MIDI Assignable: Yes: MIDI CC, MIDI Note ON/OFF
MIDI Out: 1 x 5-pin DIN
Power Supply: Internal switch mode power unit [SMPS] with auto sensing mains input
AC Mains: 100 to 240V AC, 50/60Hz
Consumption: 30W max
