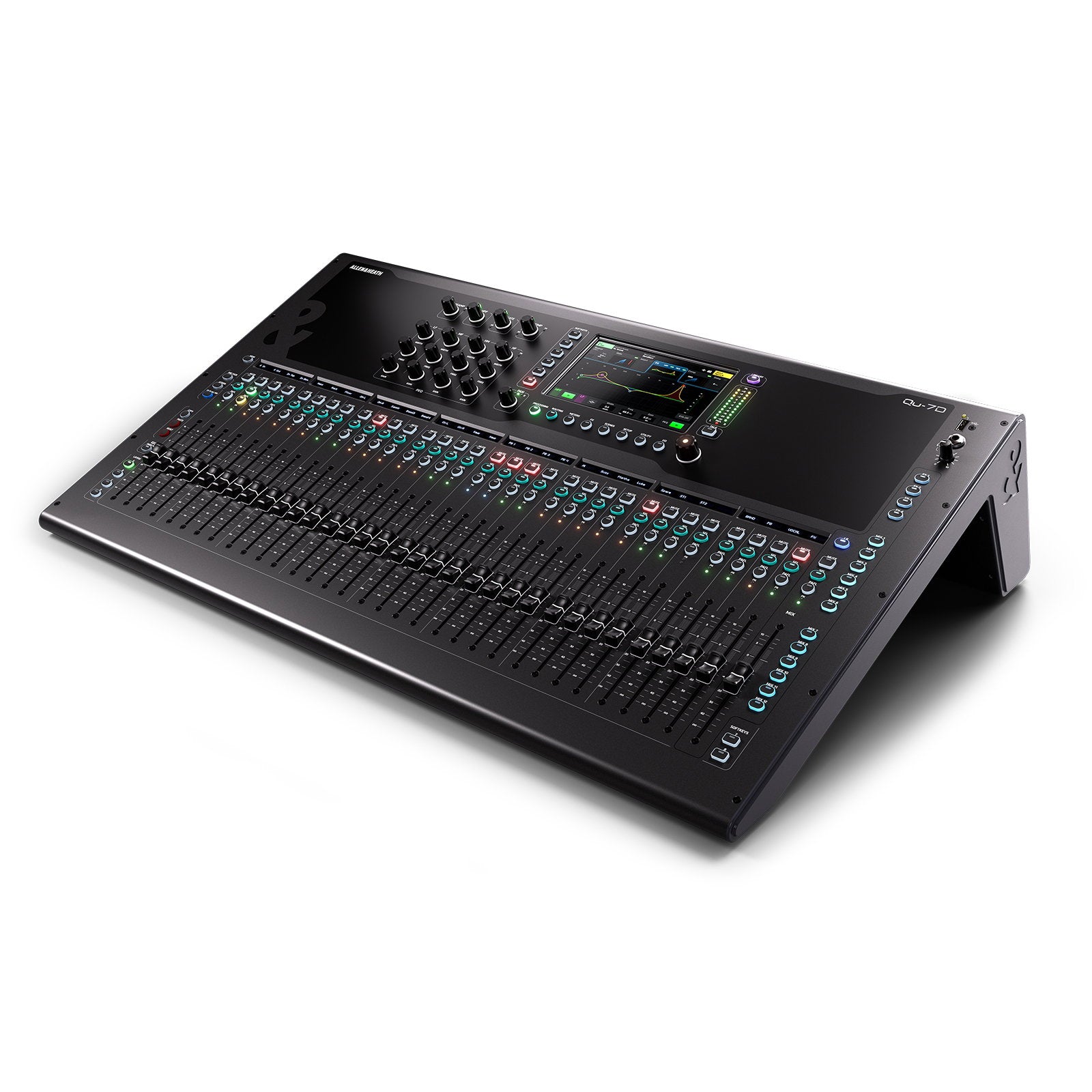

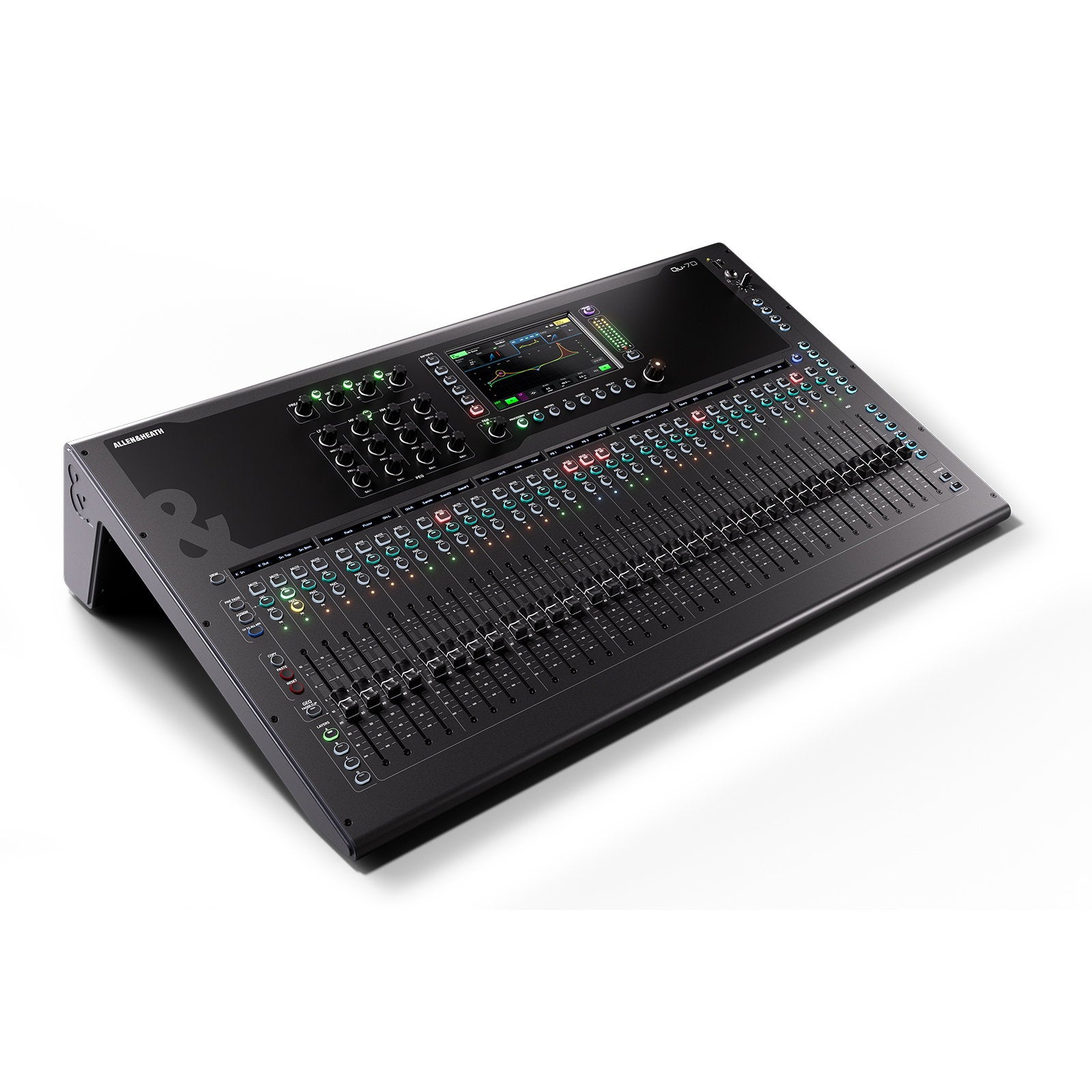

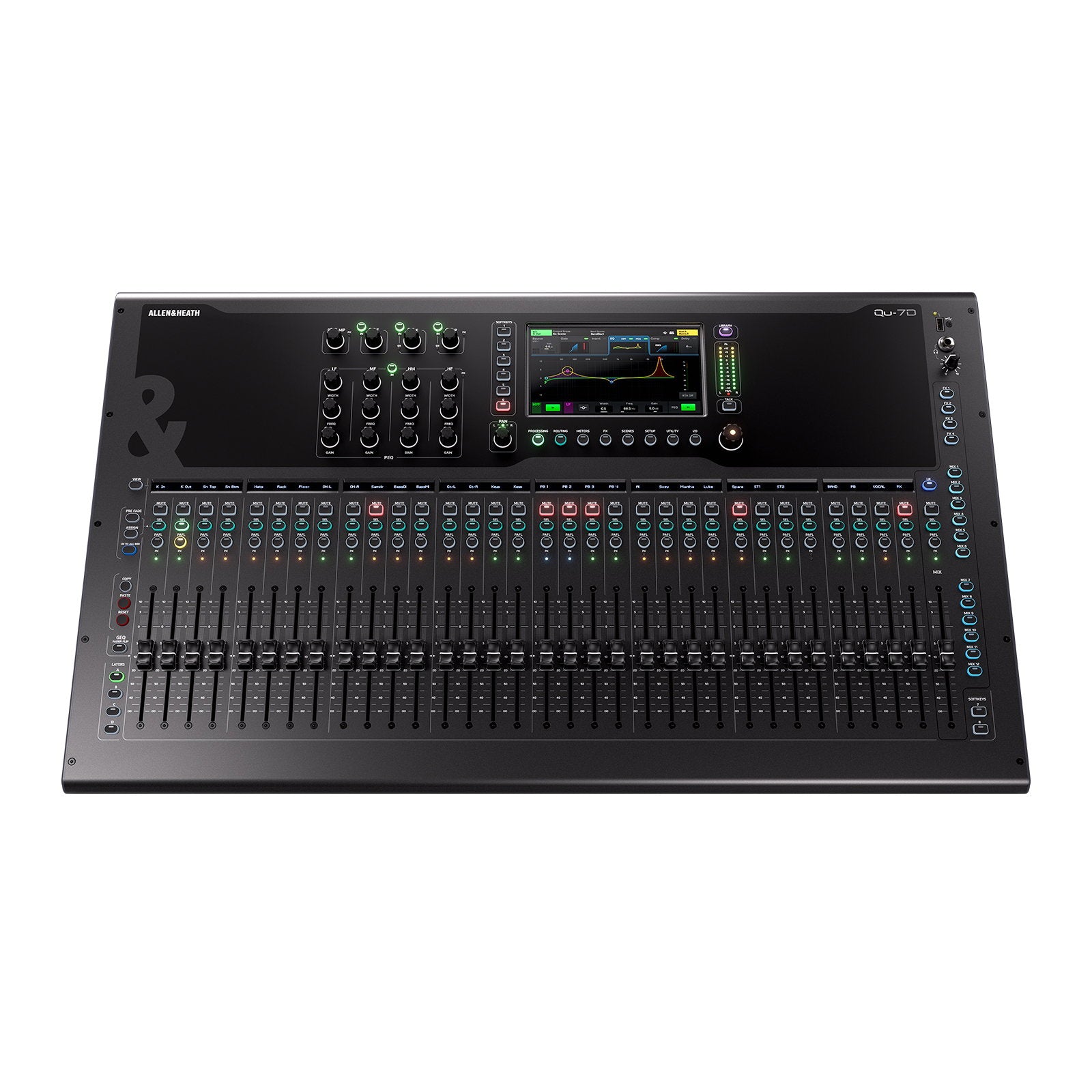

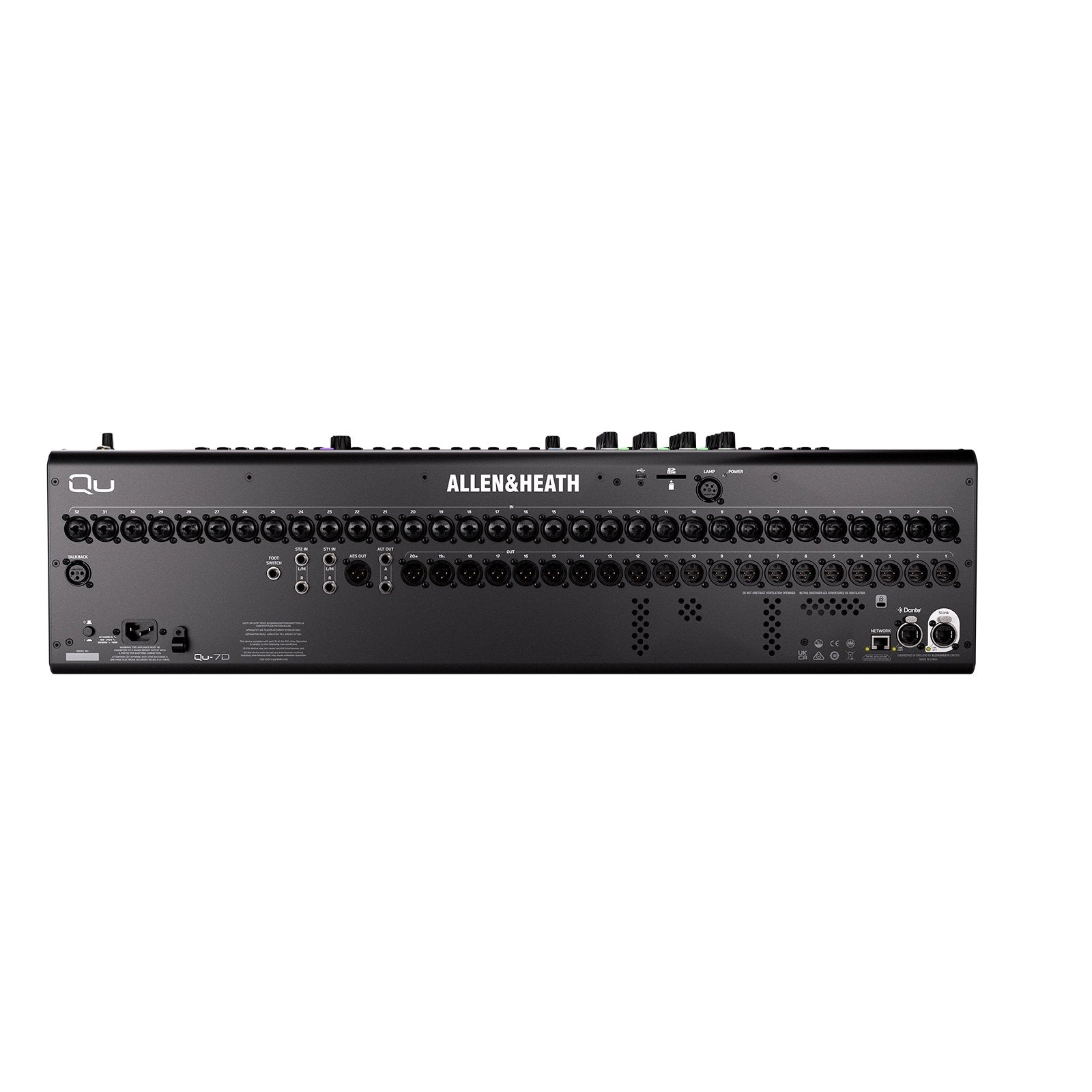

Combining the power of the Qu-7 digital mixer with a built-in 16x16 Dante interface the Allen & Heath Qu-7D is designed for large-scale AV and install applications requiring networked audio. With 32 inputs 33 motorised faders DEEP Processing and integrated multitrack recording it’s the complete professional solution.
Features:
16x16 Dante interface (48/96kHz)
32 mic/line inputs and 20 XLR outputs
33 motorised faders and 7” touchscreen
DEEP Processing and 6 FX engines
USB-C and SD multitrack recording
SLink port for expansion
Customisable workflow with 4 layers
Dante: 16x16 channels via EtherCon
Input Channels: 32 mono, 3 stereo
FX Engines: 6 with stereo returns
USB-C Interface: 32x32 channels
SD Card: 16x16 @96kHz, 32x32 @48kHz
Dimensions: 788mm x 500mm x 186mm
Weight: 16.7kg
