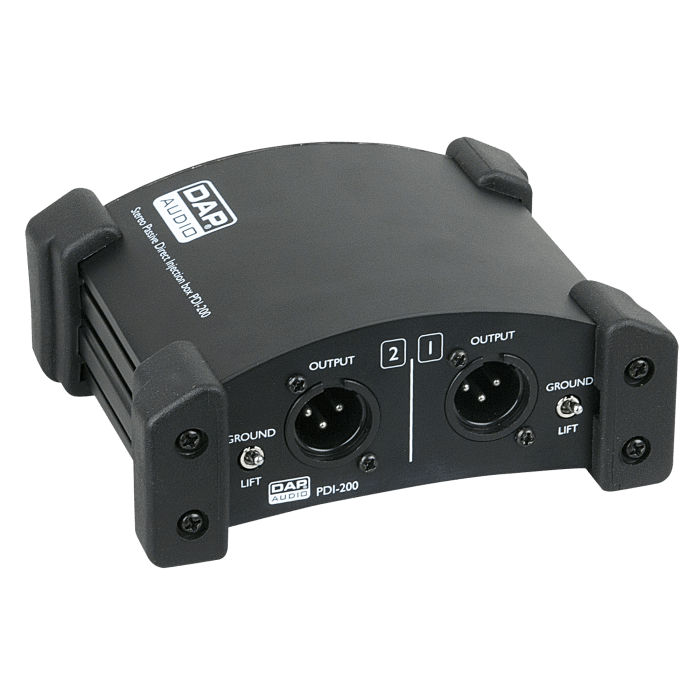

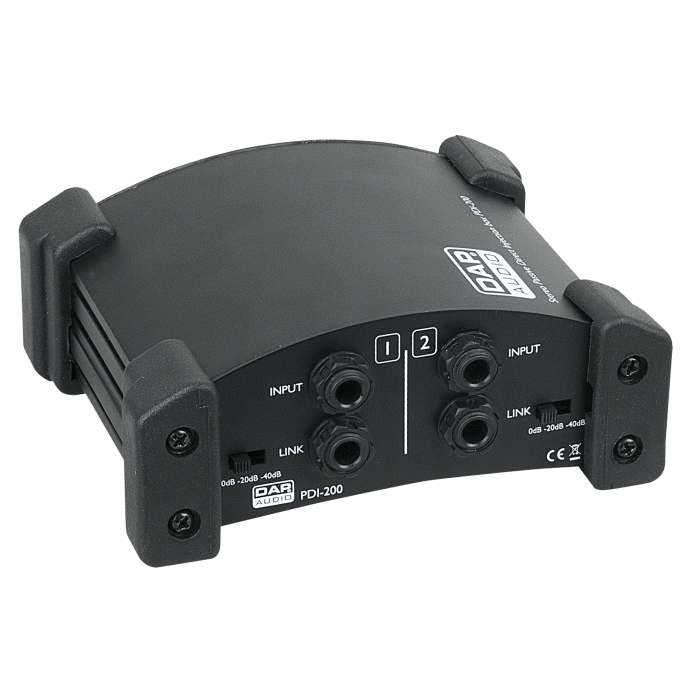

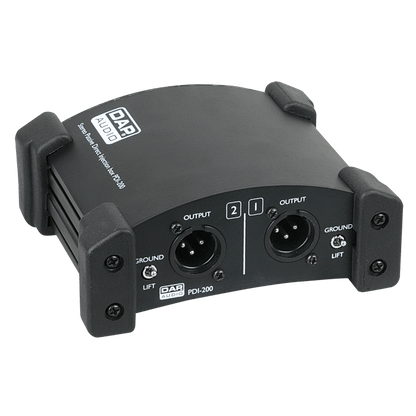

DAP PDI-200

2x 6.3 mm TS Jack in, 2x balanced XLR out
Prevents ground loops, hum and buzz
Road proof housing with rubber feet
Low distortion
No power supply needed

The DAP PDI-200 is a two-channel passive direct injection box. It converts a HI-Z signal into a LO-Z signal. You do not need a battery or phantom power for this direct box.

It is suitable for a wide array of applications, great for keyboard signals, acoustic & electric guitar signals and any other instrument signals that need to be plugged into a snake on stage. In addition, it has a 0/20/40 dB attenuation switch.

Specifications:

Inputs
Mono Inputs 2
Mono Input Connector TS unbalanced 6.3 mm
Mono Input Impedance 50000 ?

Outputs
Main Outputs 2
Main Output Connector 3-pin XLR, TS unbalanced 6.3 mm
Main Output Impedance 500 ?

Audio Specifications
THD Level < 0.003 %
Signal-to-noise Ratio > 95 dB
Crosstalk 96 dBu
Frequency Response Minimum 30 Hz
Frequency Response Maximum 50000 Hz
Phantom Power No

Mechanical Specifications
Height (mm) 55 mm (2.165?)
Width (mm) 140 mm (5.512?)
Length (mm) 110 mm (4.331?)
Housing Aluminium
Weight 1.1 kg (2.425 lb)
IP Rating IP20 (indoor use only)
Colour Black
