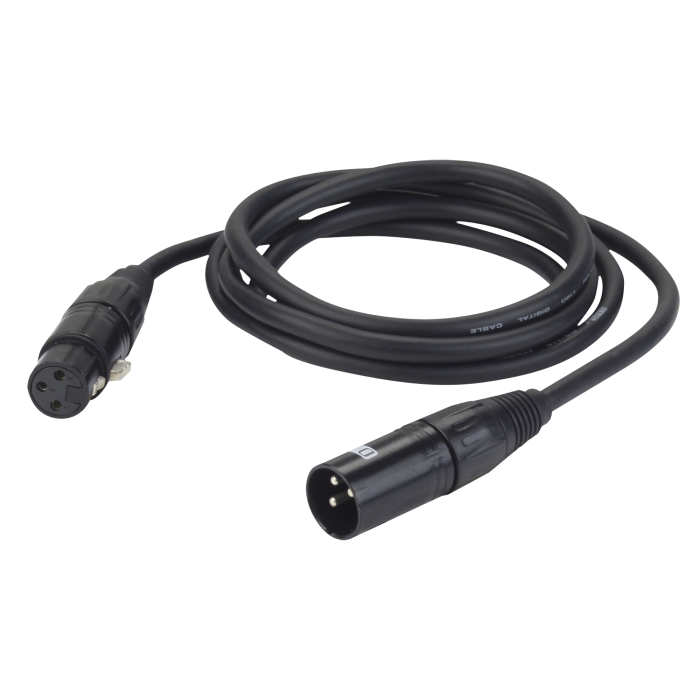

DAP FL09 - DMX/M 3P to DMX/F 3P

This 110-ohm DMX cable is designed for the optimal transmission of AES/EBU digital signals.

Specifications:

Electrical Specifications and Connections:
Connector 1            DMX 3P
Connector 2              DMX 3P
Impedance                110 Ω
Pins              3
Outer Cable Diameter                6 mm (0.236″)

Mechanical Specifications:
Height (mm)             20 mm (0.787″)
Width (mm)              20 mm (0.787″)
Weight                  0.1 kg (0.22 lb)
IP Rating               IP20 (indoor use only)
Material                Metal
Colour                Black

Product Properties:
Locking Device           Latch
Contact Type               Nickel plated
Number of Pairs               1
1st Shield              Braided
Shield Resistance           2 Ω/km (3.22 Ω/mile)
Filler Material              Paper
Conductors            3
Conductor Construction               Stranded Core

Thermal Specifications:
Maximum Ambient Temperature          50 °C (122 °F)
Minimum Ambient Temperature           -20 °C (-4 °F)
