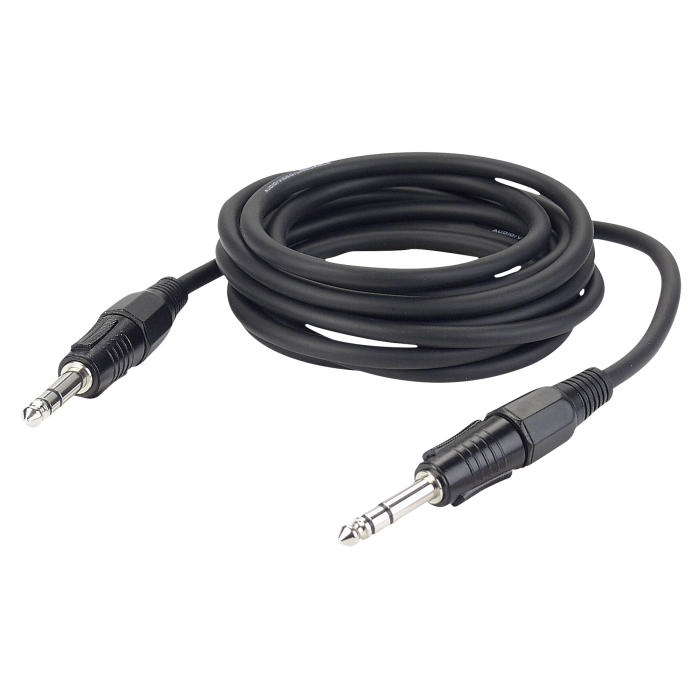

DAP FL07 - stereo Jack to stereo Jack

Specifications:

Electrical Specifications and Connections:
Flashover Voltage          30 V
Impedance                 110 Ω
Connector 1                   TRS 6.3 mm balanced
Connector 2                     TRS 6.3 mm balanced
Pins                 2
Conductor Resistance                   90 Ω/km (144.84 Ω/mile)
Conductor Capacitance                 60 pF/m (18.29 pF/ft)
Capacity Inner Conduct. Shield/Inner Conduct.              78 pF/m (23.77 pF/ft)
Outer Cable Diameter          6 mm (0.236″)
Outer Isolation Diameter               6 mm (0.236″)
Outer Isolation Type                 PVC

Mechanical Specifications:
Weight                 0.18 kg (0.397 lb)
Colour                 Black

Product Properties:
Contact Type              Copper
1st Shield              Conductive Plastic
2nd Shield                Oxygen Free Copper
Shield Resistance                25 Ω/km (40.23 Ω/mile)
Conductors              3

Thermal Specifications:
Maximum Ambient Temperature            60 °C (140 °F)
Minimum Ambient Temperature        -20 °C (-4 °F)
