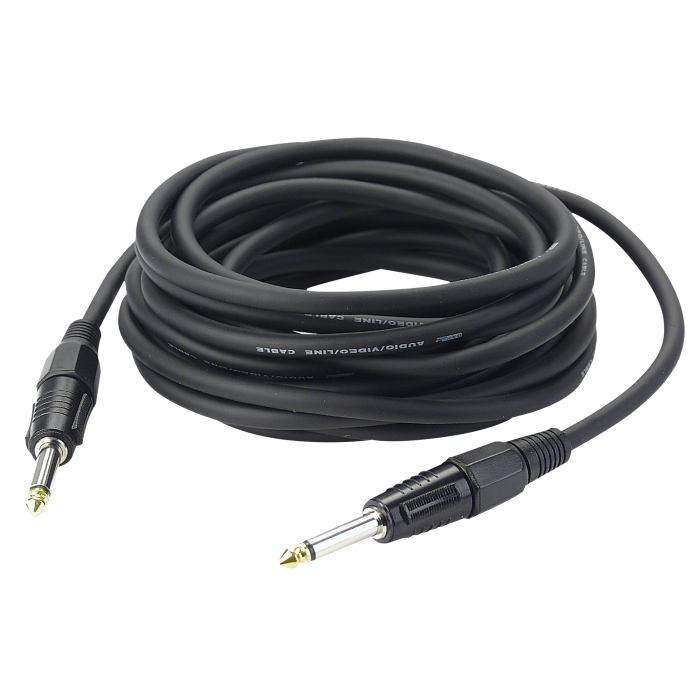

DAP FL06 - Jack mono to Jack mono

Specifications:

Electrical Specifications and Connections:
Flashover Voltage          30 V
Impedance              50 Ω
Connector 1              TS 6.3 mm unbalanced
Connector 2              TS 6.3 mm unbalanced
Pins             2
Conductor Resistance             80 Ω/km (128.74 Ω/mile)
Conductor Capacitance            65 pF/m (19.81 pF/ft)
Capacity Inner Conduct. Shield/Inner Conduct.          78 pF/m (23.77 pF/ft)
Outer Cable Diameter             6 mm (0.236″)
Outer Isolation Diameter          6 mm (0.236″)
Outer Isolation Type              PVC
Mechanical Specifications
Weight             0.404 kg (0.891 lb)
Colour            Black

Product Properties:
Contact Type             Copper
1st Shield          Conductive Plastic
2nd Shield        Oxygen Free Copper
Shield Resistance            25 Ω/km (40.23 Ω/mile)
Conductors           2

Thermal Specifications:
Maximum Ambient Temperature         60 °C (140 °F)
Minimum Ambient Temperature          -20 °C (-4 °F)
