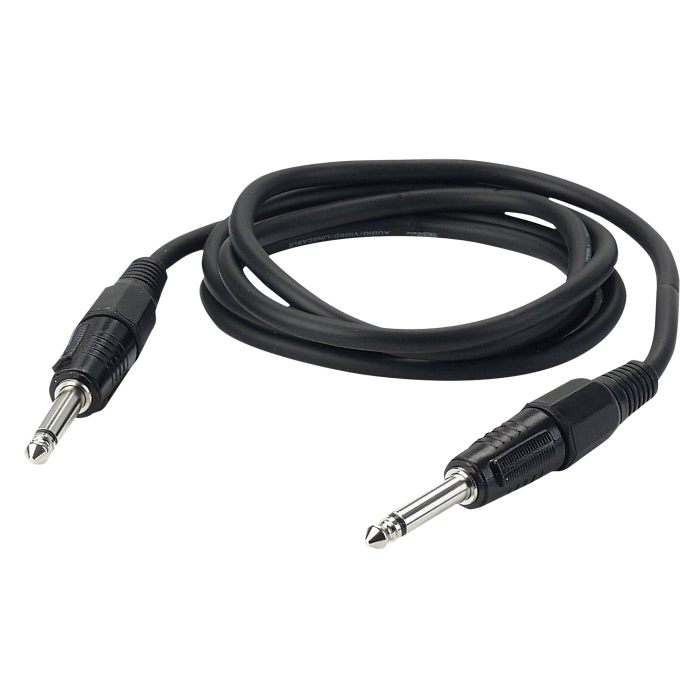

DAP FL05 - Jack mono to Jack mono

Specifications:

Electrical Specifications and Connections:
Flashover Voltage    30 V
Impedance              50 Ω
Connector 1                TS 6.3 mm unbalanced
Connector 2                TS 6.3 mm unbalanced
Pins                2
Conductor Resistance                   90 Ω/km (144.84 Ω/mile)
Conductor Capacitance                 65 pF/m (19.81 pF/ft)
Capacity Inner Conduct. Shield/Inner Conduct.                78 pF/m (23.77 pF/ft)
Outer Cable Diameter                6 mm (0.236″)
Outer Isolation Diameter                6 mm (0.236″)
Outer Isolation Type                   PVC

Mechanical Specifications:
Weight                0.128 kg (0.282 lb)
Colour                 Black

Product Properties:
Contact Type                Copper
1st Shield                    Conductive Plastic
2nd Shield                   Oxygen Free Copper
Shield Resistance                25 Ω/km (40.23 Ω/mile)
Conductors               3

Thermal Specifications:
Maximum Ambient Temperature             60 °C (140 °F)
Minimum Ambient Temperature              -20 °C (-4 °F)
