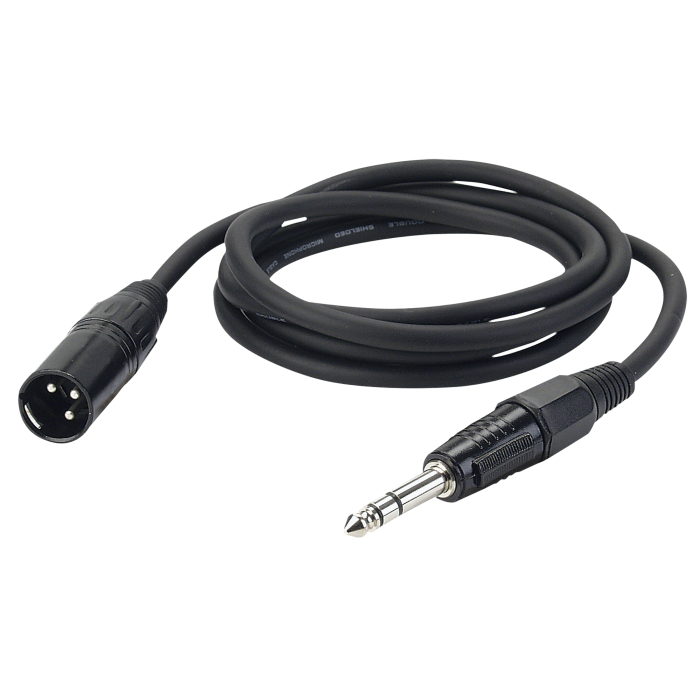

DAP FL04 - bal. XLR/M 3P to Jack stereo

Specifications:

Electrical Specifications and Connections:
Flashover Voltage           30 V
Impedance             110 Ω
Connector 1             XLR 3P
Connector 2               TRS 6.3 mm balanced
Pins            3
Conductor Resistance             90 Ω/km (144.84 Ω/mile)
Conductor Capacitance            60 pF/m (18.29 pF/ft)
Capacity Inner Conduct. Shield/Inner Conduct.               78 pF/m (23.77 pF/ft)
Outer Cable Diameter             6 mm (0.236″)
Outer Isolation Diameter            6 mm (0.236″)
Outer Isolation Type            PVC

Mechanical Specifications:
Weight              0.128 kg (0.282 lb)
Colour              Blue

Product Properties:
Contact Type             Copper
1st Shield            Conductive Plastic
2nd Shield             Oxygen Free Copper
Shield Resistance            25 Ω/km (40.23 Ω/mile)
Conductors            3

Thermal Specifications:
Maximum Ambient Temperature          60 °C (140 °F)
Minimum Ambient Temperature           -20 °C (-4 °F)
