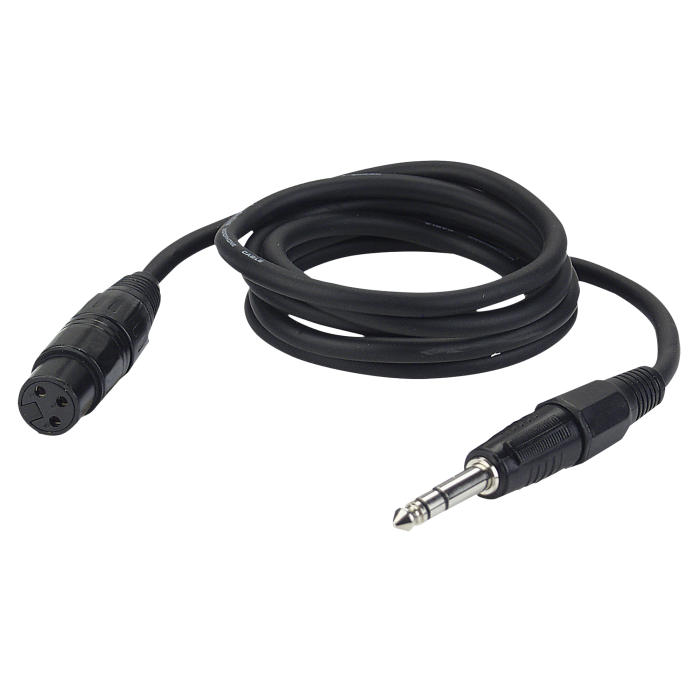

DAP FL03 - bal. XLR/F 3P to Jack stereo

Specifications:

Electrical Specifications and Connections:
Flashover Voltage              30 V
Impedance             110 Ω
Connector 1                XLR 3P
Connector 2               TRS 6.3 mm balanced
Pins        3
Conductor Resistance       90 Ω/km (144.84 Ω/mile)
Conductor Capacitance            60 pF/m (18.29 pF/ft)
Capacity Inner Conduct. Shield/Inner Conduct.               78 pF/m (23.77 pF/ft)
Outer Cable Diameter               6 mm (0.236″)
Outer Isolation Diameter              6 mm (0.236″)
Outer Isolation Type             PVC

Mechanical Specifications:
Weight              0.334 kg (0.736 lb)
Colour             Blue

Product Properties:
Contact Type            Copper
1st Shield           Conductive Plastic
2nd Shield           Oxygen Free Copper
Shield Resistance         25 Ω/km (40.23 Ω/mile)
Conductors          3

Thermal Specifications:
Maximum Ambient Temperature          60 °C (140 °F)
Minimum Ambient Temperature           -20 °C (-4 °F)
