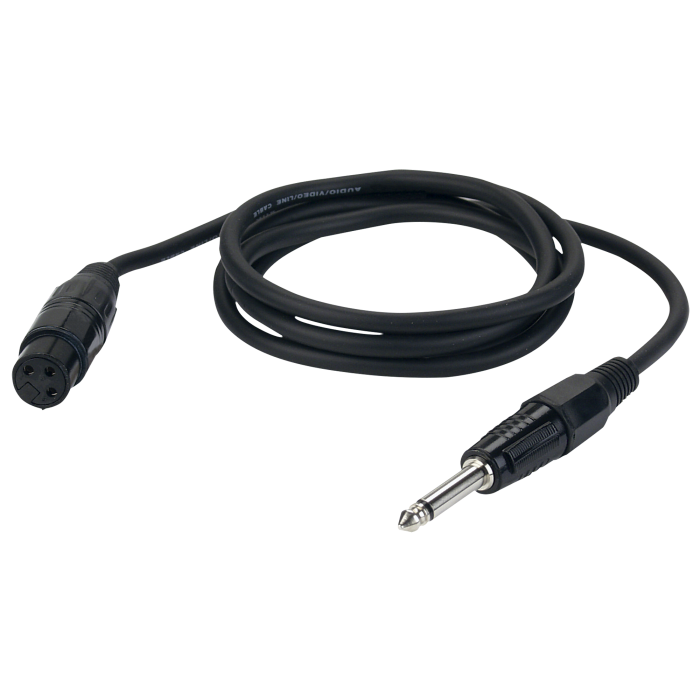

DAP FL02 - unbal. XLR/F 3P to Jack mono

Specifications:

Electrical Specifications and Connections:
Flashover Voltage           30 V
Impedance             110 Ω
Connector 1             XLR 3P
Connector 2               TS 6.3 mm unbalanced
Pins            3
Conductor Resistance            90 Ω/km (144.84 Ω/mile)
Conductor Capacitance              60 pF/m (18.29 pF/ft)
Capacity Inner Conduct. Shield/Inner Conduct.              78 pF/m (23.77 pF/ft)
Outer Cable Diameter                6 mm (0.236″)
Outer Isolation Diameter             6 mm (0.236″)
Outer Isolation Type              PVC

Mechanical Specifications:
Weight              0.128 kg (0.282 lb)
Colour               Black

Product Properties:
Contact Type             Copper
1st Shield             Conductive Plastic
2nd Shield              Oxygen Free Copper
Shield Resistance             25 Ω/km (40.23 Ω/mile)
Conductors            3

Thermal Specifications:
Maximum Ambient Temperature            60 °C (140 °F)
Minimum Ambient Temperature            -20 °C (-4 °F)
