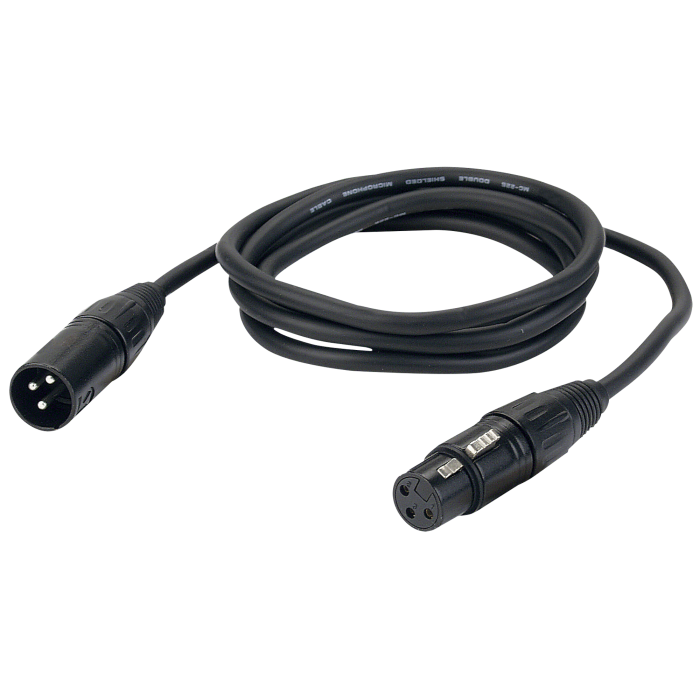

DAP FL01 - bal. XLR/M 3P to XLR/F 3P

The FL-01 is THE basic microphone cable or all-round use. The FL-01 has high quality specs featuring a low noise signal, a wide dynamic range, flexible and road-proof!

Specifications:

Electrical Specifications and Connections:
Flashover Voltage                  30 V
Impedance              110 Ω
Connector 1                 XLR 3P
Connector 2                XLR 3P
Cable Length         0.75 m
Pins              3
Conductor Resistance                90 Ω/km (144.84 Ω/mile)
Conductor Capacitance                    60 pF/m (18.29 pF/ft)
Capacity Inner Conduct. Shield/Inner Conduct.                   78 pF/m (23.77 pF/ft)
Outer Cable Diameter                  6 mm (0.236″)
Outer Isolation Diameter                  6 mm (0.236″)
Outer Isolation Type                PVC

Mechanical Specifications:
Weight               0.092 kg (0.203 lb)
Material                 PVC
Colour              Black

Product Properties:
Contact Type            Copper
1st Shield             Conductive Plastic
2nd Shield               Oxygen Free Copper
Shield Resistance               25 Ω/km (40.23 Ω/mile)
Conductors             3

Thermal Specifications:
Maximum Ambient Temperature            60 °C (140 °F)
Minimum Ambient Temperature          -20 °C (-4 °F)
