Dynamic microphone with LED status indication
Sync settings with the push of a button
Full-colour receiver LCD display
Working distance of up to 30 m
Up to 10 hours of use on a single pair of AA batteries

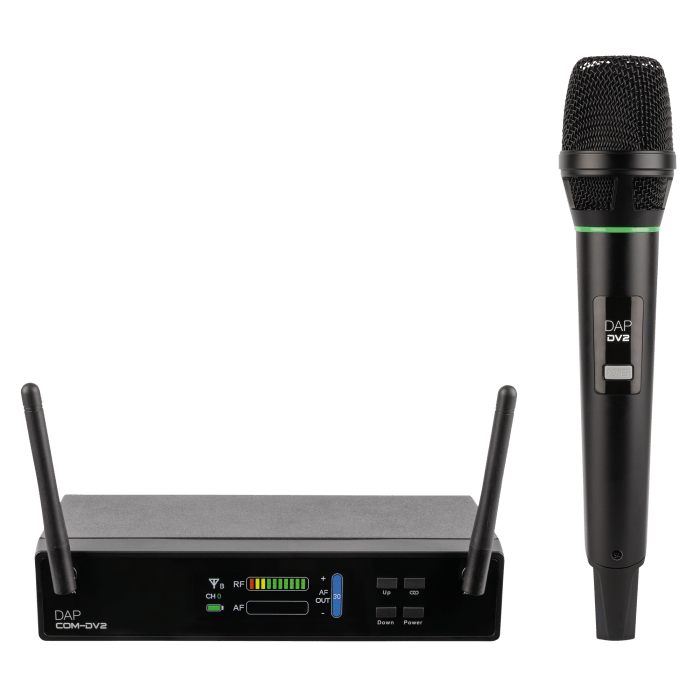

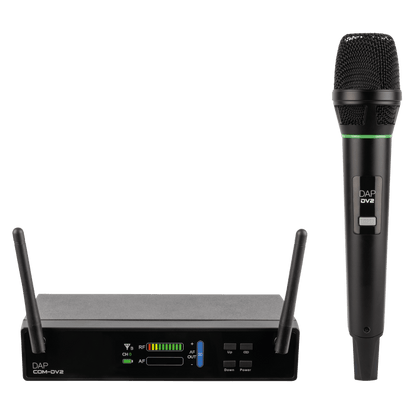

The DAP COM DV-2 is a wireless handheld microphone set operating in the licence-free 2.4-GHz band. The microphone features a dynamic head with 8 gain settings. An internal 24-bit/48-kHz converter prepares the audio signal for low-latency wireless transmission. The handheld microphone has an LED status indication ring that conveniently shows its current operating status. It can last up to 10 hours on a pair of AA batteries.

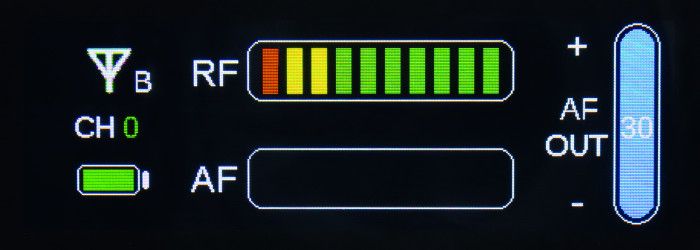

The receiver offers diversity with its two front antennas. It automatically searches for an interference-free RF band, and the handheld microphone can be synchronised with the receiver at the push of a button. The full-colour LCD display provides instant information on the status, showing which of the two antennas is in use, the operating channel, the battery level of the handheld microphone, the transmission signal power, the audio signal level and the output volume setting. Up to four systems can be used simultaneously.
Specifications:
Wireless Specifications:
Wireless Microphone Frequency Start 2404 MHz
Wireless Microphone Frequency End 2476 MHz
RF Power 10 mW
Audio Specifications:
Signal-to-noise Ratio > 90 dB
Audio Latency 3.6 ms
Microphone Type Dynamic
Frequency Response Minimum 20 Hz
Frequency Response Maximum 20000 Hz
Microphone On/Off Switch Yes

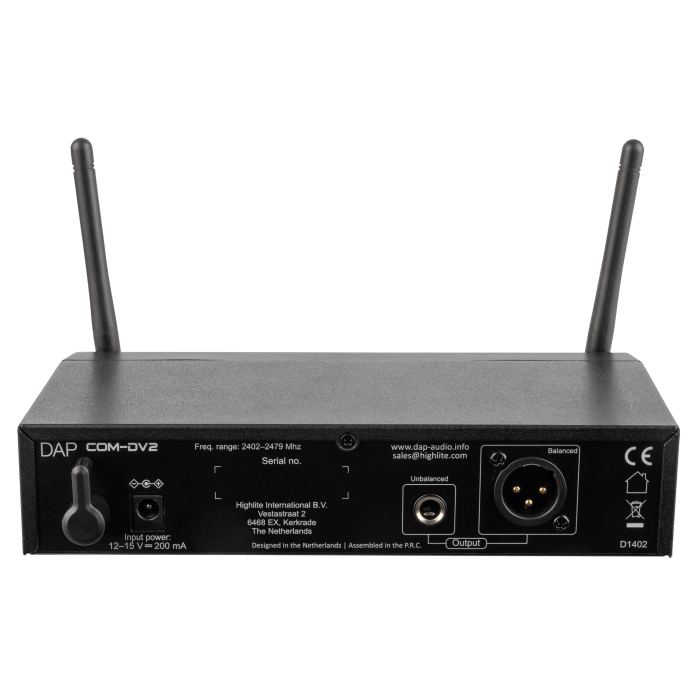

Outputs:
Main Outputs 1
Main Output Connector 3-pin XLR, TS unbalanced 6.3 mm
Battery:
Battery Type AA
Battery Voltage 1.5 V
Runtime @Full 12 h
Runtime Average 10 h
Internal Storage:
Channels 6
Control and Programming:
Display LCD
Display Size 1.9 "
Product Properties:
Transmitter Type Handheld
Receiver Type Single Receiver
LED Indicators Operation mode
Electrical Specifications and Connections:
Power Supply 100-240 V AC 50/60 Hz
Output voltage 12 V DC
Power Consumption 6 W
Power Connector In Low Voltage DC plug
Power Adapter:
Adapter type AC-DC adapter
Output voltage 12 V DC
Output current (A) 0.5 A
Output current DC (mA) 500 mA
Mechanical Specifications:
Height (mm) 42 mm (1.654″)
Width (mm) 197 mm (7.756″)
Length (mm) 106.1 mm (4.177″)
Transmitter Height (mm) 255 mm (10.039″)
Transmitter Width (mm) 51.3 mm (2.02″)
Transmitter Length (mm) 50 mm (1.969″)
Diameter 36.3 mm (1.429″)
Installation Depth (Excl. Connector) 123 mm (4.843″)
Housing Metal
Weight 0.49 kg (1.08 lb)
Transmitter Weight 0.33 kg (0.728 lb)
Colour Black
