Specifications:
Electrical Specifications and Connections

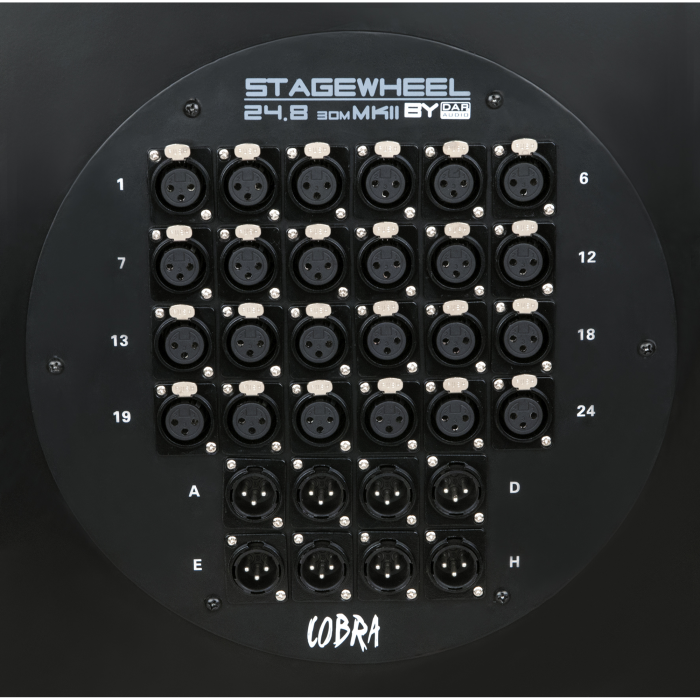

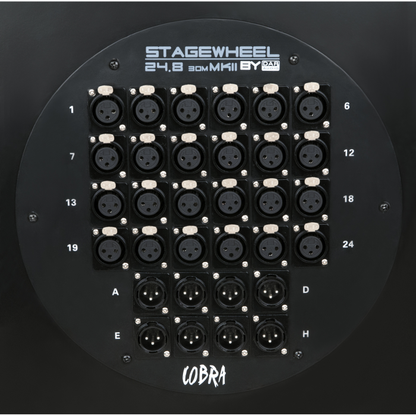

Connector 1 XLR 3P
Connector 2 XLR 3P
Cable Length 30 m
Pins 3
Inputs
Mono Inputs 24
Outputs
Main Outputs 8
Product Properties
Conductors 3
Number of Pairs 32

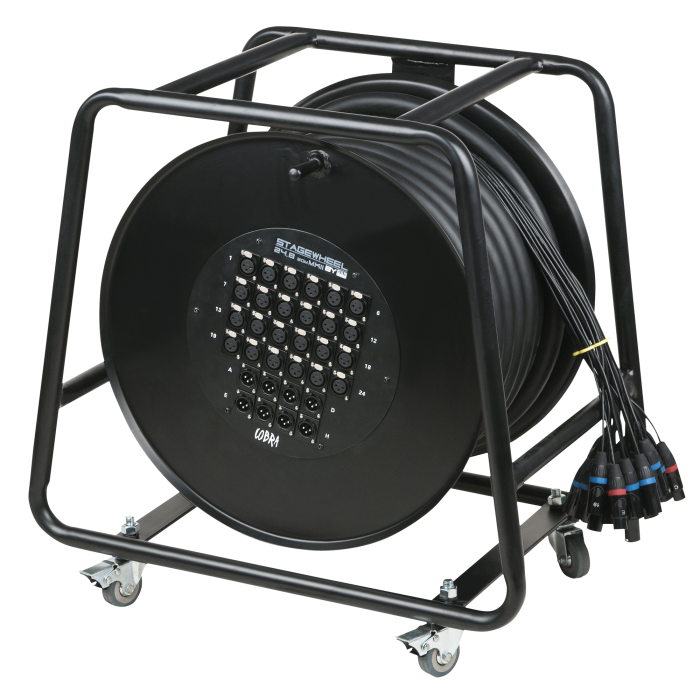

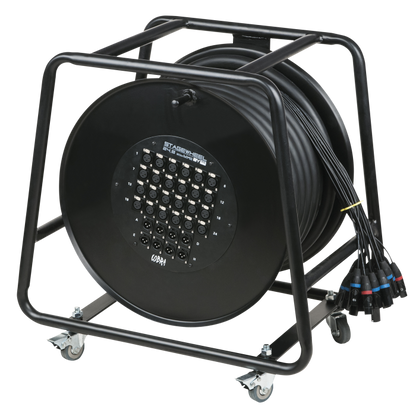

Castors 4
Castor Size 50 mm
Castor Type Swivel with brake + without brake
Mechanical Specifications
Height (mm) 630 mm (24.803?)
Width (mm) 440 mm (17.323?)
Length (mm) 610 mm (24.016?)
Weight 44 kg (97.003 lb)
Material Aluminium
Colour Black
