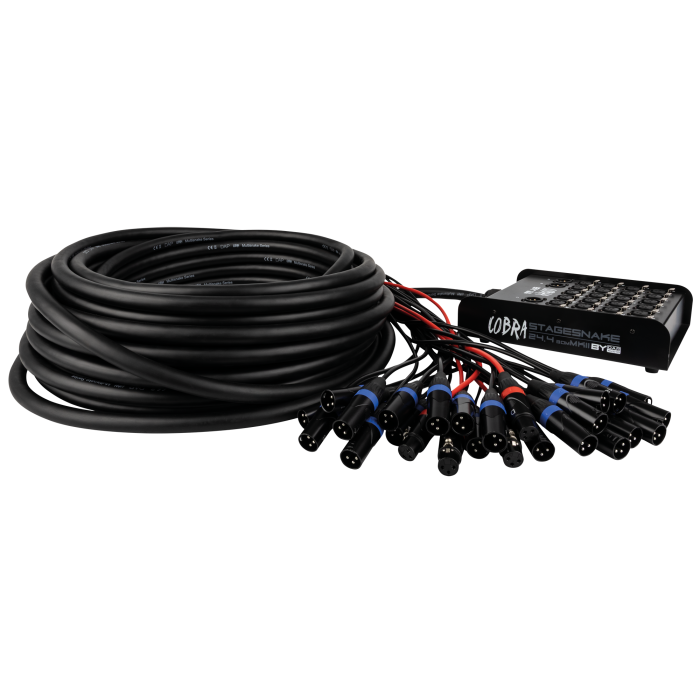

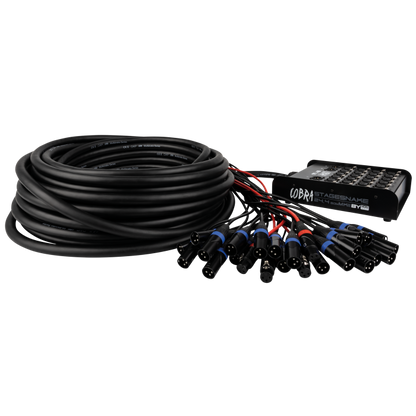

Chassis on PCB
Colour code for in- & output
FLX connectors

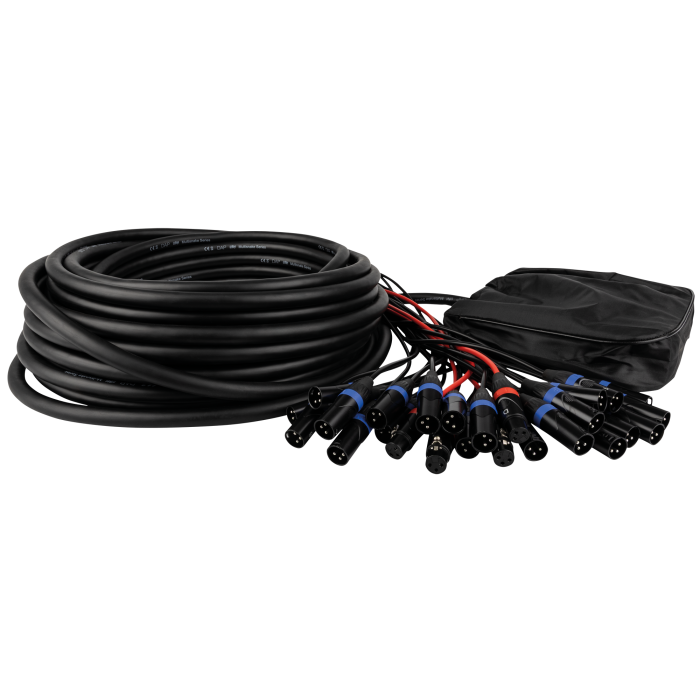

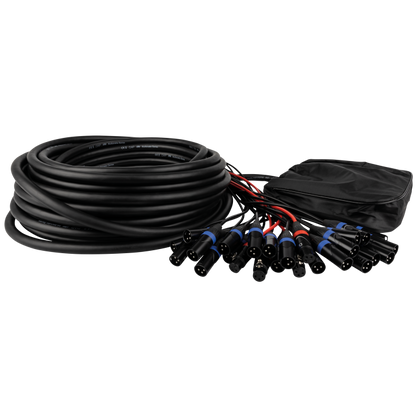

Box protection cover
Specifications:
Electrical Specifications and Connections
Connector 1 XLR 3P
Connector 2 XLR 3P
Cable Length 30 m
Pins 3
Inputs
Mono Inputs 24
Outputs
Main Outputs 4
Mechanical Specifications
Length (mm) 233 mm (9.173?)
Height (mm) 64 mm (2.52?)
Width (mm) 136 mm (5.354?)
Weight 12 kg (26.455 lb)
Material PVC
Housing Aluminium
Colour Black, Red
Product Properties
1st Shield Braided
2nd Shield Aluminium foil
Conductors 3
Number of Pairs 28
Included Items
Included Accessories Bag
