Chassis on PCB
Colour code for in- & output
FLX connectors
Box protection cover
Specifications:
Electrical Specifications and Connections
Connector 1 XLR 3P
Connector 2 XLR 3P
Cable Length 30 m
Pins 3
Inputs
Mono Inputs 16
Outputs
Main Outputs 4
Mechanical Specifications
Length (mm) 233 mm (9.173?)
Height (mm) 64 mm (2.52?)
Width (mm) 136 mm (5.354?)
Weight 9 kg (19.842 lb)
Material PVC
Housing Aluminium
Colour Black, Red
Product Properties
1st Shield Braided
2nd Shield Aluminium foil
Conductors 3
Number of Pairs 20
Included Items

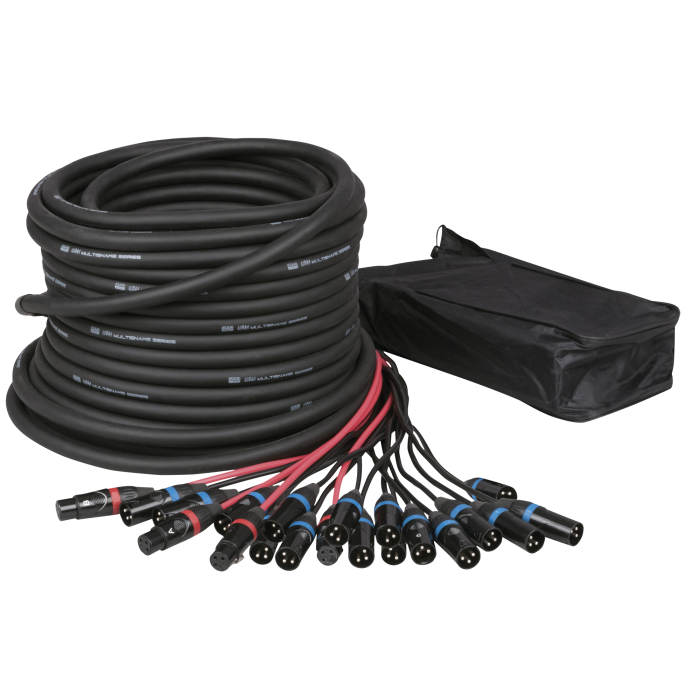

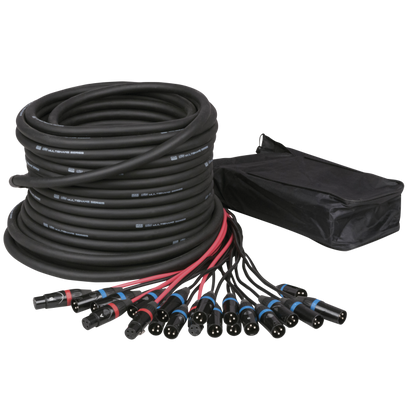

Included Accessories Bag
