Prevents ground loops, hum and buzz
Low distortion
Ground lift switch
0 and 20 dB attenuation switch
Works with 9 V battery or 18-48 V phantom power

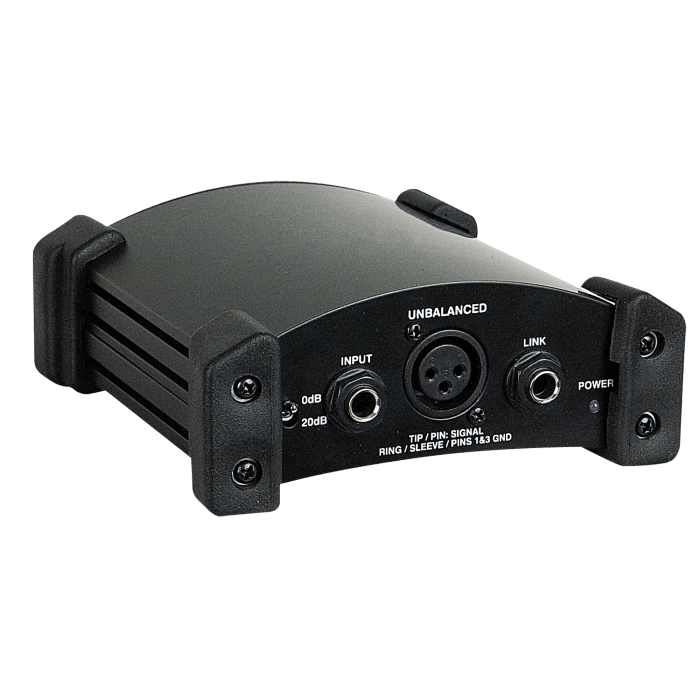

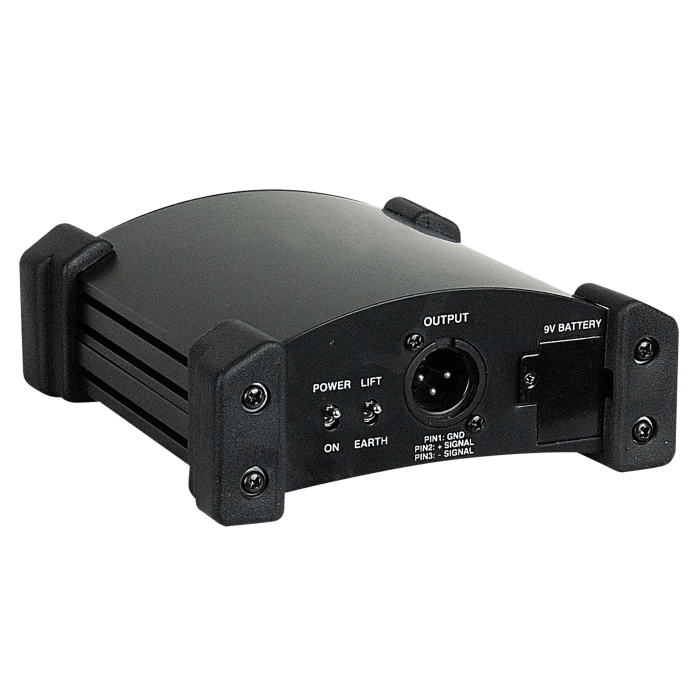

The DAP ADI-200 active DI box helps you with instruments with a low volume level and a high impedance output. It converts an instrument output to a stronger signal without adding any distortion, interference or noise.
With the ADI-200, for example, you can use long cables without any problems while retaining a clean and undistorted signal. It is therefore a reliable system for on-stage. It works on a 9 volt battery or via phantom power and is equipped with a ground lift function and a 20 dB attenuation switch.
Specifications:
Inputs
Mono Inputs 1
Mono Input Connector 3-pin XLR, TS unbalanced 6.3 mm
Mono Input Impedance 250000 ?
Outputs
Main Outputs 1
Main Output Connector 3-pin XLR, TS unbalanced 6.3 mm
Audio Specifications
THD Level < 0.005 %
Signal-to-noise Ratio > 105 dB
Frequency Response Minimum 10 Hz
Frequency Response Maximum 40000 Hz
Phantom Power 18 V, 24 V, 48 V
Sound Editing
Attenuation -20dB
Battery
Battery Type 9 V block PP3
Battery Voltage 9 V
Mechanical Specifications
Height (mm) 55 mm (2.165?)
Width (mm) 135 mm (5.315?)
Length (mm) 145 mm (5.709?)
Housing Magnesium die-cast
Weight 0.65 kg (1.433 lb)
IP Rating IP20 (indoor use only)
Colour Black
Product Properties
LED Indicators Power
