Prevents ground loops, hum and buzz
Low distortion
Ground lift switch
0, 20 and 40 dB attenuation switch
Works with 9 V battery or 18-48 V phantom power

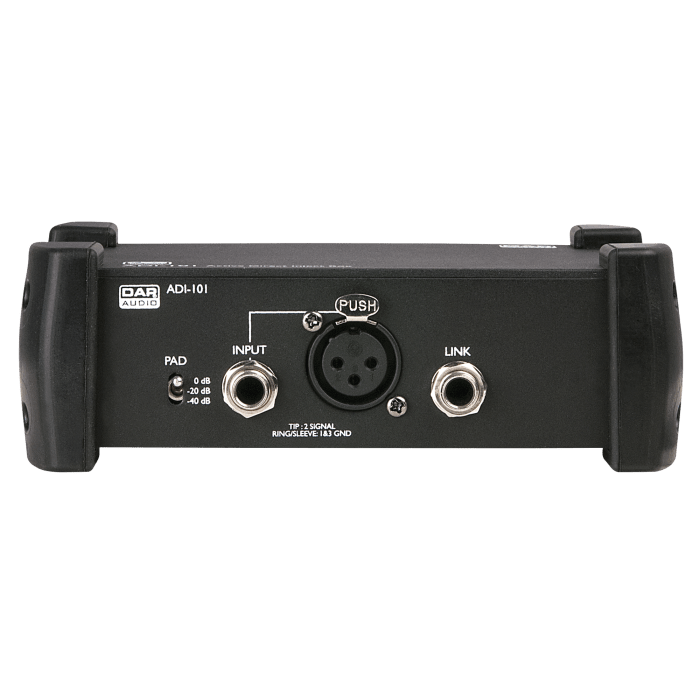

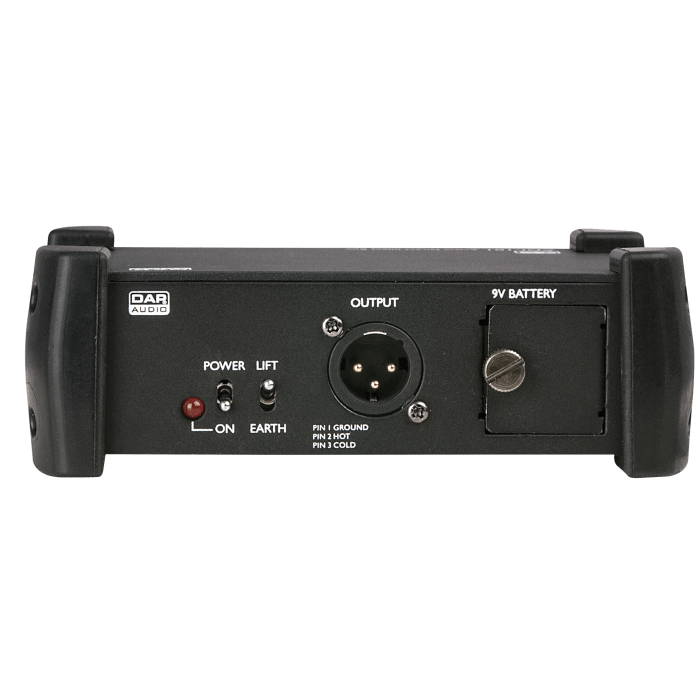

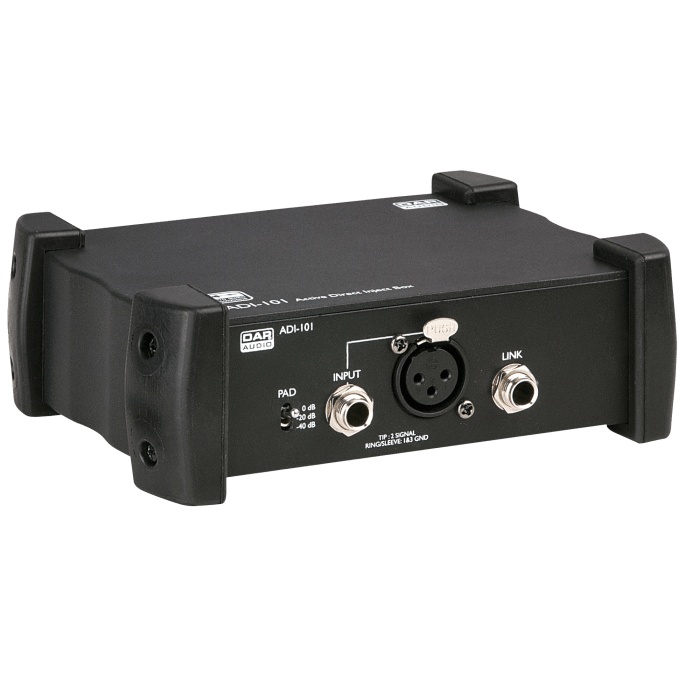

The DAP ADI-101 is made for professionals who do not want to troubleshoot signal interference. It protects your system against ground loops and possible hum and buzzing noises. Thanks to its metal housing and rubber feet, it is road-proof.
The ADI-101 can be powered by a 9 V battery or 18-48 V phantom power. In addition, it has a 0/20/40 dB attenuation switch.
Specifications:
Inputs
Mono Inputs 1
Mono Input Connector 3-pin XLR, TS unbalanced 6.3 mm
Mono Input Impedance 250000 ?
Outputs
Main Outputs 1
Main Output Connector 3-pin XLR, TS unbalanced 6.3 mm
Main Output Impedance 600 ?
Audio Specifications
THD Level < 0.005 %
Signal-to-noise Ratio > 105 dB
Frequency Response Minimum 10 Hz
Frequency Response Maximum 40000 Hz
Phantom Power 18 V, 24 V, 48 V
Sound Editing
Attenuation -20dB, -40dB
Battery
Battery Type 9 V block PP3
Battery Voltage 9 V
Mechanical Specifications
Height (mm) 53 mm (2.087?)
Width (mm) 158 mm (6.221?)
Length (mm) 120 mm (4.724?)
Housing Metal
Weight 0.8 kg (1.764 lb)
IP Rating IP20 (indoor use only)
Colour Black
Product Properties
LED Indicators Power
