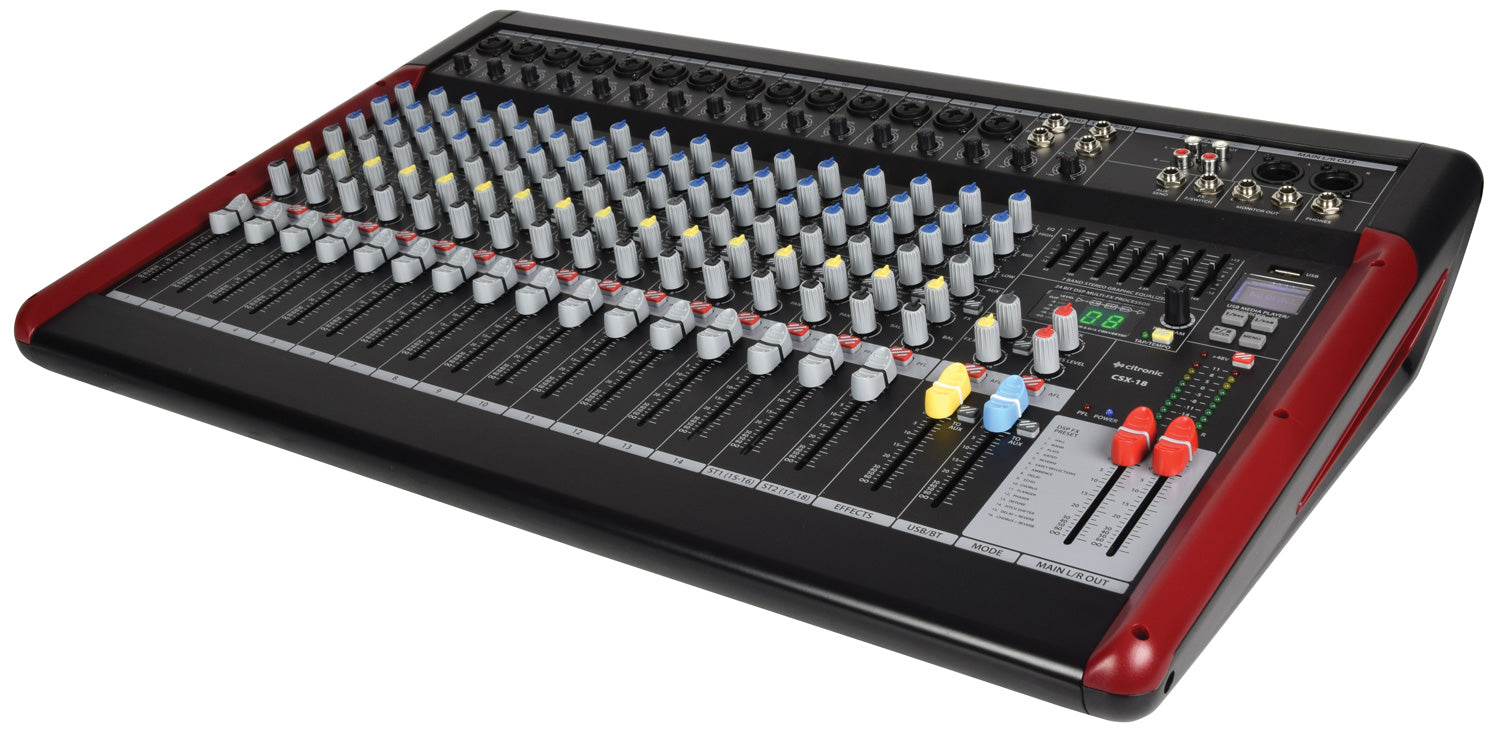

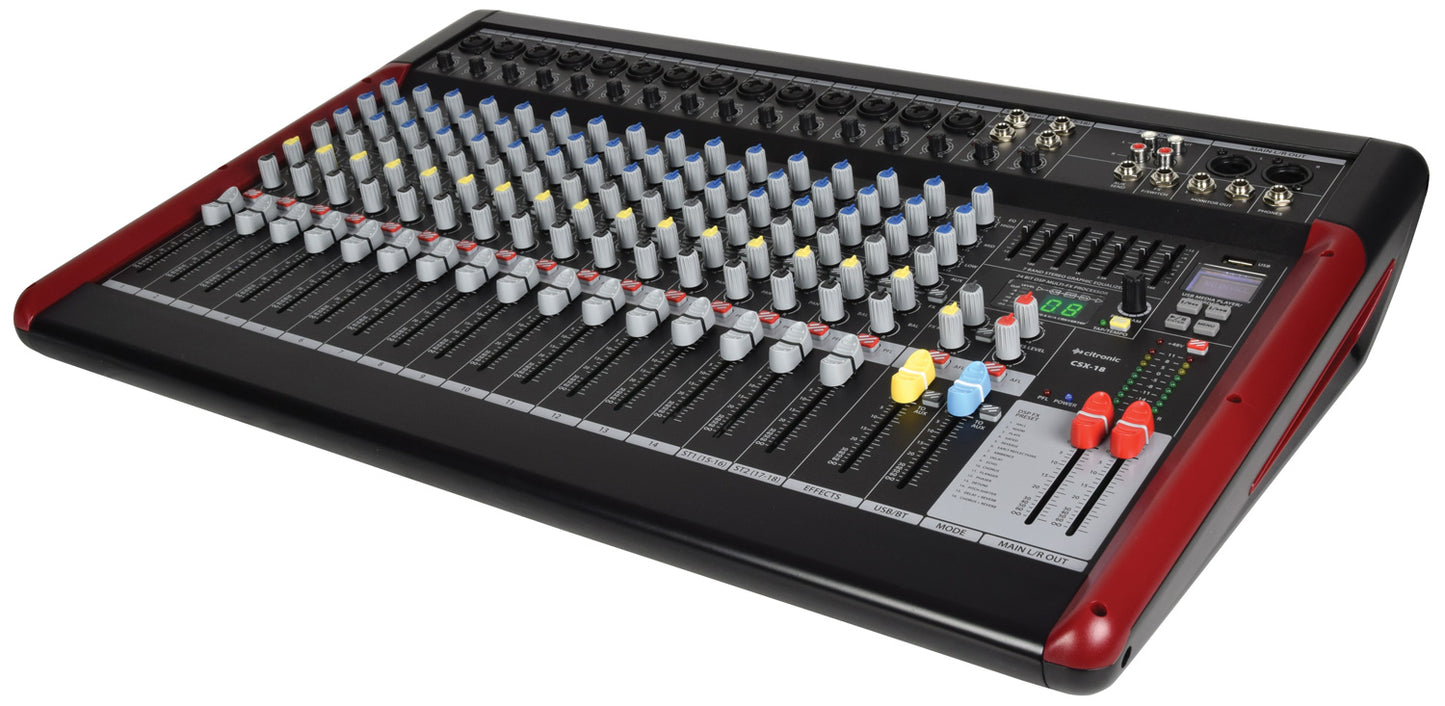

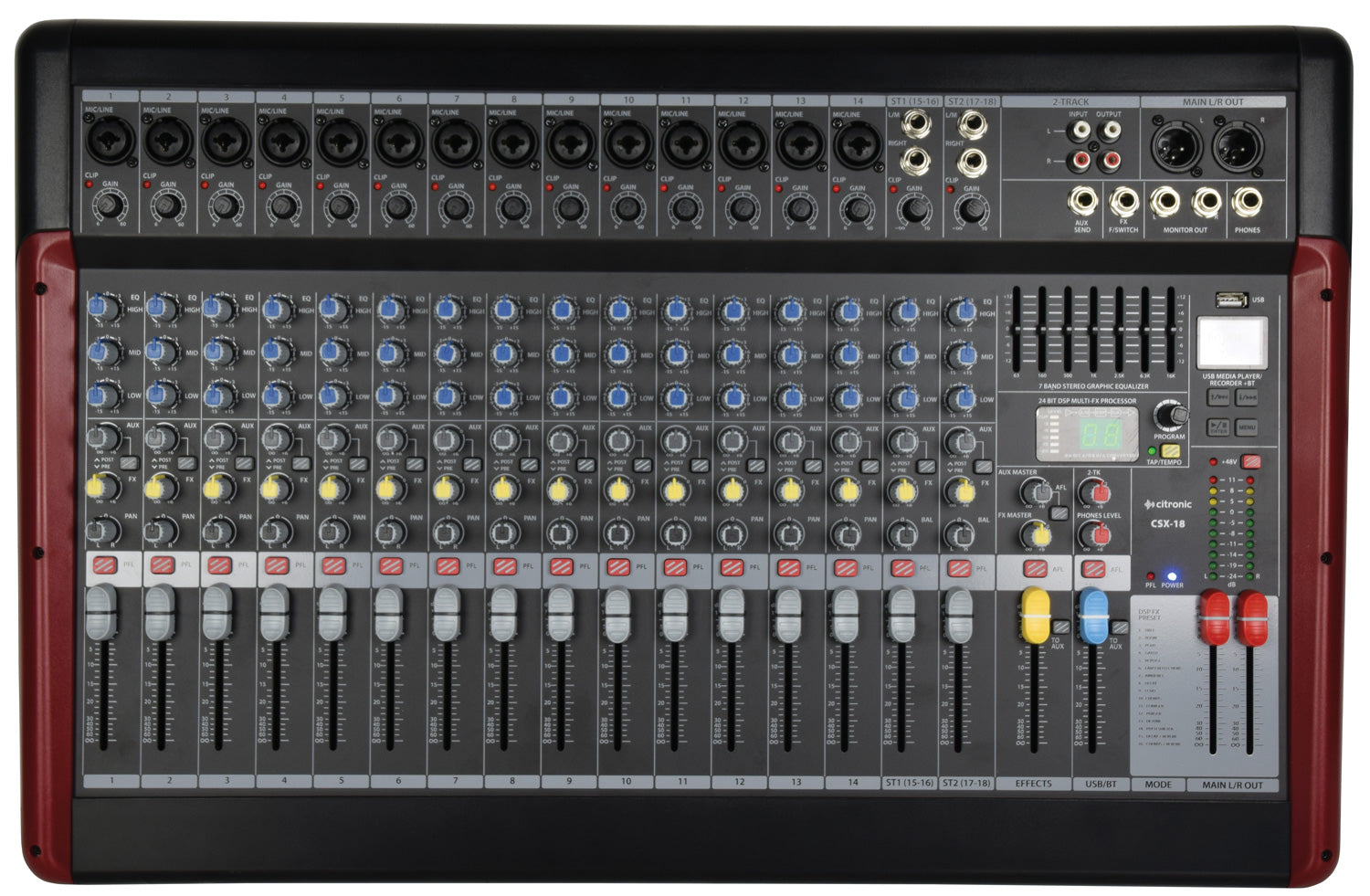

Fully featured live mixing console with 14 mono mic/line inputs on XLR/jack and 2 stereo line jack inputs. All channels have gain, 3-band EQ, switchable pre/post aux output, FX send, pan, PFL switch and 60mm channel faders. Phantom power is switchable to all XLR inputs for condenser microphones and active DI boxes. Internal effects take the form of a 16-program 24-bit DSP engine with independent level fader and AFL switch for monitoring. An inbuilt media player can accept a USB memory stick for playback of stored audio tracks and can also record the mix output for documenting rehearsals or performances. B/T wireless compatibility enables pairing with a smart phone or tablet for remote playback. Global EQ is handled by a 7-band graphic EQ and the overall mix is fed from master faders to left & right balanced XLR outputs. A 2-track RCA line input has a level control for mixing in a playback source. 2-track RCA output can be connected on to recording equipment or as an additional output feed if required. Low noise and clean audio path with enough features and routing options for live performances, conferences and theatre productions.
Integral USB player/recorder with BT receiver
24-bit DSP effects with 16 programs
14 mono balanced XLR/jack inputs
2 stereo jack inputs
7-band graphic EQ
Switchable +48V phantom power
Power supply 100-240Vac, 50/60Hz (IEC)
DSP effects processor 24-bit sigma-delta, 64/128 times over-sampling, 40kHz
Output connections Main L+R balanced XLR, Monitor L+R 6.3mm jack
THD +N <0.01% (Channel to mix out)
Power consumption max. 30W
Fuse T3AL @ 230V / T6AL @ 115V
Input level +24dBu (mic/line), +20dBu (stereo line) max.
Phantom power +48V globally switched to XLR inputs
EQ: high 12kHz ±15dB (shelving)
EQ: mid 2.5kHz ±15dB (band pass)
EQ: low 80Hz ±15dB (shelving)
2-track L+R RCA, 4k Ohm, -2dBu
EQ master bands 63, 160 , 500, 1k, 2.5k, 6.3k, 16k (all in Hz)
Bluetooth version 5.0
Output level +26dBu (XLR), +20dBu (TRS jack) max.
Output : master XLR balanced, ＜75 Ohm, +4 dBu, Max.+22 dBu
REC output L+R RCA, <75 Ohm, -2dBu
Headphone impedance 30-600 Ohms
Frequency response 20Hz - 30kHz (-0.5dB)
Channel crosstalk >82dB
CMRR >75dB (Mic @ 1kHz)
Noise rms : 22Hz-22kHz EIN -122dBu, Residual output ＜-90dBu, Main/Aux mix＜-82dBu

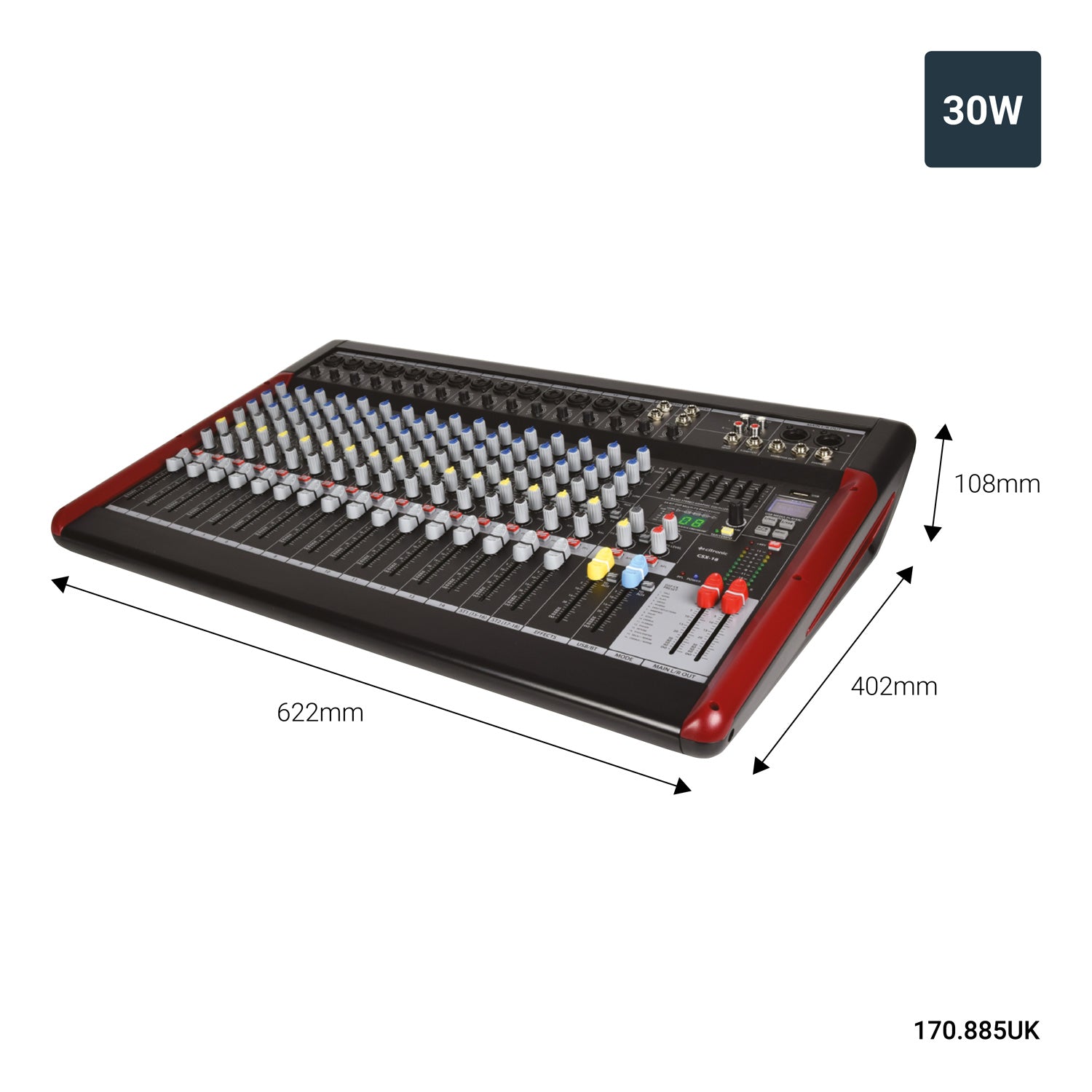

Dimensions 622 x 402 x 108mm
Weight 6.3kg
