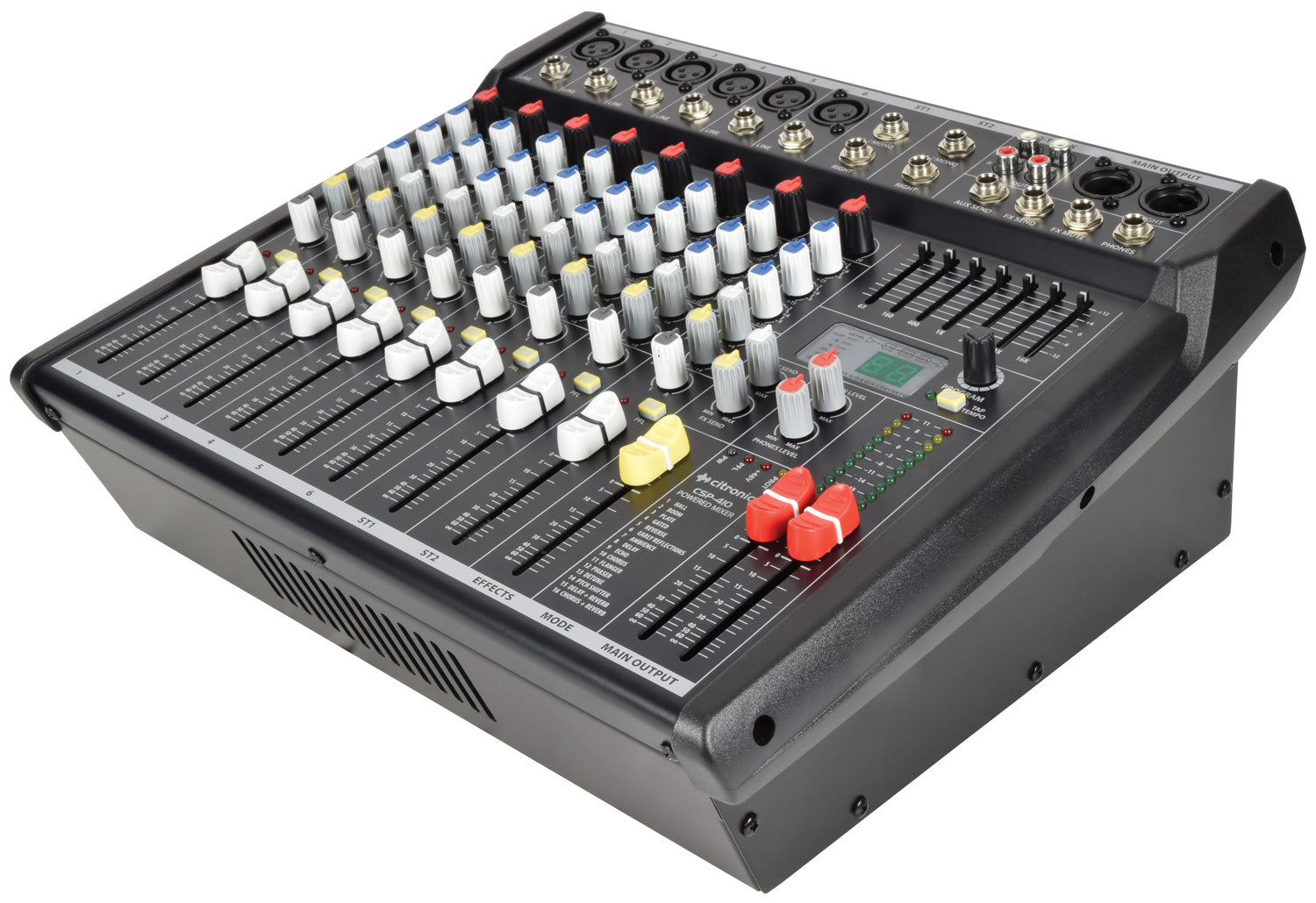

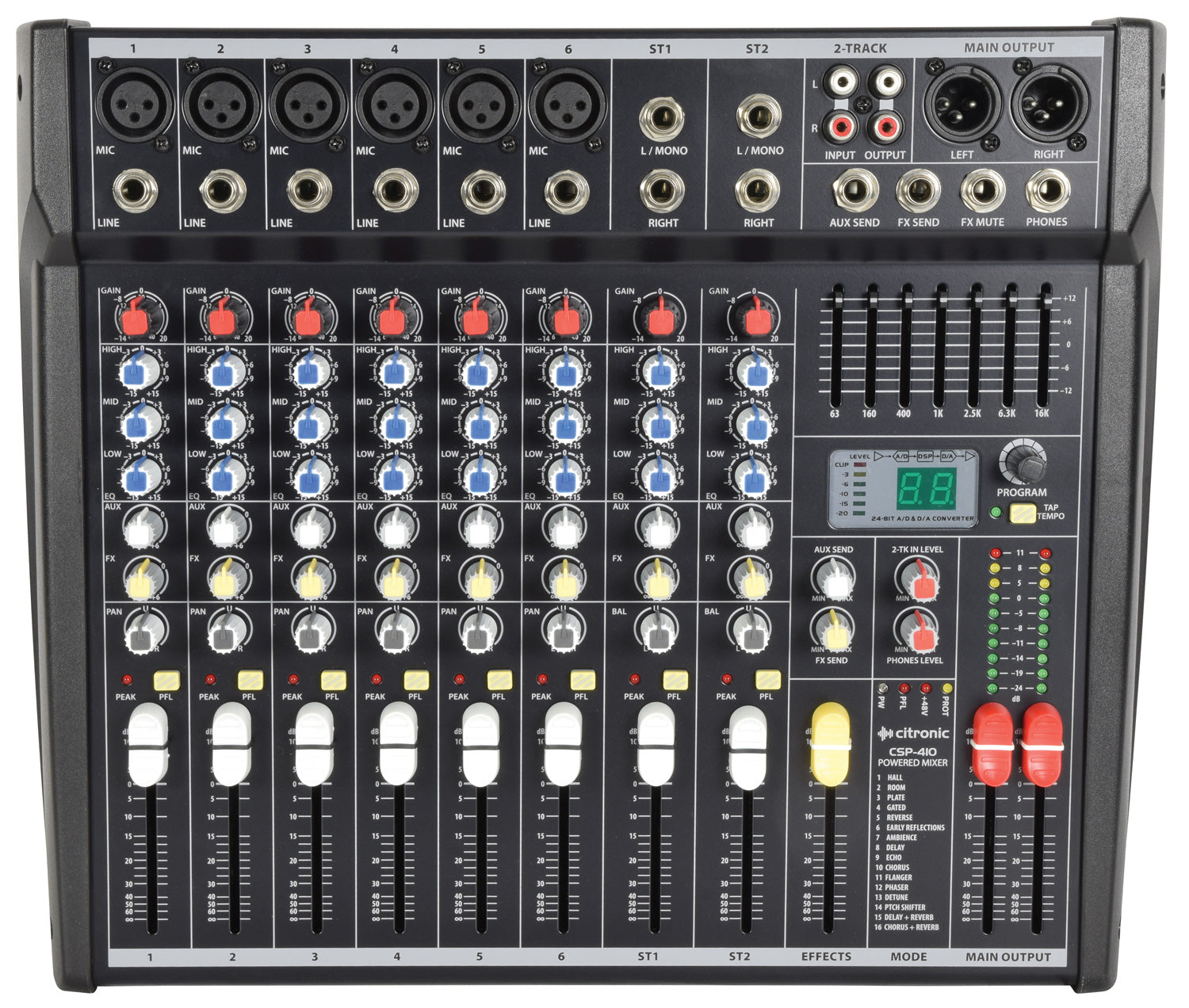

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.
24-bit 16 program DSP effects
48V phantom power for XLR inputs
3-band EQ per channel
7-band global graphic EQ
Internal stereo power amplifier
Balanced main outputs
Weight 7.35kg

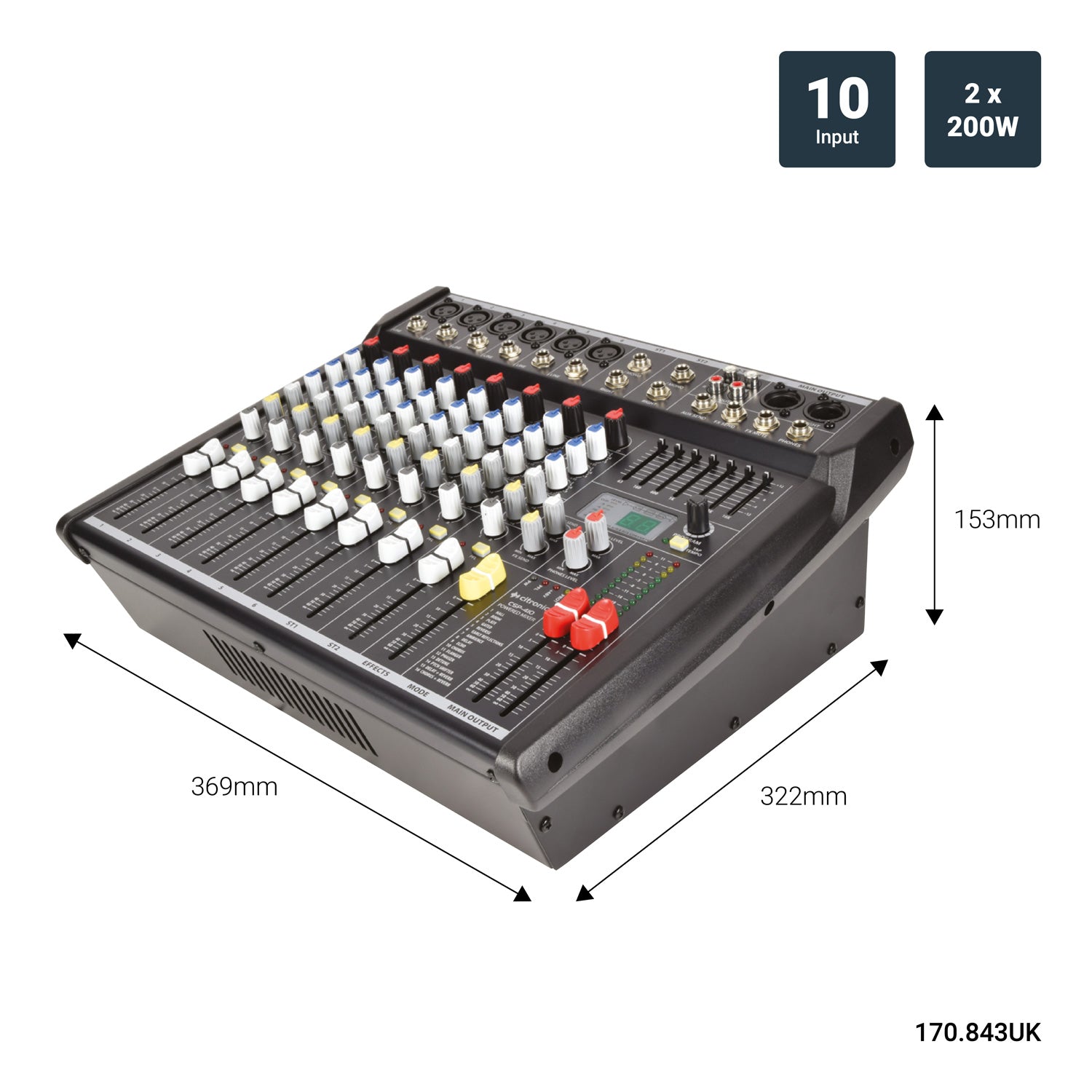

Dimensions 369 x 322 x 153mm
Inputs : Mic/Line 6 x balanced XLRF/TRS jack
Output power : 8 Ohms 2 x 130Wrms
Output power @ 4 Ohms 2 x 200Wrms
Fuse T10A (5 x 20mm, 250V)
Power consumption 600W
Power supply 230Vac 50Hz (IEC)

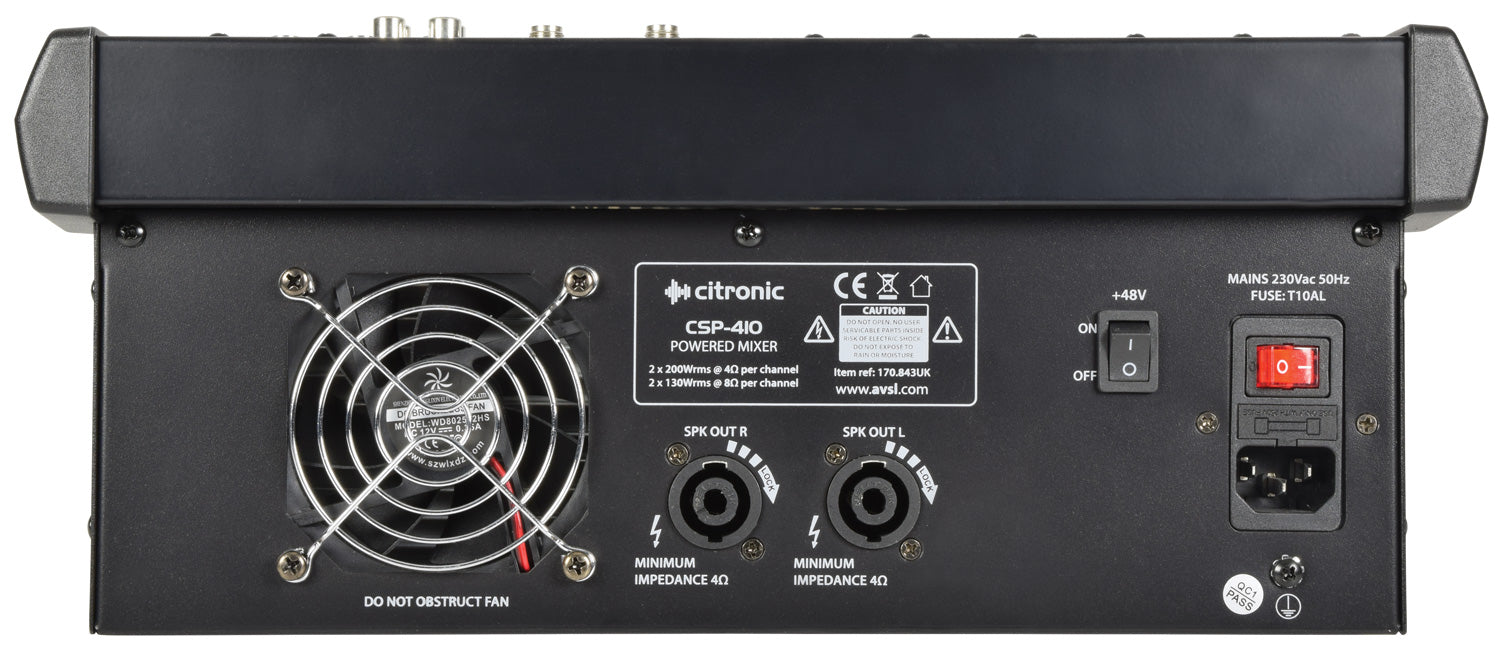

Speaker : outputs L+R SPK connectors
Effects 16 program DSP (24-bit sigma-delta, 40khz)
Phantom power +48V (XLR inputs)
Frequency response 20Hz-30kHz (0.5dB)
Input level +24dBu
Output level : line +26dBu
CMRR >74dB (mic 1kHz)
THD +N <0.01% (channel to main out)
Crosstalk >85dB (fader mute), >82dB (channel)
Noise rms : 22Hz-22kHz -122dBu (EIN), -82dBu (mix)
EQ: high 12kHz ±15dB shelving
EQ: mid 2.5kHz ±15dB band pass
EQ: low 80Hz ±15dB shelving
Input impedance : mic (balanced) 2k Ohms
Input impedance : line (balanced) 10k Ohms
Sensitivity : mic -60 to +14dBu
Sensitivity : line -40 to +14dBu
2-track 2 x RCA in & out (-2dBu)
Output impedance <75 Ohms
Headphone output 6.3mm jack, 30-600 Ohms
