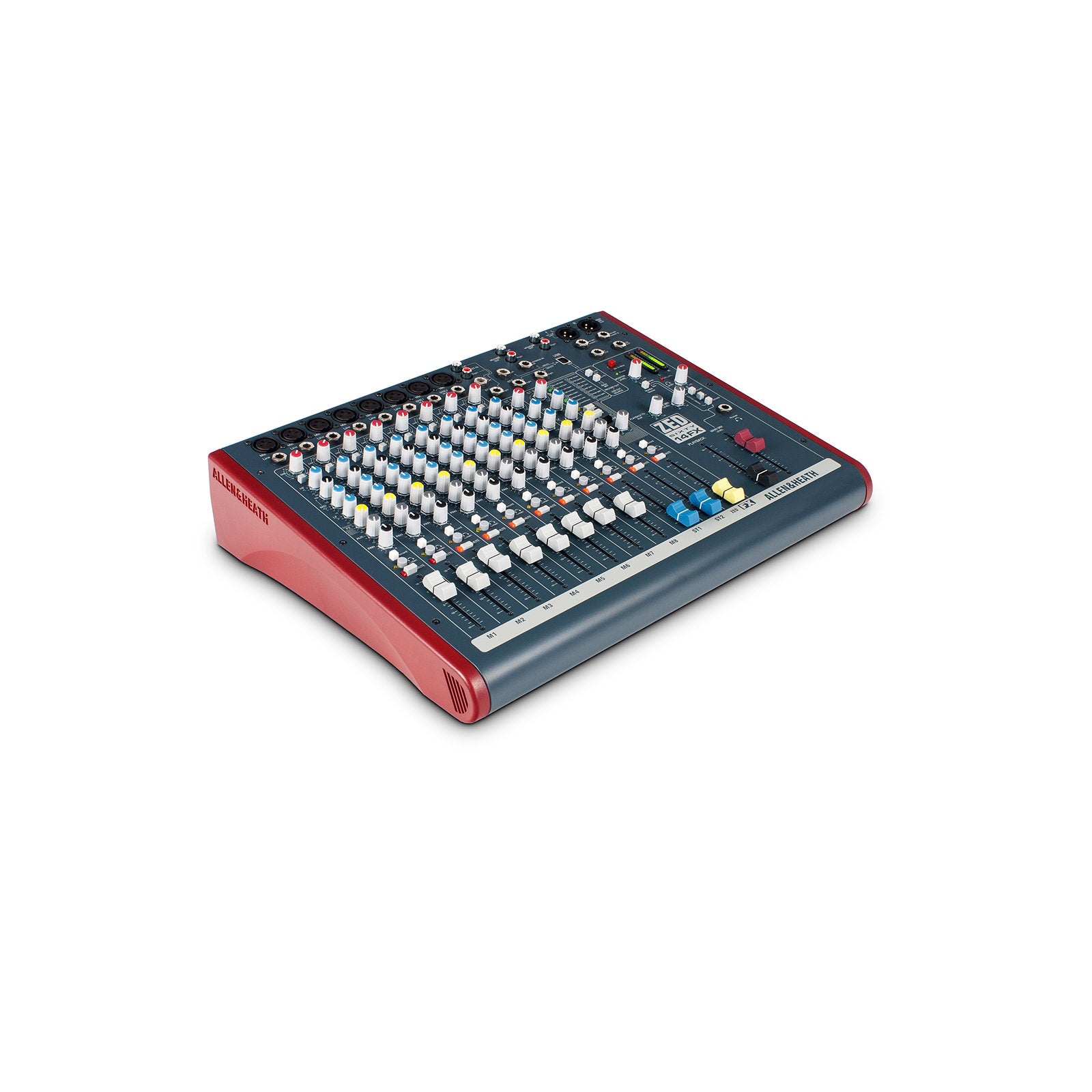

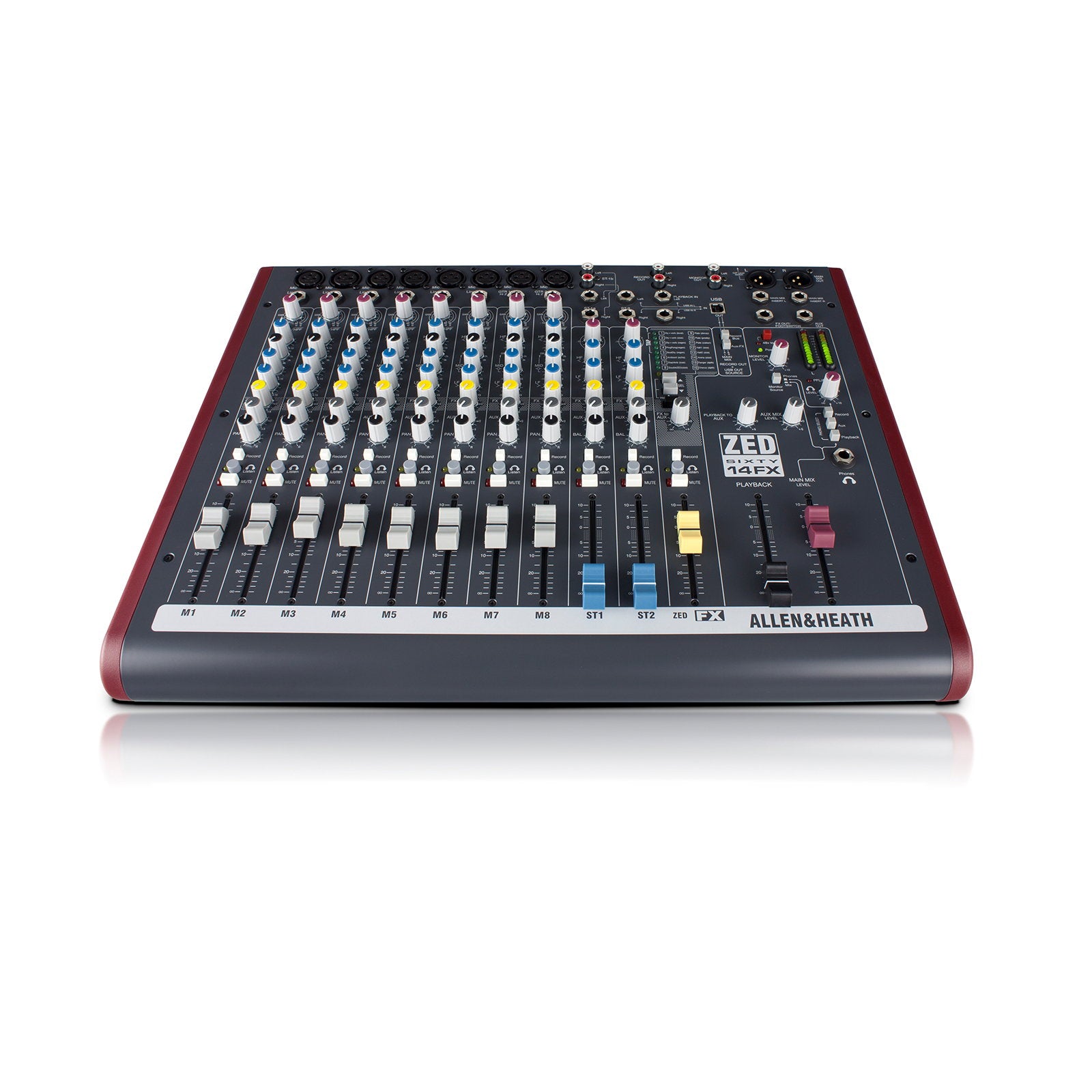

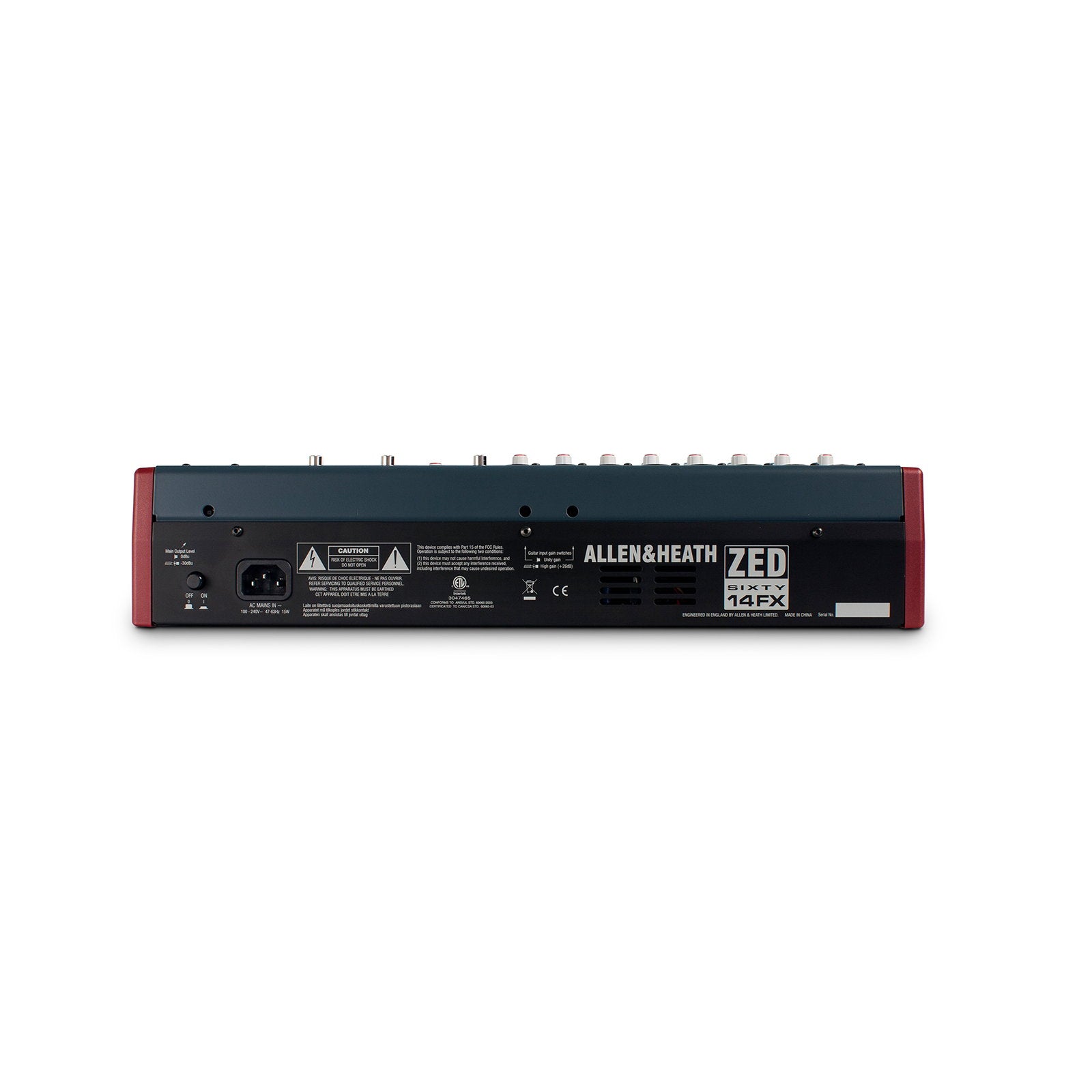

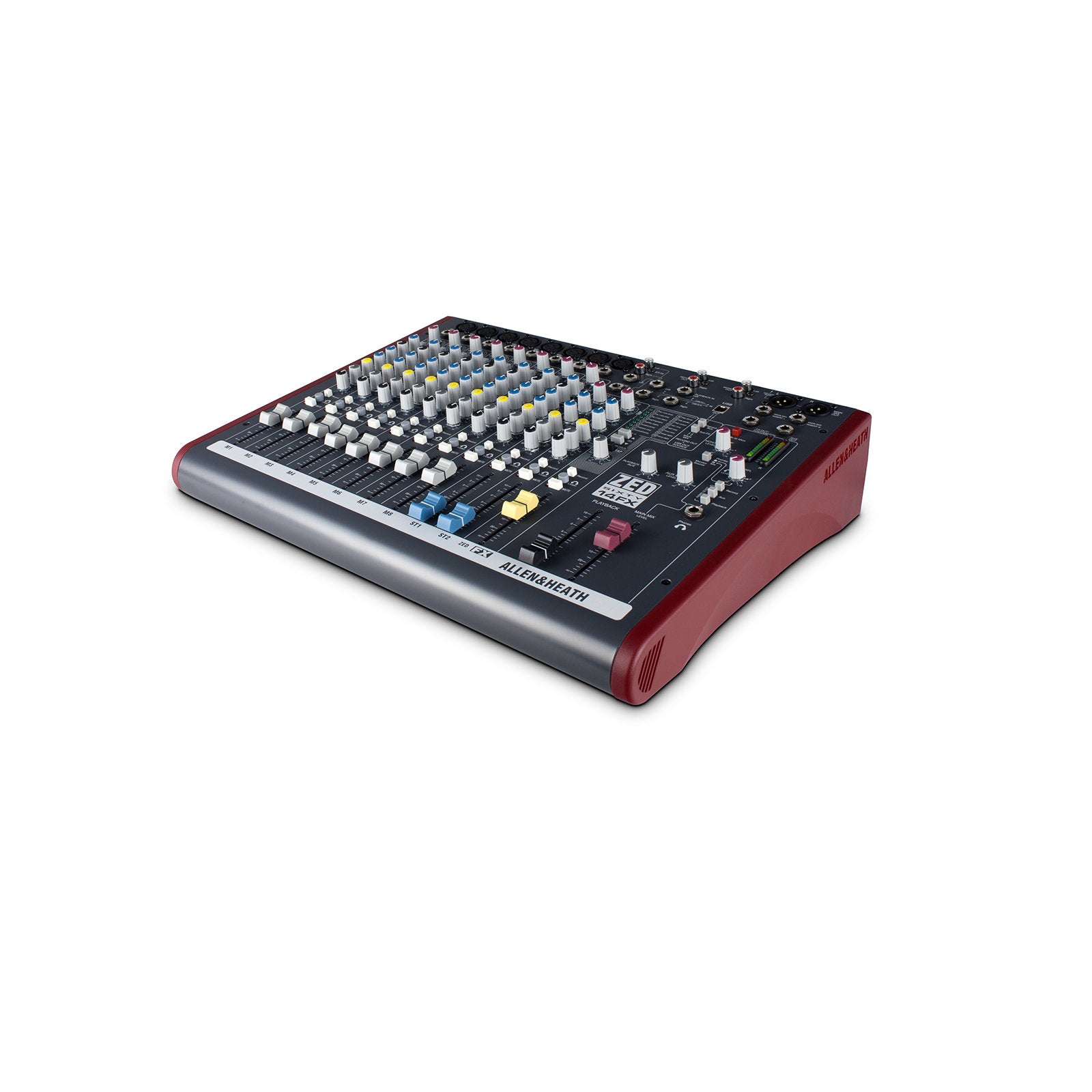

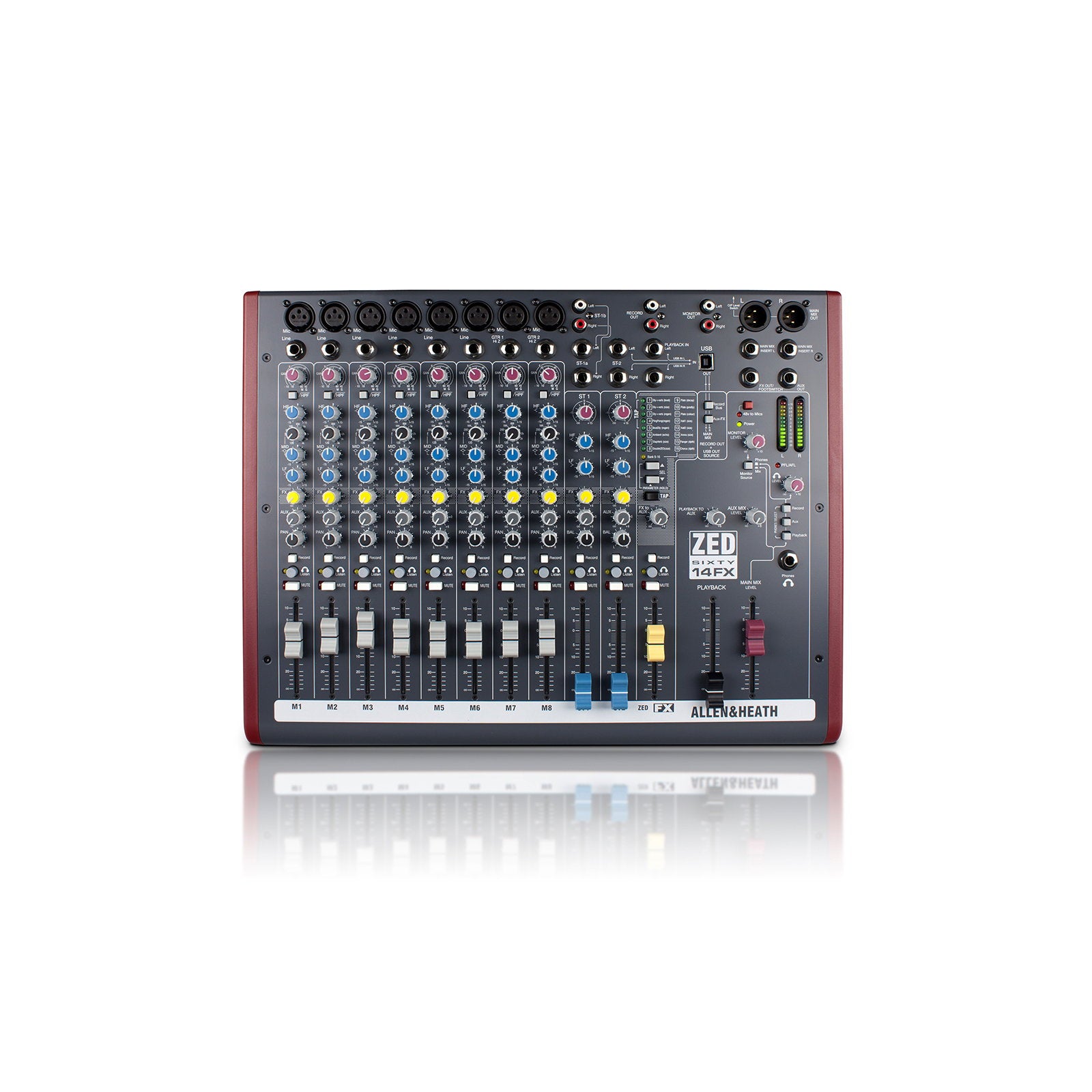

The Allen & Heath ZED60-14FX is a versatile 14-channel compact mixer built for live performance recording and project studio work. It features seven mic/line channels with GSPre preamps two stereo channels Hi-Z inputs for direct guitar connection and a 16-preset FX engine with delay reverb and modulation. Its USB interface provides 2-in/2-out recording and playback and its rugged construction ensures road-ready durability. Ideal for solo acts bands and mobile rigs needing professional-grade control in a compact format.
Features:
7 mono mic/line inputs with GSPre preamps for warm, detailed sound
2 stereo channels for keyboards and playback sources
16 studio-quality built-in effects including reverb, delay, and chorus
Hi-Z input switches on mono channels 3 & 4 for direct guitar connection
3-band EQ on mono channels and 2-band EQ on stereo
USB interface for 2-in/2-out audio recording and playback
60mm faders for precise live and studio mixing
2 aux sends (1 pre, 1 post) and 1 FX send
All-metal construction for reliable touring use
Mono Channels: 7 x XLR/TRS combo with Hi-Z on 3 & 4
Stereo Channels: 2 x TRS stereo pairs
USB Audio: 2-in/2-out, 16-bit/48kHz
FX Engine: 16 onboard digital effects
EQ: 3-band on mono, 2-band on stereo
Aux Sends: 2 aux (1 pre, 1 post), 1 FX
Main Outputs: XLR (L/R)
Headphone Out: 1 x 1/4" TRS
Phantom Power: 48V, globally switchable
Dimensions (W x D x H): 458 x 380 x 95mm
Weight: 5.1kg
