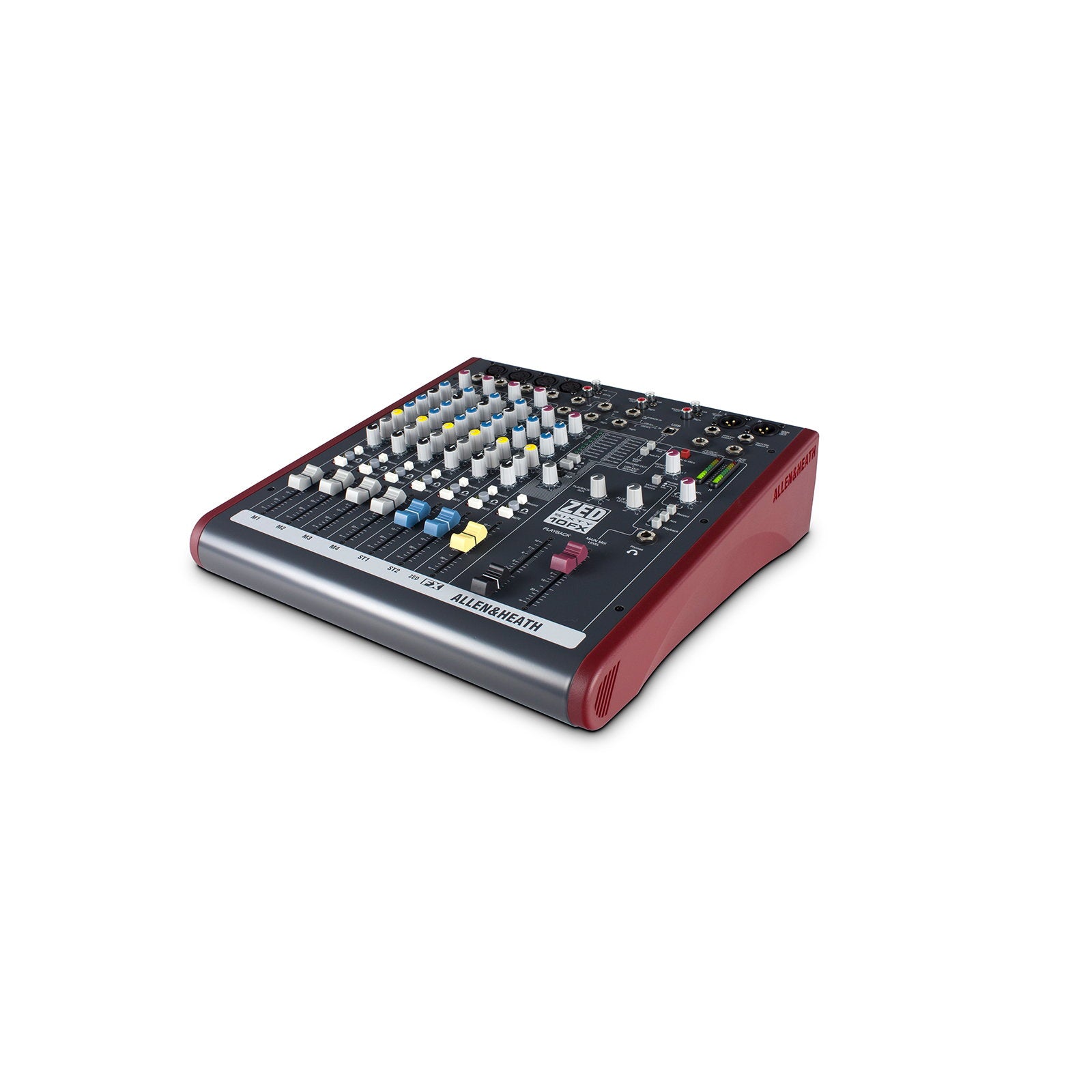

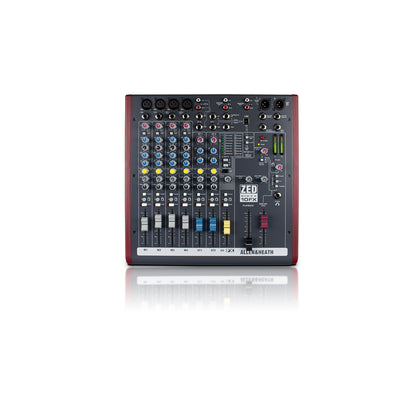

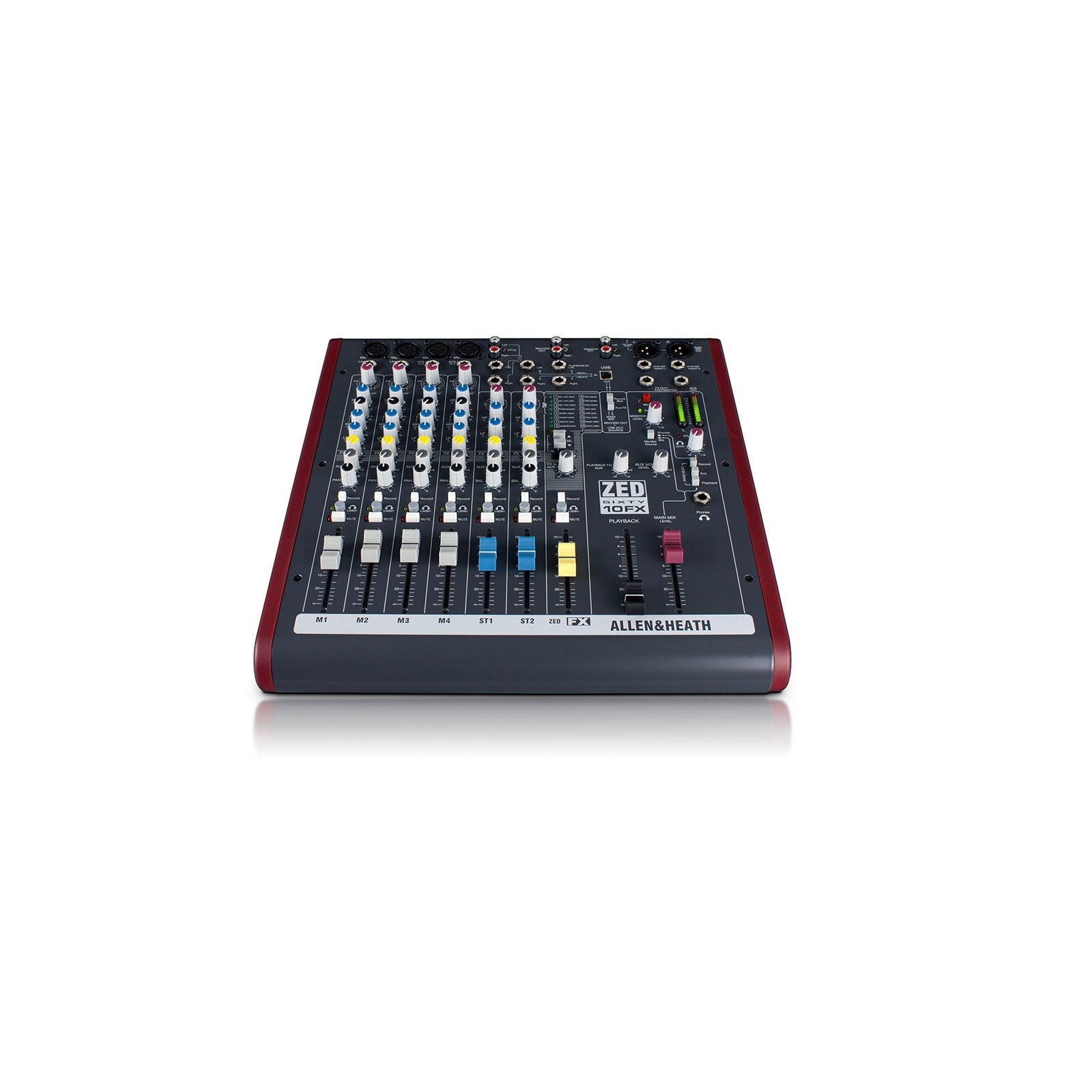

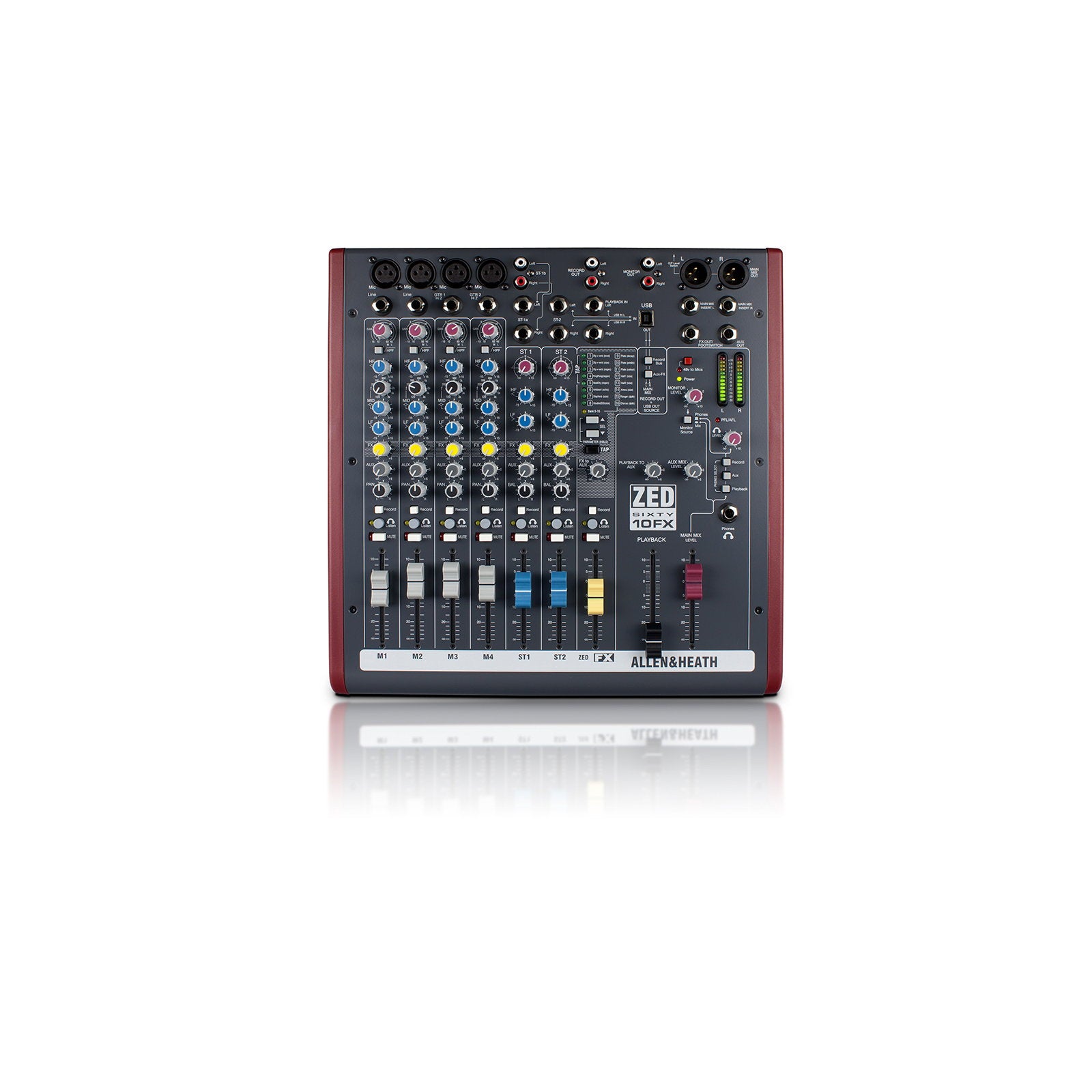

The Allen & Heath ZED60-10FX is a premium compact stereo mixer ideal for solo performers acoustic acts and small venues. Featuring 4 mic/line inputs with GSPre preamps 2 stereo channels Hi-Z inputs for direct guitar connection and a high-quality FX engine with 16 studio-grade effects the ZED60-10FX delivers outstanding live sound control. With a USB interface for 2-in/2-out recording and playback responsive EQ and a road-ready metal build this mixer offers studio performance in a portable footprint.
Features:
4 mono mic/line inputs with GSPre preamps for high-quality audio capture
2 stereo channels for keyboards or playback devices
16 onboard digital FX including reverb, delay, and modulation effects
Hi-Z switches on mono channels for direct guitar input
3-band EQ on mono channels and 2-band EQ on stereo channels
USB audio interface for 2-in/2-out recording and playback
60mm faders for smooth and accurate mix control
Metal chassis and pro build for touring reliability
Separate monitor and FX buses for flexible routing
Inputs: 4 x XLR/TRS combo mic/line, 2 x stereo TRS line
Hi-Z: Available on mono channels 3 & 4
FX Engine: 16 onboard effects with dedicated return
USB Interface: 2-in/2-out, 16-bit/48kHz
EQ: 3-band EQ on mono channels, 2-band EQ on stereo channels

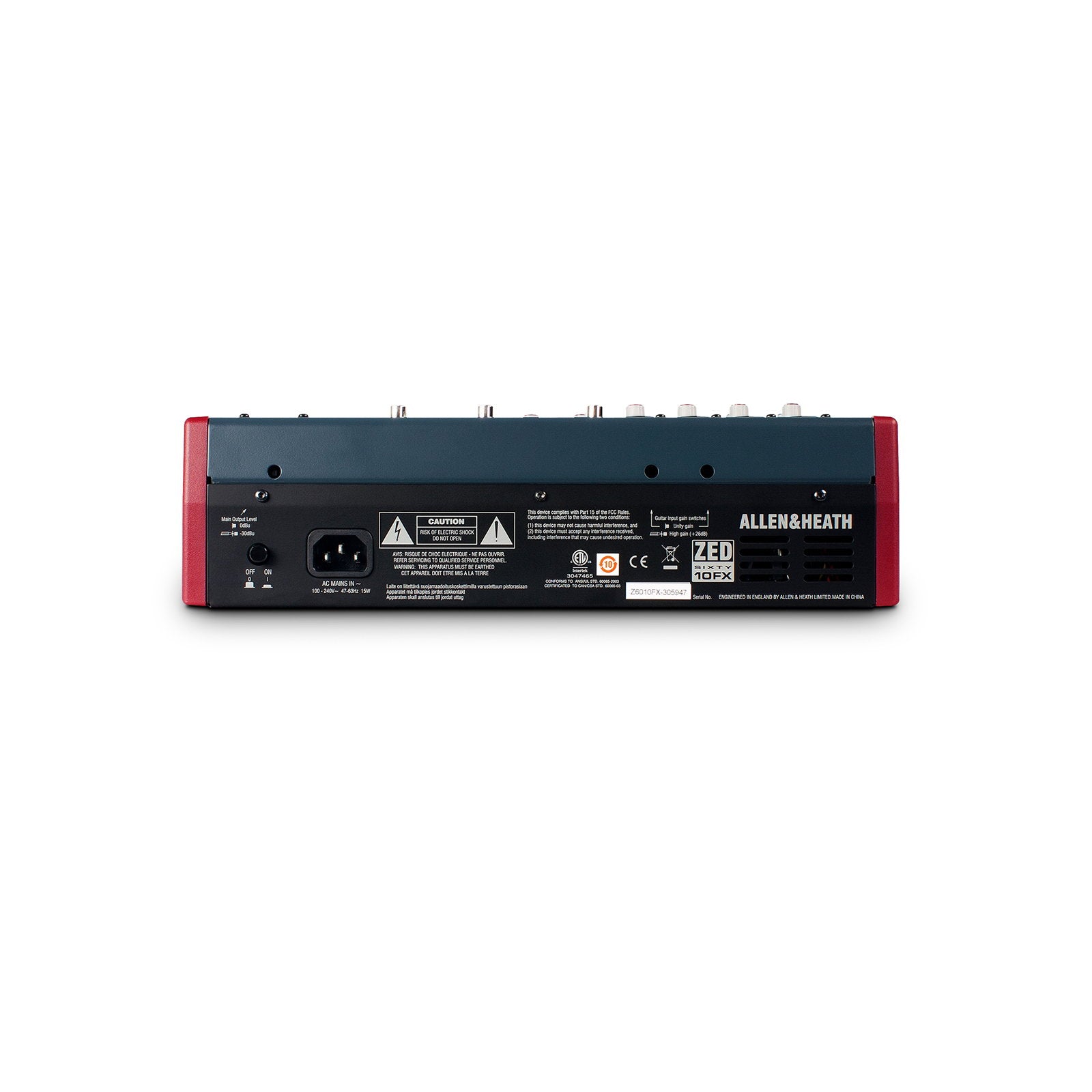

Outputs: 2 x XLR main, 1 x headphone, 1 x monitor out
Phantom Power: 48V, globally switchable
Dimensions (W x D x H): 336 x 275 x 95 mm
Weight: 2.6 kg
