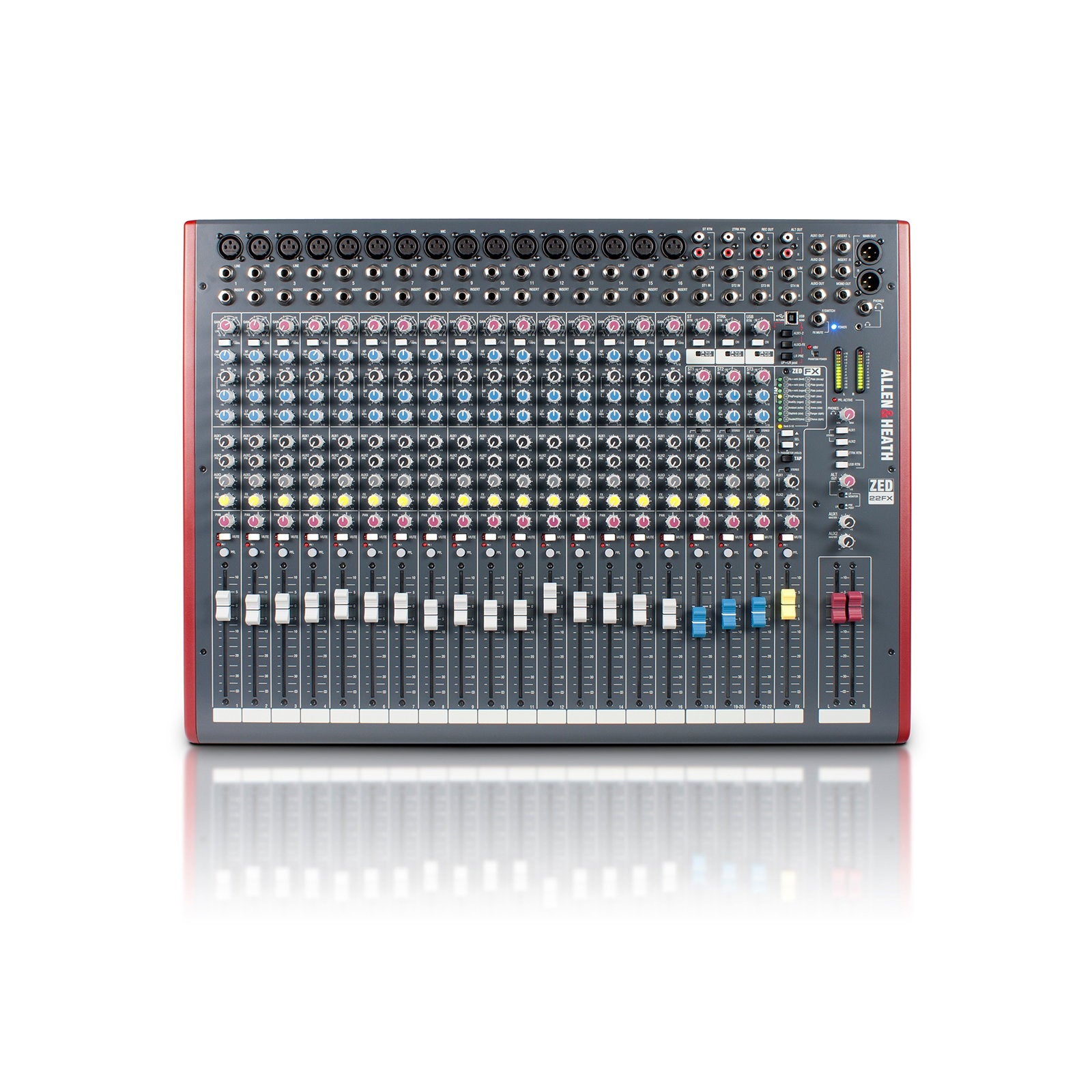

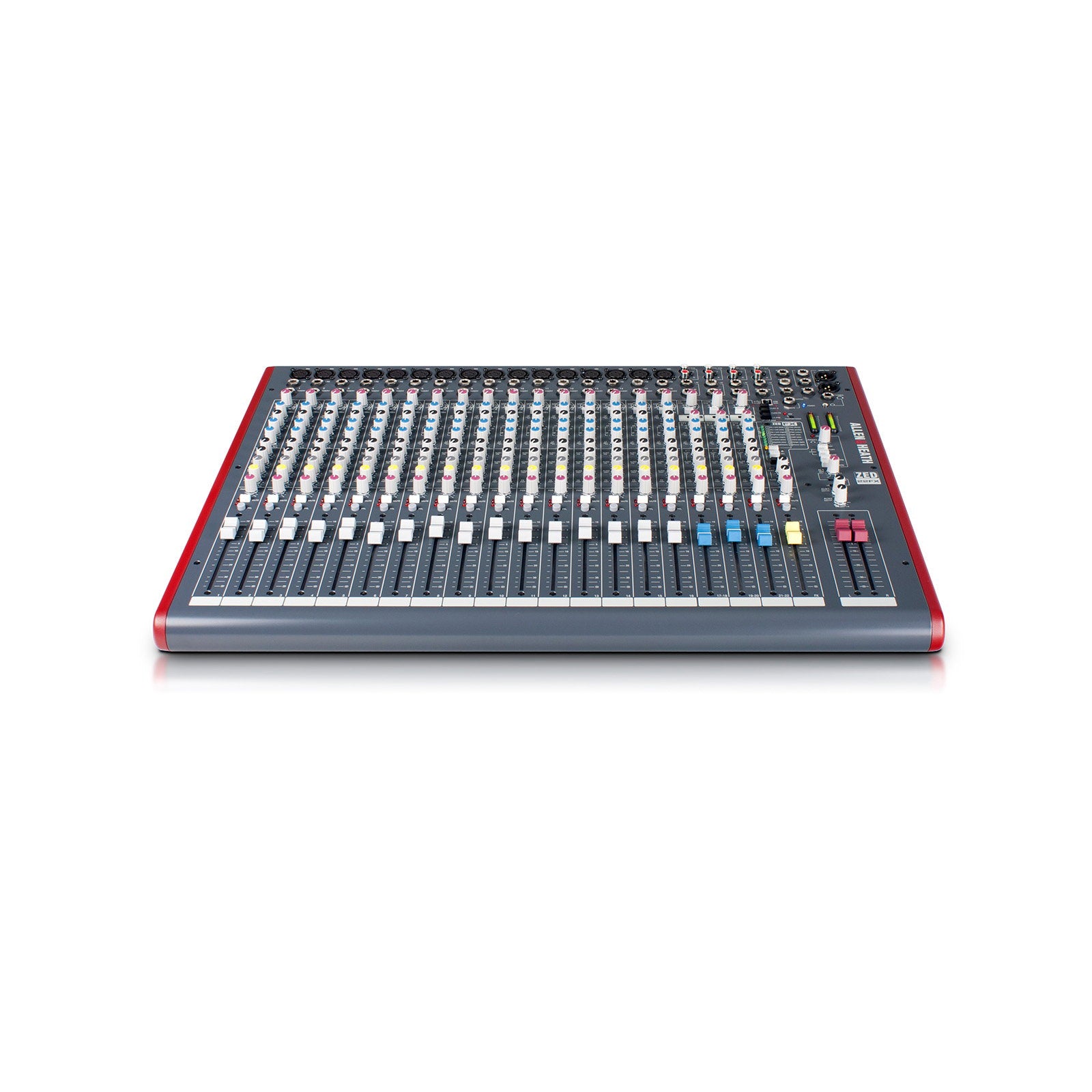

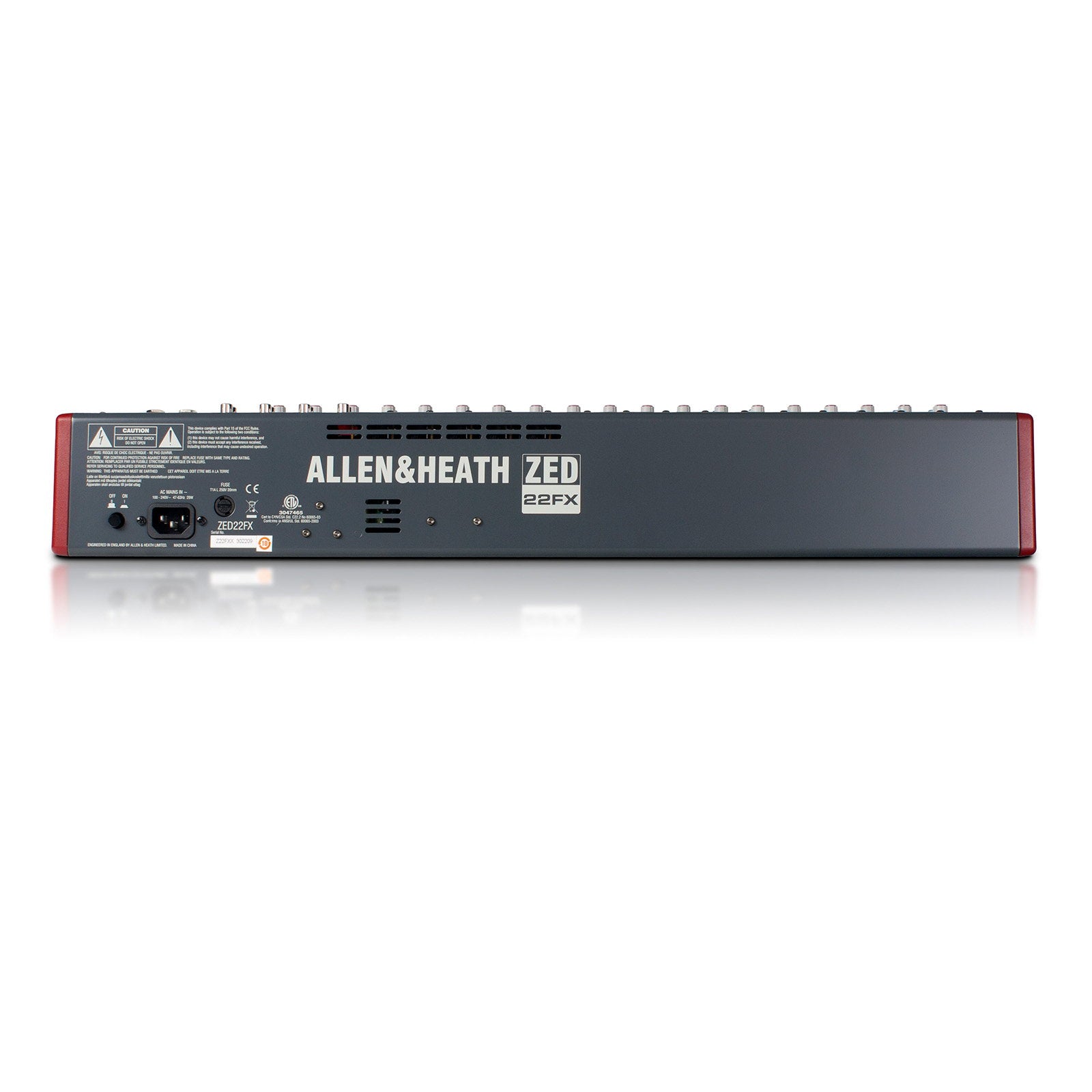

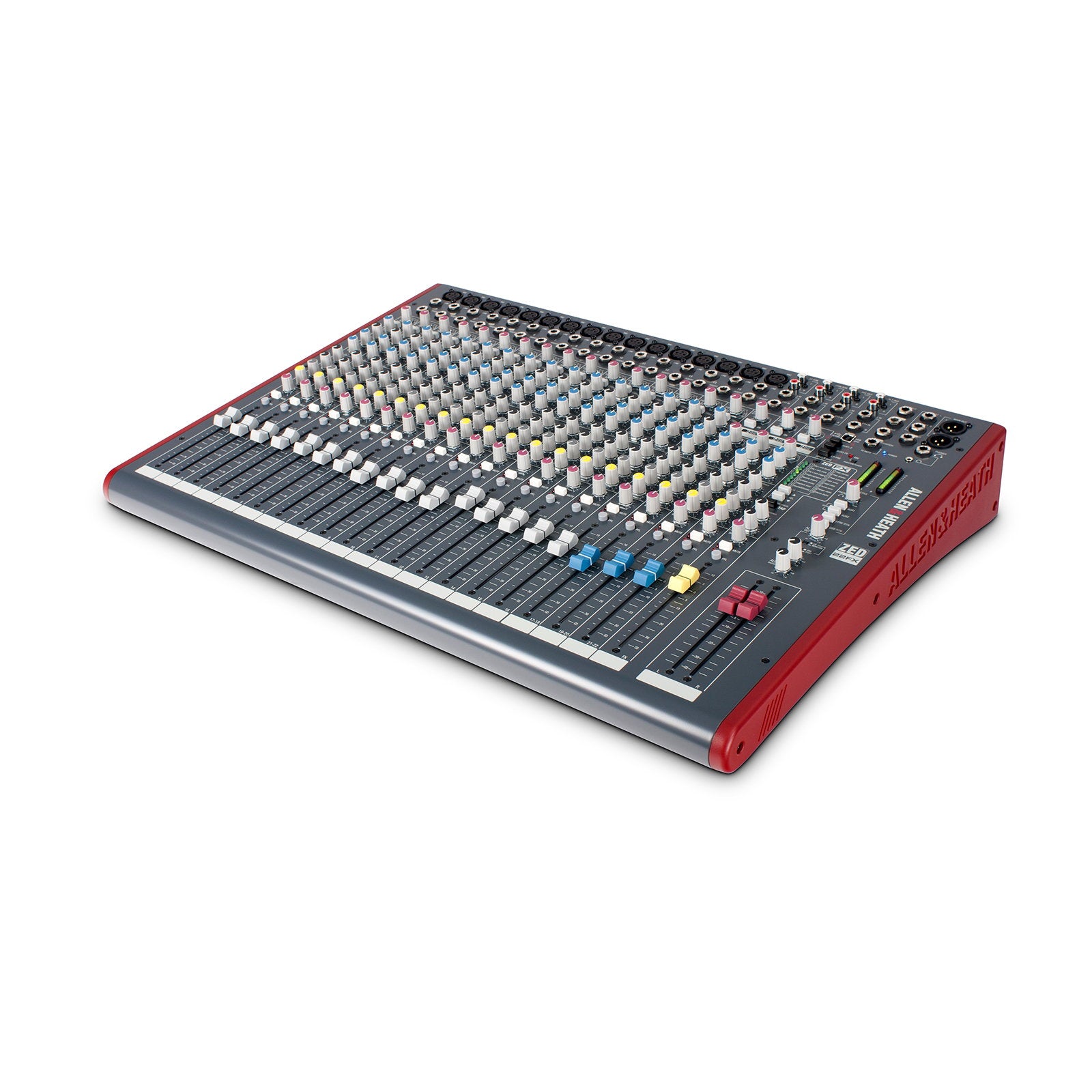

The Allen & Heath ZED-22FX is a feature-rich 22-channel analog mixer designed for bands venues and studios needing expanded input capacity and built-in effects. It includes 16 mono mic/line channels with GSPre preamps 3 stereo channels a 2-in/2-out USB interface and a high-quality 16-effect FX engine. With 4 auxiliary sends swept mid EQ rugged construction and intuitive controls the ZED-22FX is the perfect compact mixer for reliable live and recording performance.
Features:
16 mono mic/line inputs with GSPre preamps for exceptional audio quality
3 stereo line channels for instruments, playback, or auxiliary devices
16 built-in digital FX presets with tap tempo and FX return level control
USB interface for 2-in/2-out recording and playback with DAW
3-band EQ with swept mid on mono channels
4 aux sends (2 pre, 1 post, 1 switchable) for monitoring and FX
Balanced XLR main outputs, headphone output, and LED metering
60mm faders for smooth mix control
Rugged steel chassis designed for live and studio use
Mono Channels: 16 x XLR/TRS combo with GSPre preamps
Stereo Channels: 3 x TRS stereo pairs
USB Audio: 2-in/2-out, 16-bit/48kHz
FX Engine: 16 built-in digital effects
EQ: 3-band EQ with swept mid on mono; 2-band on stereo
Aux Sends: 4 total (2 pre, 1 post, 1 switchable)
Main Outputs: XLR (L/R)
Headphone Out: 1 x 1/4" TRS
Phantom Power: 48V switchable
Dimensions (W x D x H): 646 x 465 x 95mm
Weight: 9.5kg
