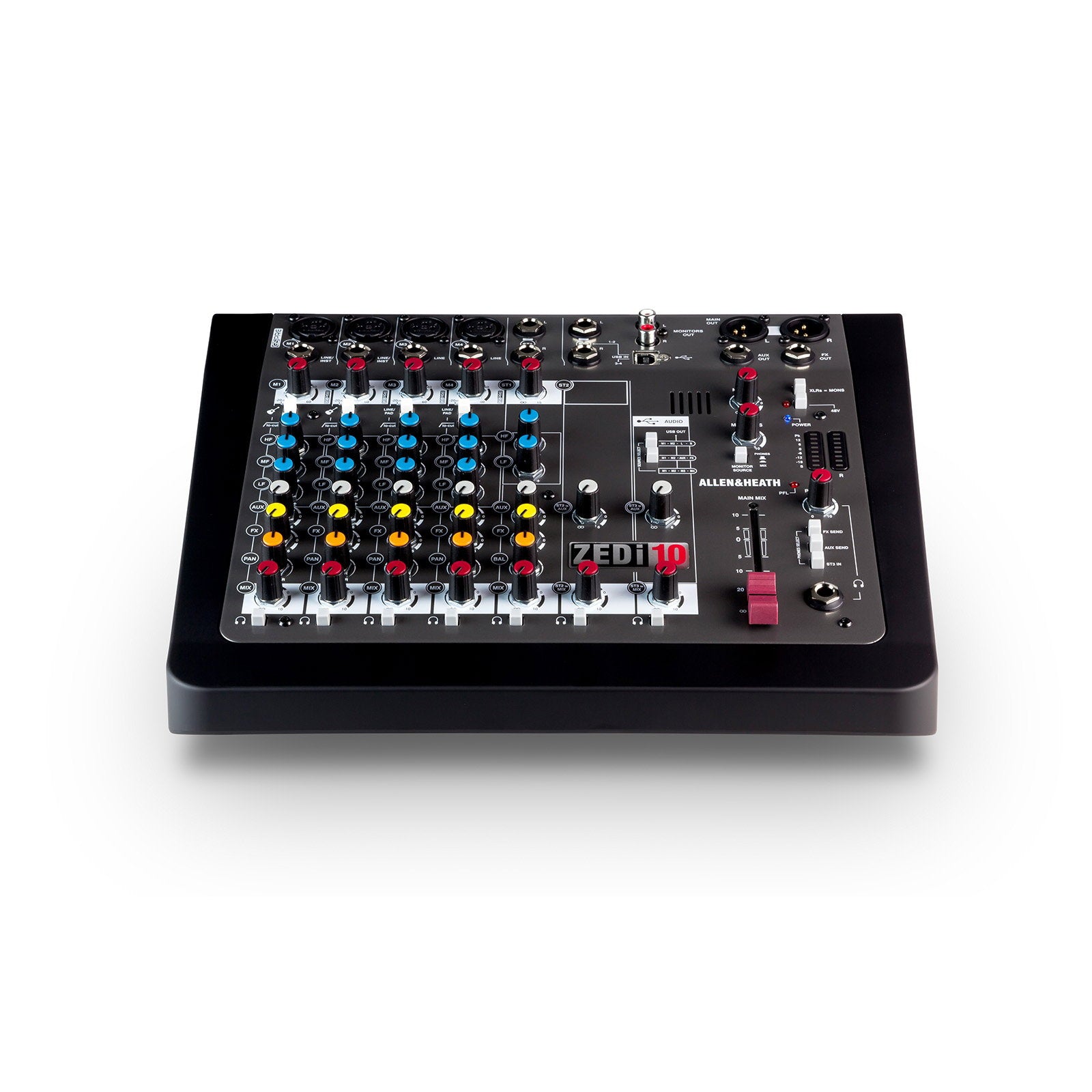

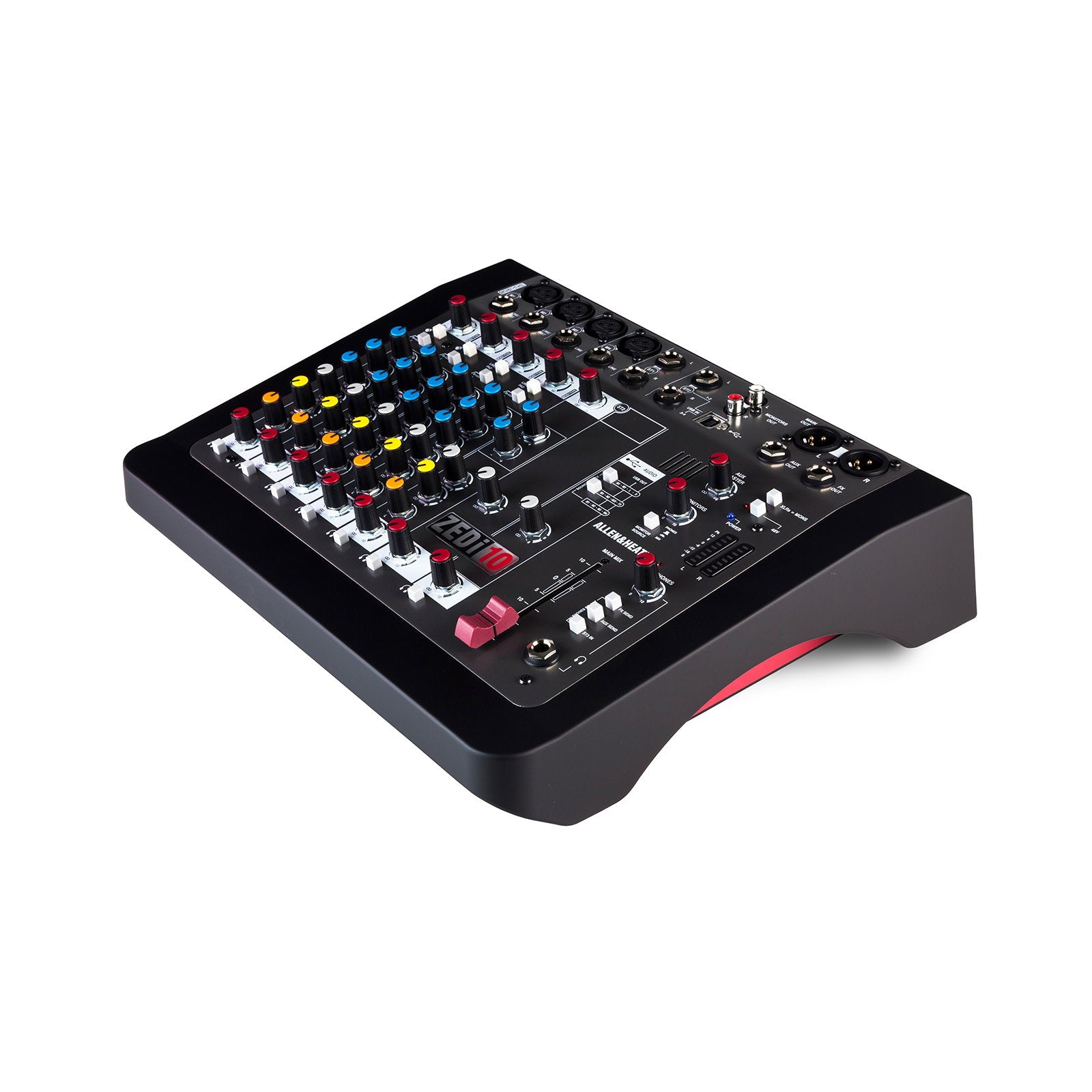

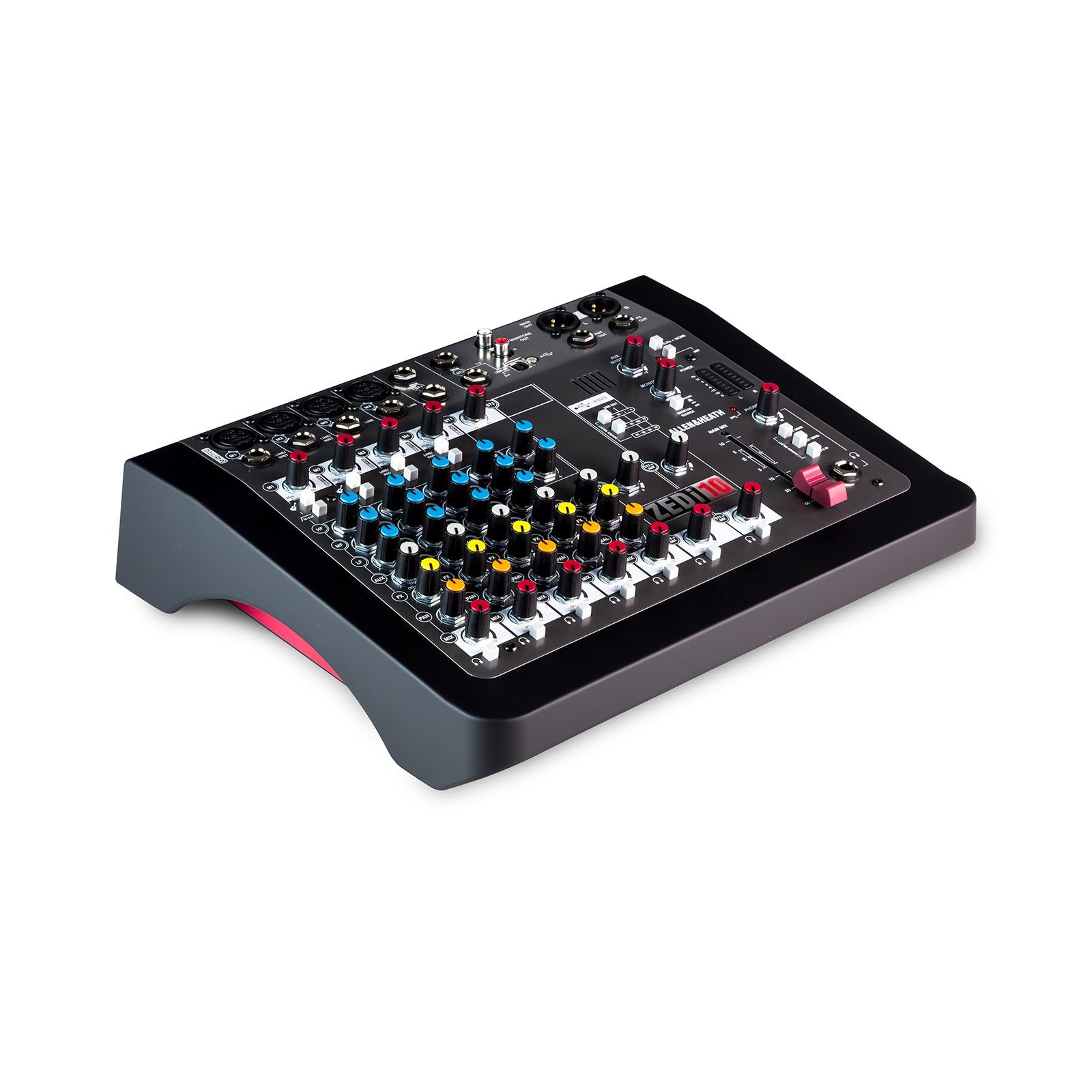

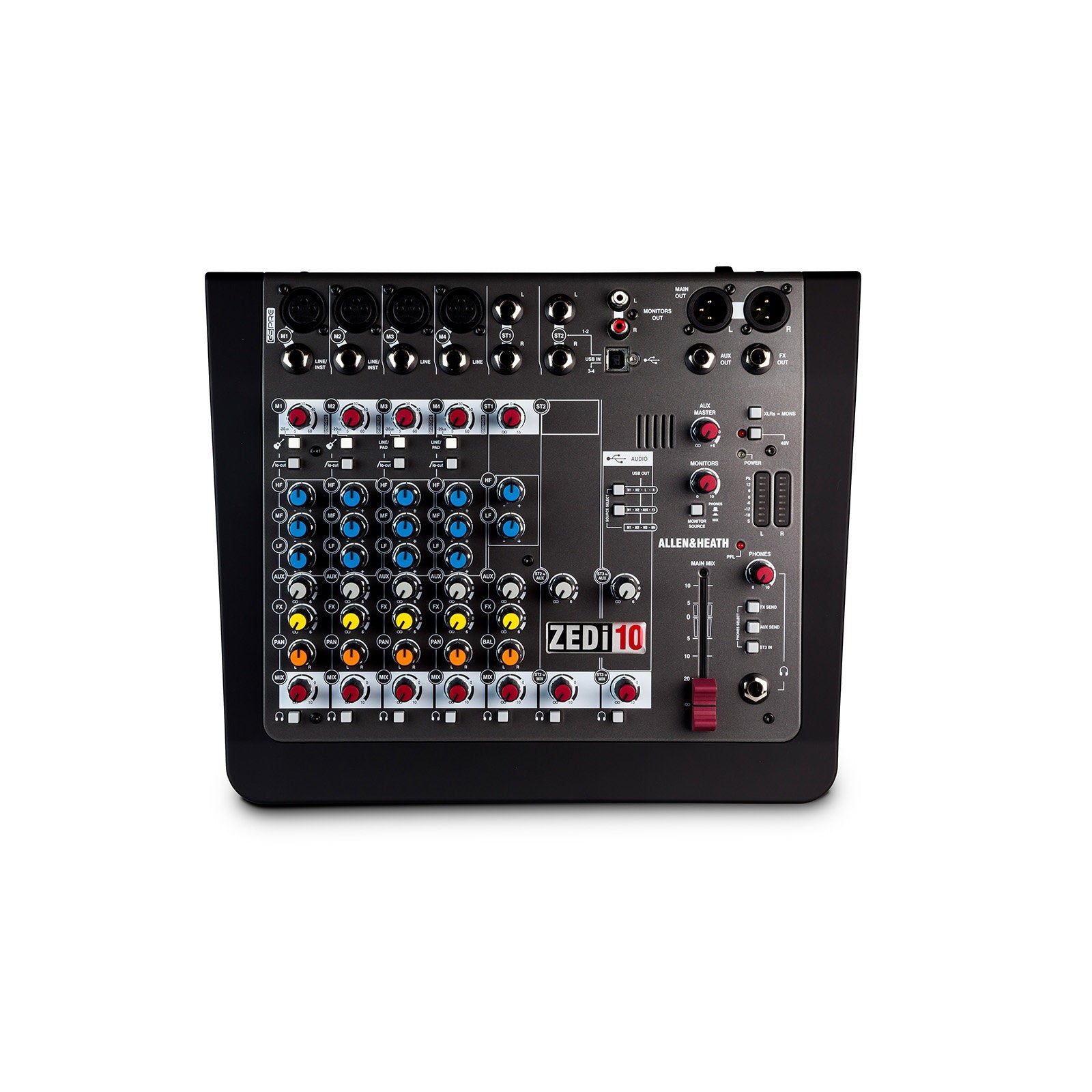

The Allen & Heath ZEDi-10 is a compact 10-channel hybrid mixer combining premium analog mixing with a professional 4-in/4-out 24-bit/96kHz USB audio interface. Designed for musicians podcasters and live performers it features four GSPre mic/line inputs two stereo line inputs Hi-Z instrument-ready channels and intuitive EQ control. Ideal for recording streaming and small venue mixing the ZEDi-10 includes Cubase LE software and offers reliable studio-grade performance in a portable all-metal chassis.
Features:
4 mono mic/line inputs with GSPre preamps for high-quality sound
2 stereo line inputs for keyboards and media players
24-bit/96kHz USB interface for seamless recording and playback
Hi-Z inputs on mono channels for direct instrument connection
3-band EQ on mono channels and 2-band EQ on stereo channels
48V phantom power for condenser microphones
Rugged all-metal chassis for durability
Smooth 60mm main mix fader for precise control
Includes Cubase LE and Cubasis LE software
Inputs: 4 x XLR/TRS combo mic/line, 2 x 1/4" TRS stereo line

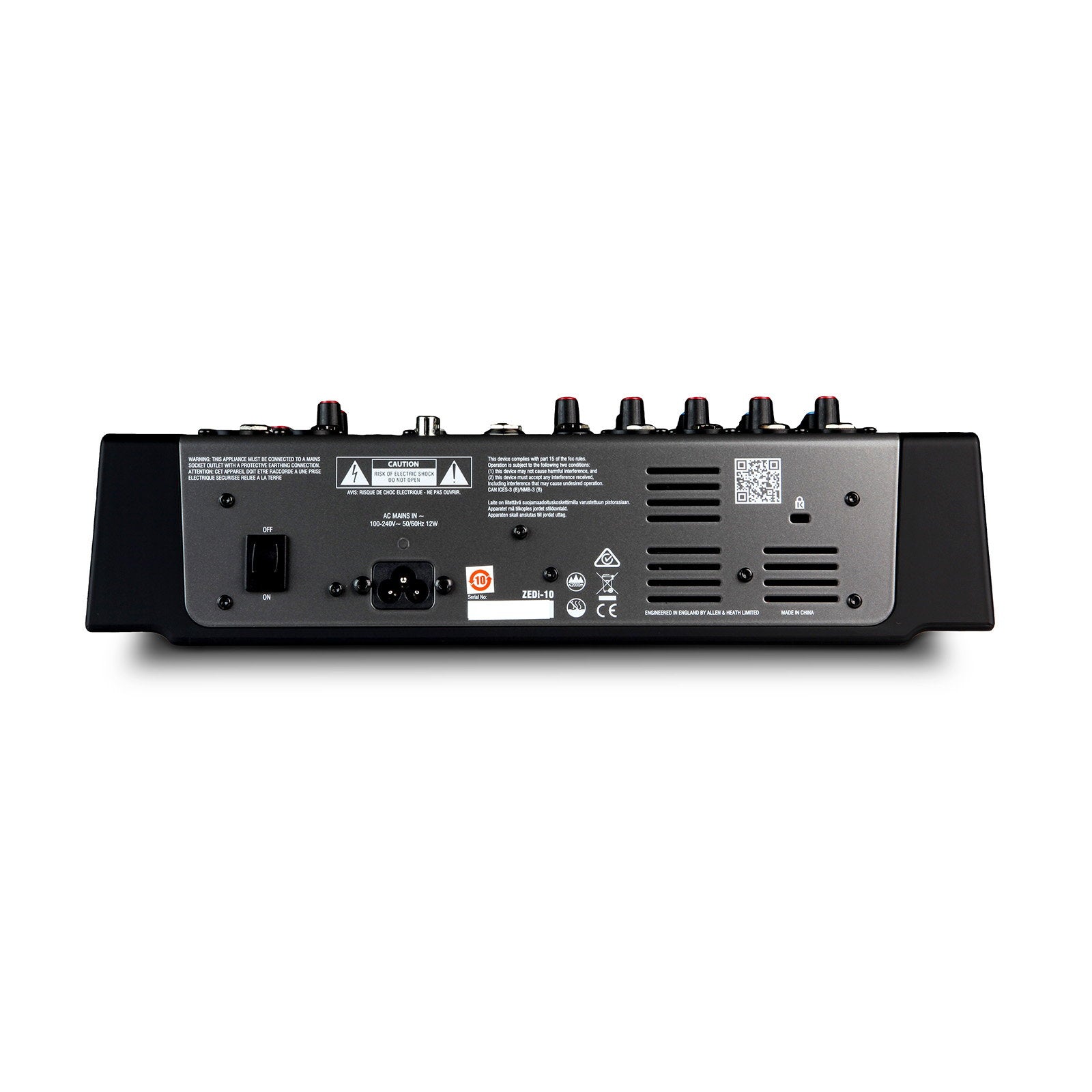

Outputs: 2 x XLR main, 1 x 1/4" TRS headphone, 1 x 1/4" TRS aux, 1 x 1/4" TRS FX, 2 x RCA monitor
USB Interface: 4-in/4-out, 24-bit/96kHz
EQ: 3-band EQ (High: 12kHz, Mid: 2.5kHz, Low: 80Hz) on mono channels; 2-band EQ on stereo channels
Phantom Power: 48V, switchable
Dimensions (W x D x H): 332.7 x 274.3 x 96.5 mm
Weight: 2.2 kg
