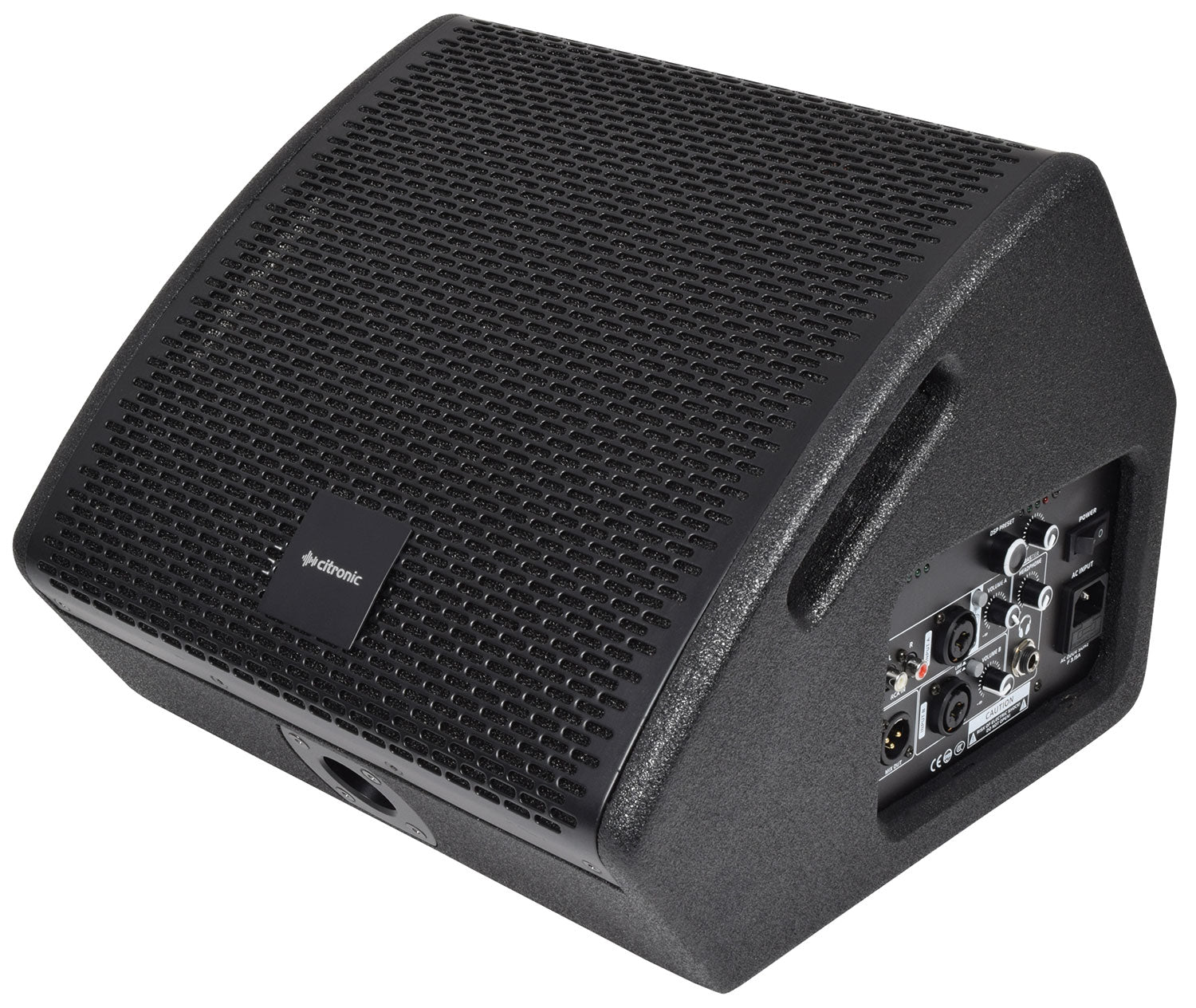

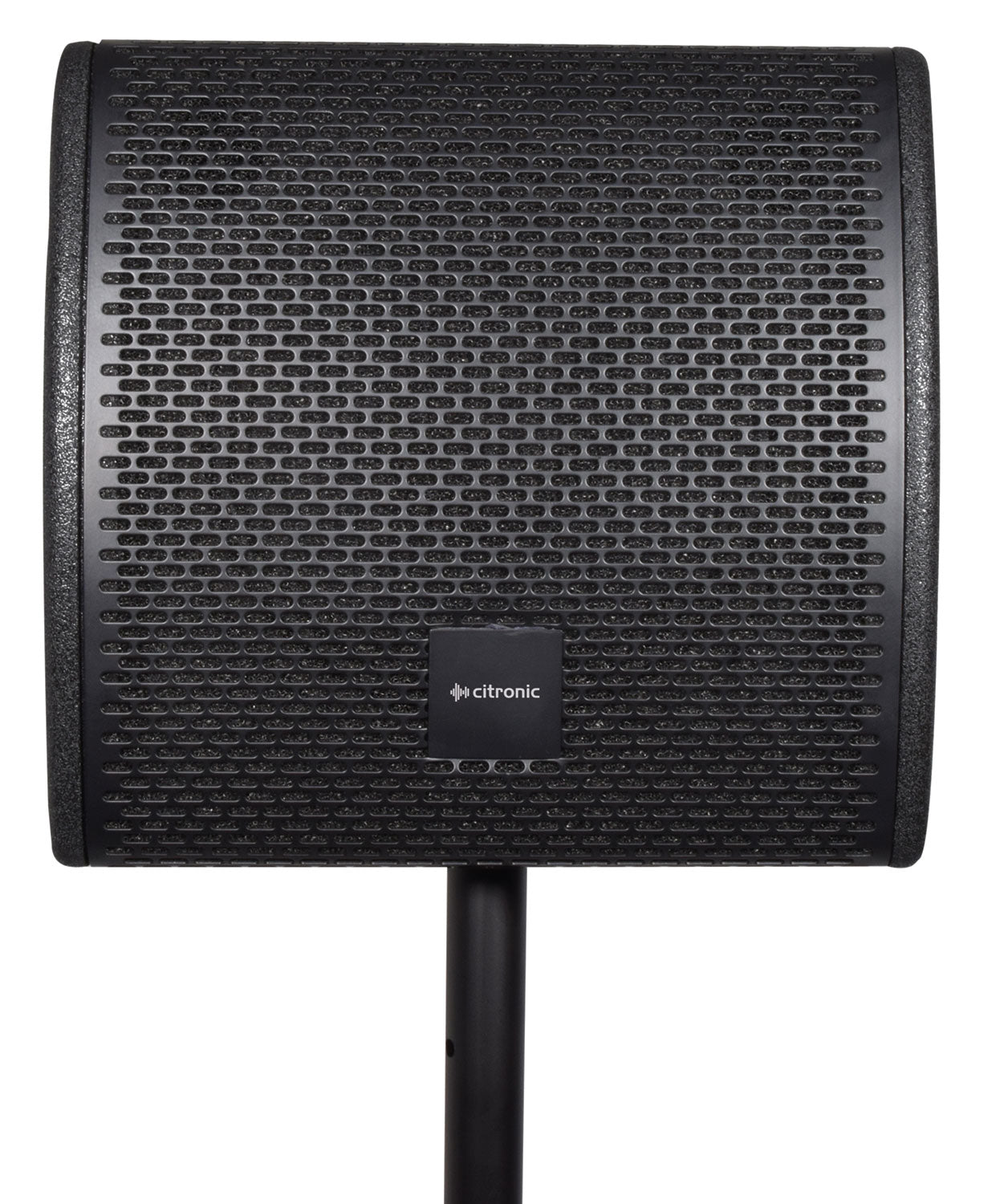

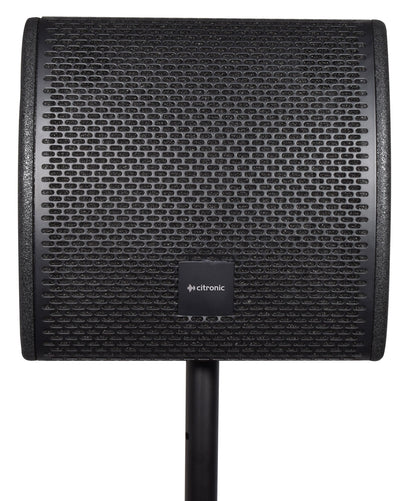

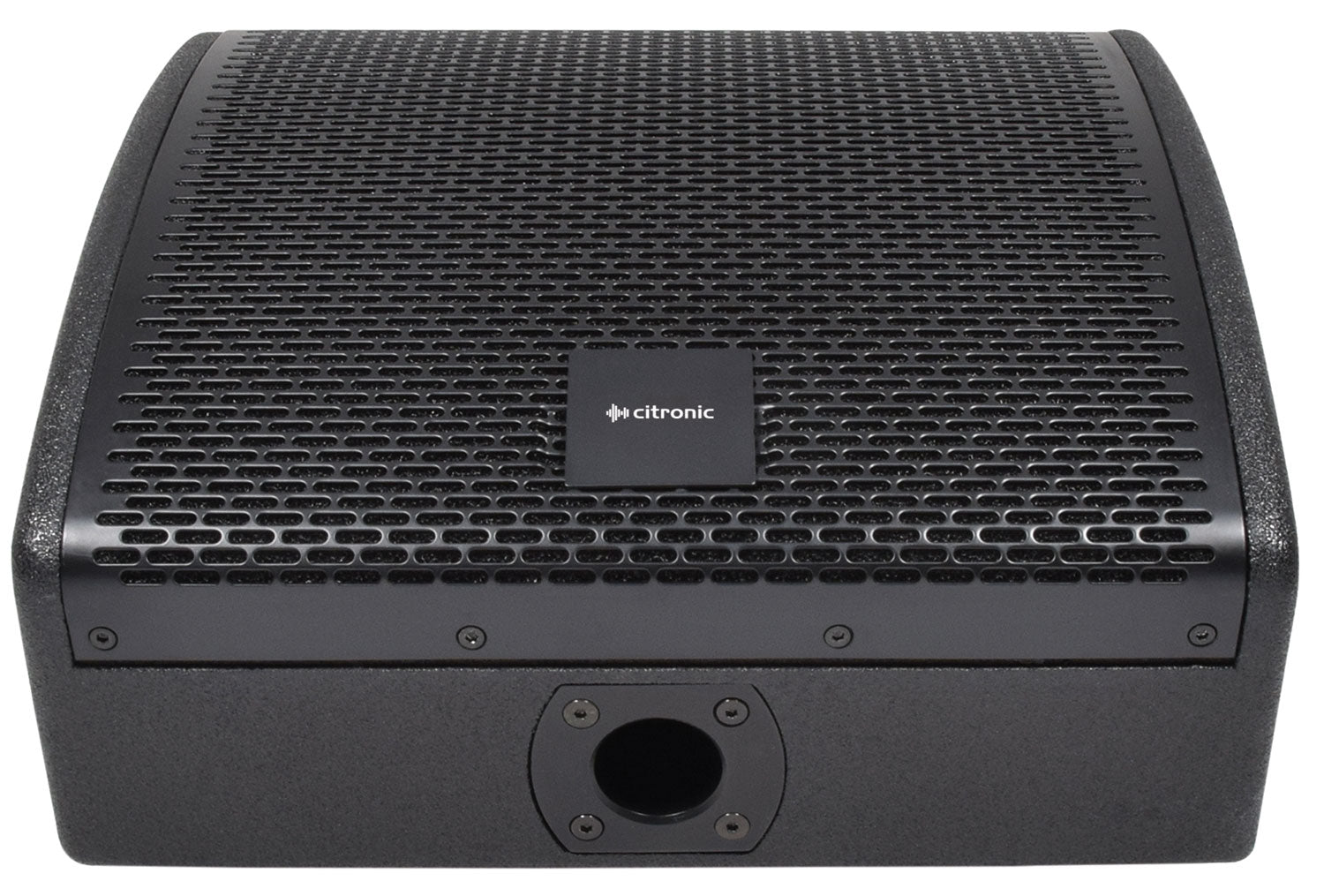

Active wedge speaker in a durable, texture coated wooden cabinet with minimal footprint. The main driver delivers punchy low frequencies with the help of 2 bass ports and a concentric titanium tweeter is mounted within the main driver for perfectly aligned, sparkling high frequencies. An arched powder-coated steel grille provides heavy duty protection from the rigours of stage performances and forms 2 side handle holes for easy portability. Powered from its inbuilt class-D amplifier, each wedge has enough output to deliver clear sound quality in high SPL situations and is even serviceable independently as a compact PA cabinet, thanks to the 35mm pole mount socket and M8 flying points. A DSP section provides 5 different EQ profiles to accurately match the program material and sound environment. In addition to a mic/lin input and separate line input, the CM-series wedges also have a Bluetooth® receiver, which makes it ideal as a musician's practice amplifier. Surprisingly powerful in such a compact enclosure, this speaker offers high quality sound output with flexible options for stage foldback, keyboard and e-drum amplification.
High power class-D bi-amplifier
Bluetooth receiver
5 Profile DSP section
Concentric HF driver

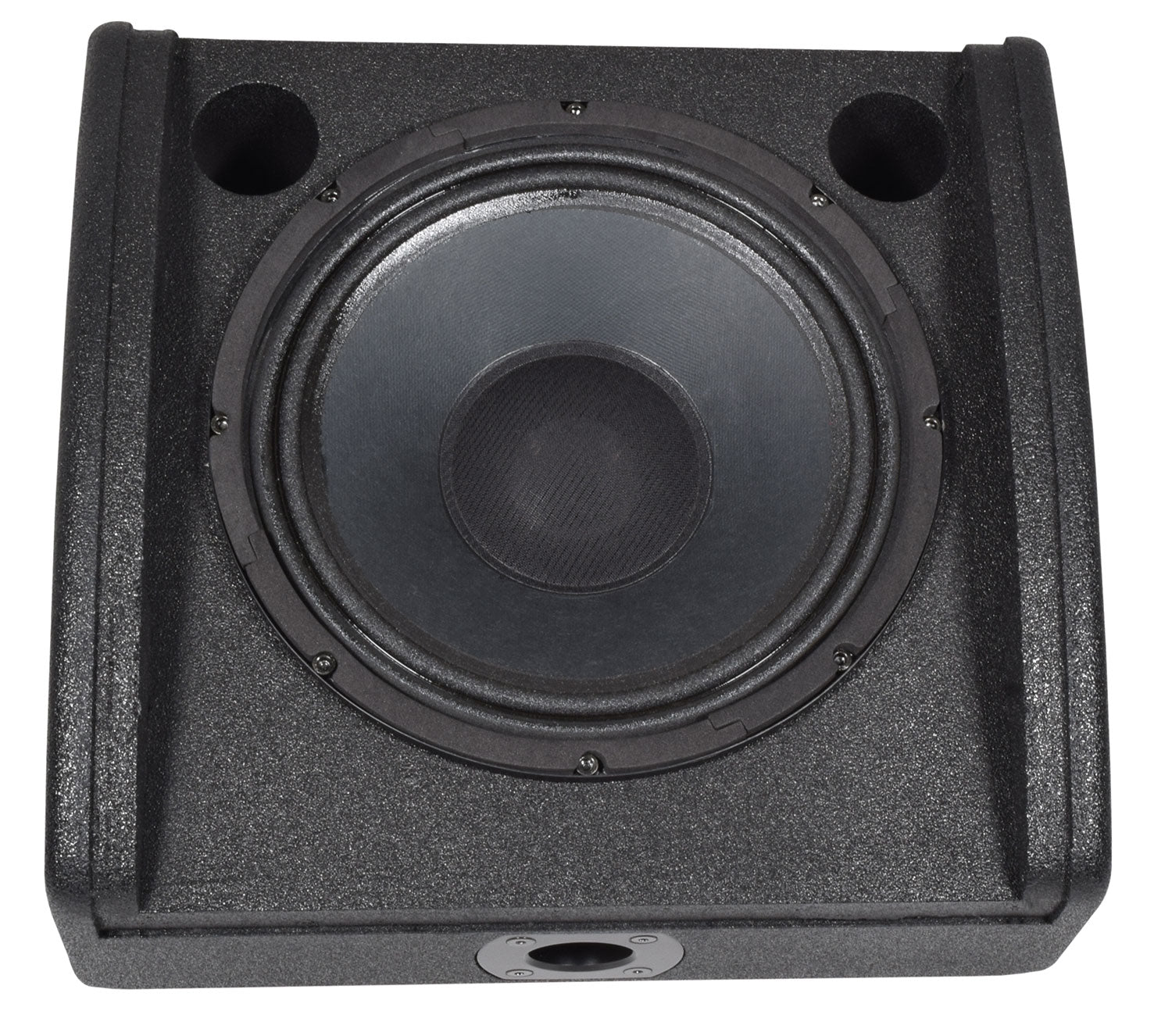

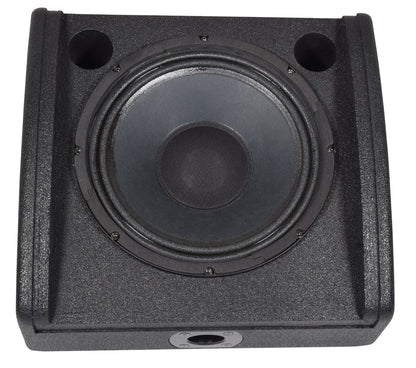

Main driver 250mmØ (10") with concentric tweeter
Voice coil 50mmØ (2")
Magnet weight 1.13kg (40oz)
Output power rms 250Wrms
Output power peak 400W
Frequency response 65Hz - 20kHz
Sensitivity 95dB
Dimensions 355 x 350 x 275mm
Amplifier : construction Class-D
Impedance 4 Ohms
HF driver 44mmØ (1.75") Ti compression driver

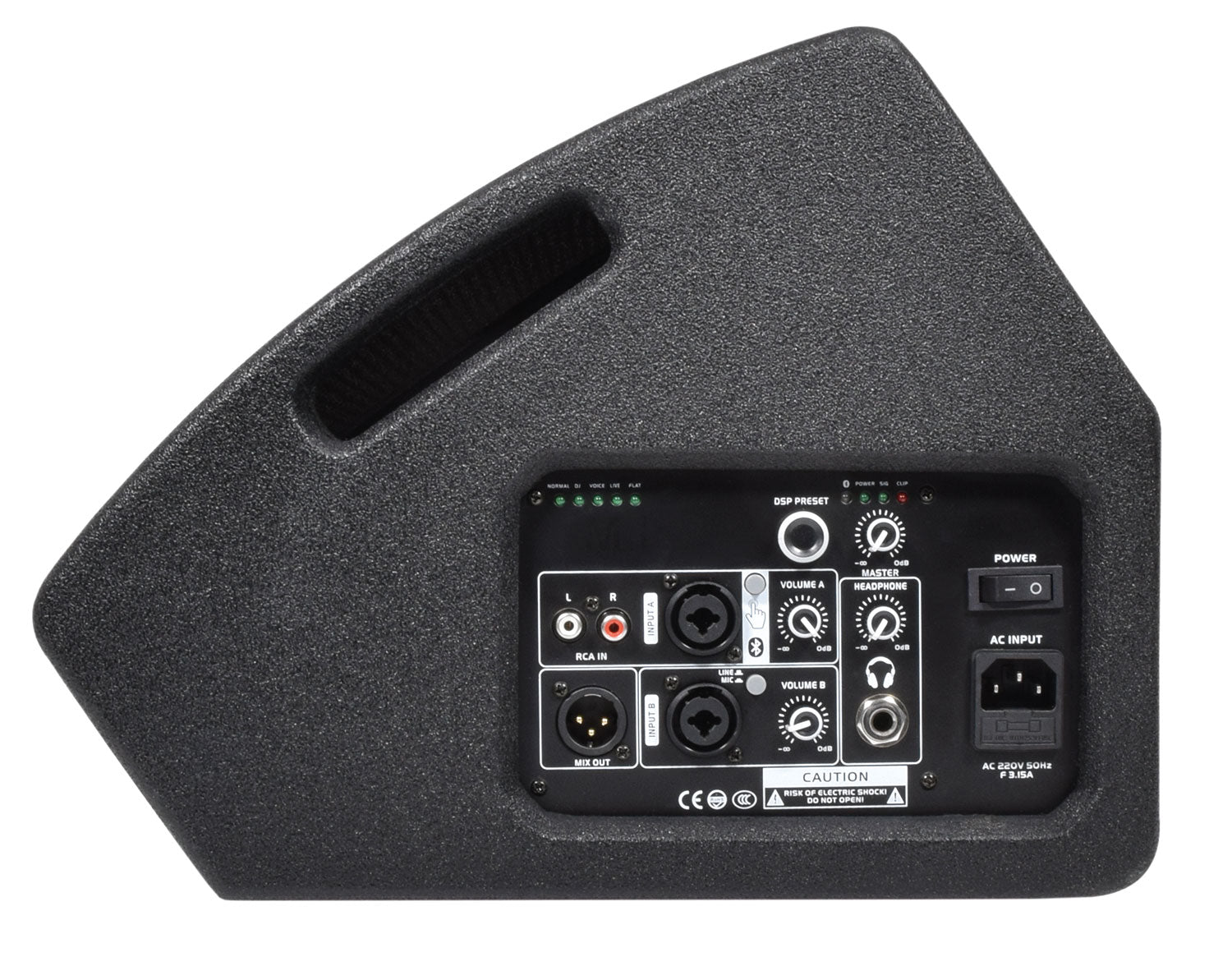

Inputs Mic/Line (XLR/jack), Line (XLR/jack/RCA), Bluetooth®
Outputs Headphones (6.35mm jack), Mix out (XLRM)
DSP settings Normal, DJ. Voice, Live, Flat
Weight 9.87kg
