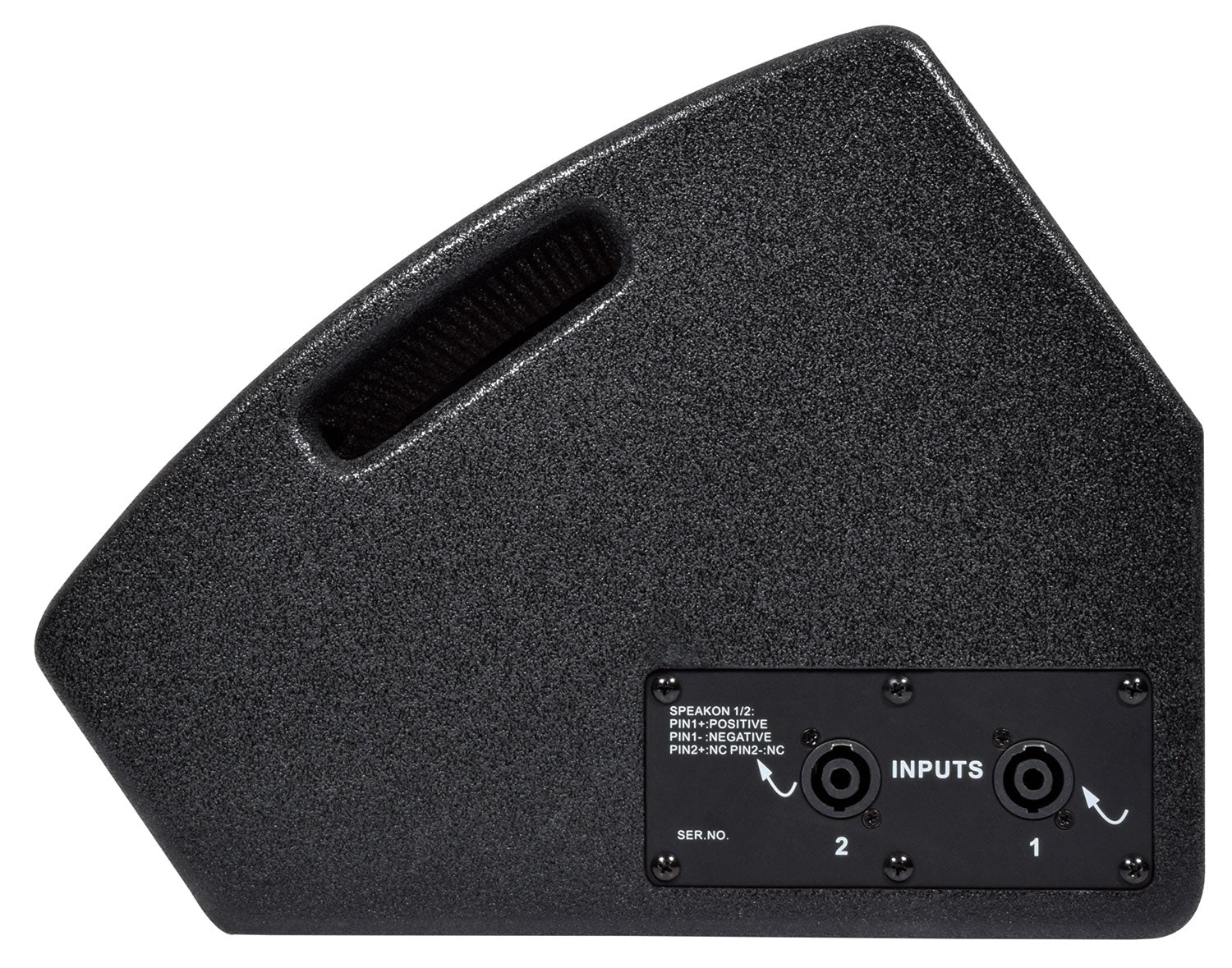

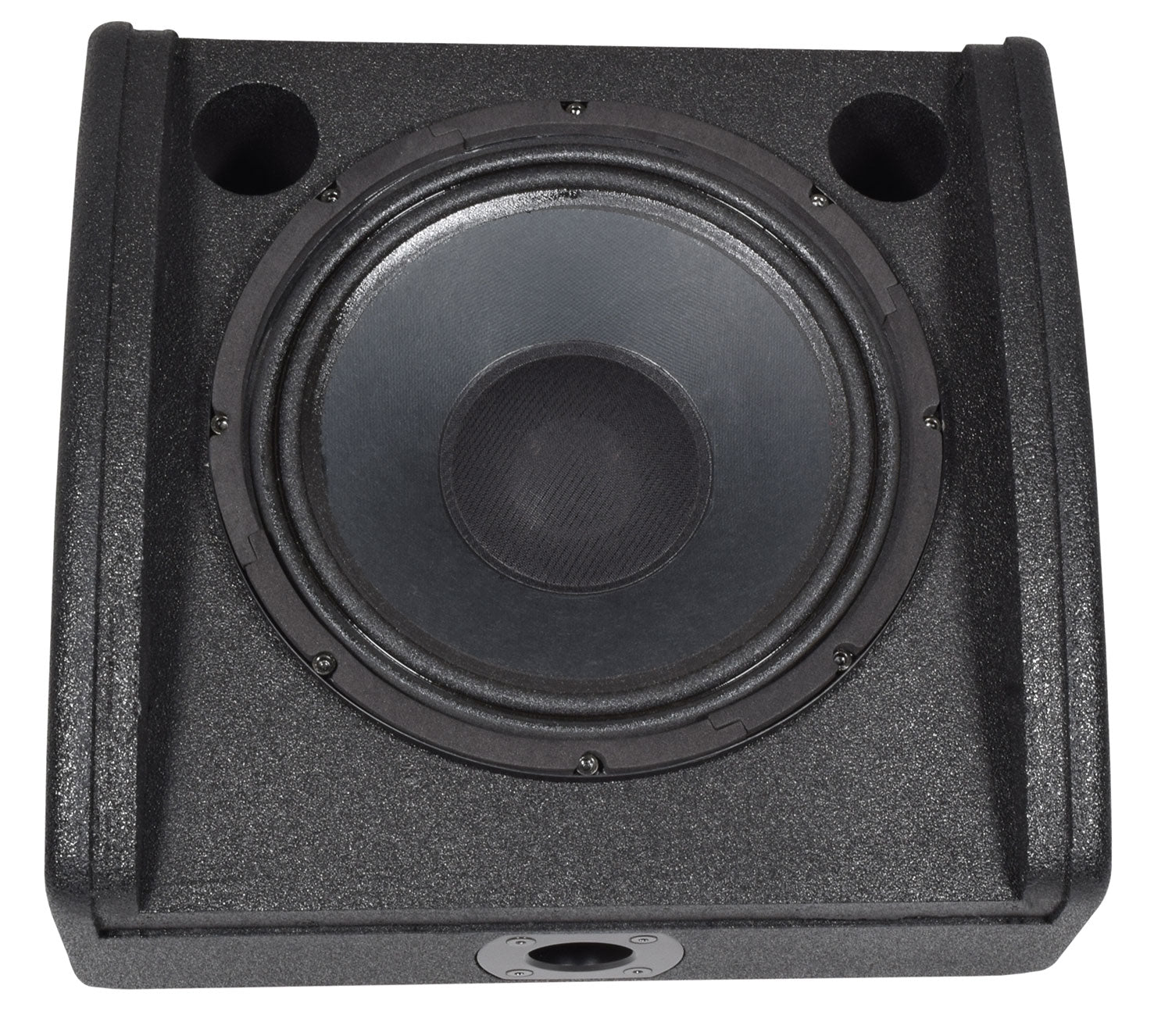

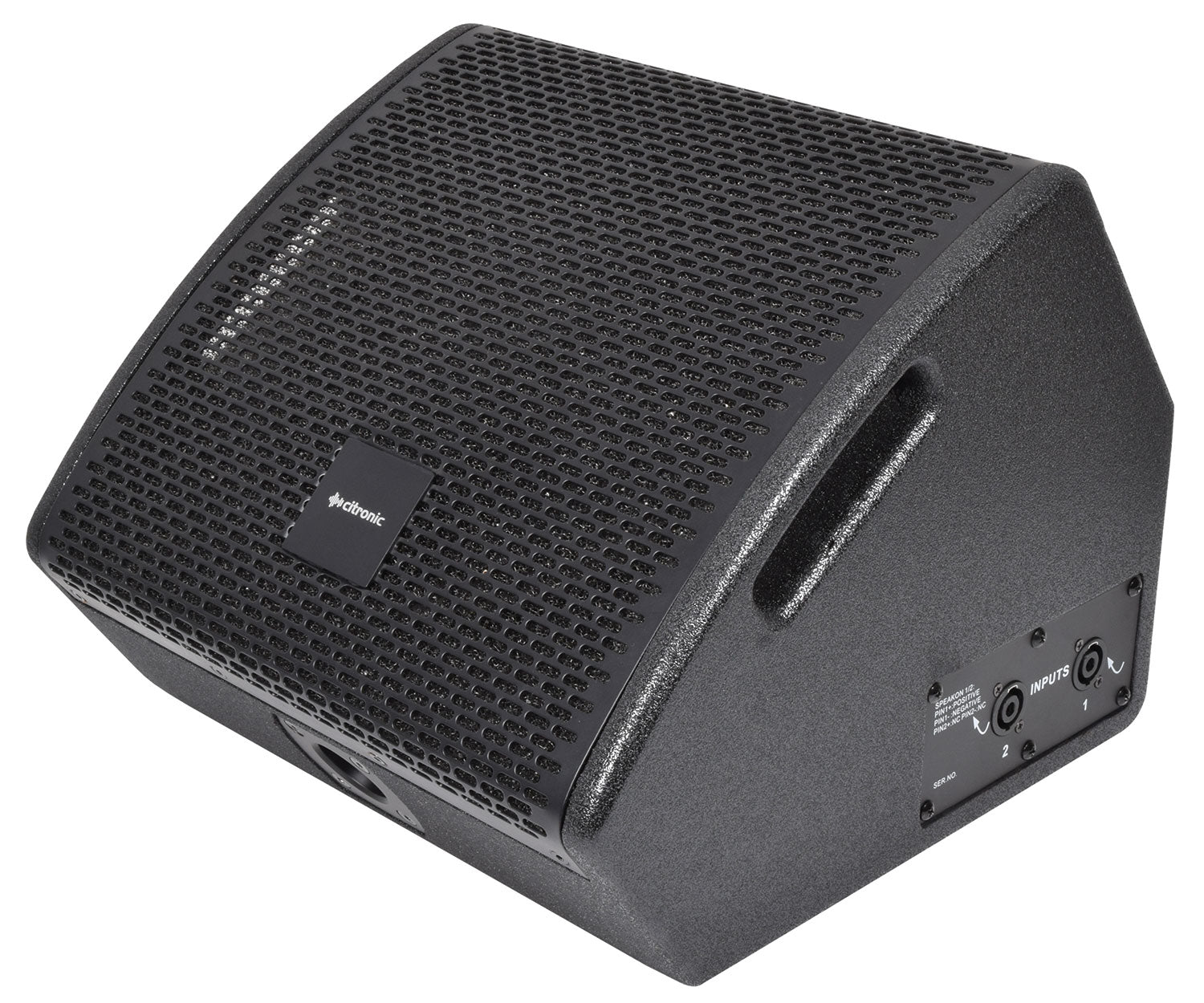

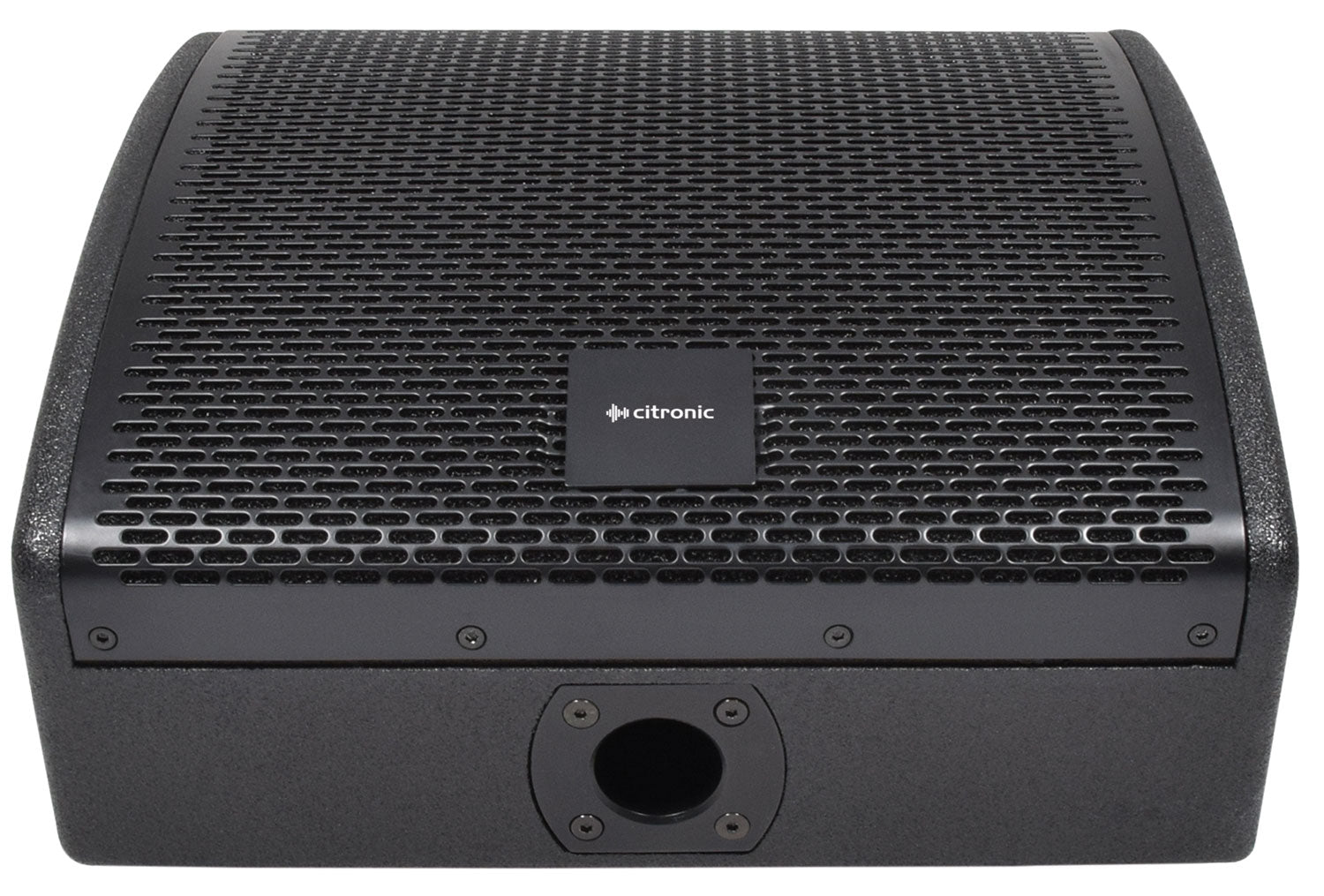

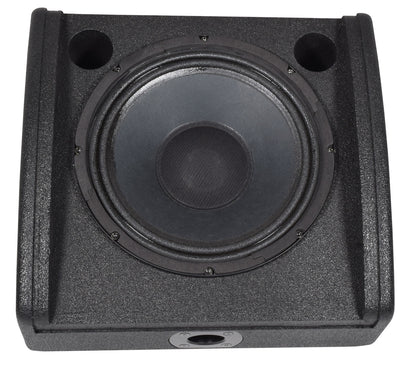

Passive wedge speaker in a durable, texture coated plywood cabinet with minimal footprint. The main driver delivers punchy low frequencies with the help of 2 bass ports and a concentric titanium tweeter is mounted within the main driver for perfectly aligned, sparkling high frequencies. An arched powder-coated steel grille provides heavy duty protection from the rigours of stage performances and forms 2 side handle holes for easy portability. A pair of twist-lock SPK connectors are wired in parallel to accept input from an amplifier and enable connection onto a further passive speaker or monitor if required. The compact size and high power handling means that this is a very capable unit for stage foldback but can equally serve as a compact PA speaker, thanks to its 35mm pole-mount socket and M8 flying points.
Concentric HF driver
Compact cabinet with minimal footprint

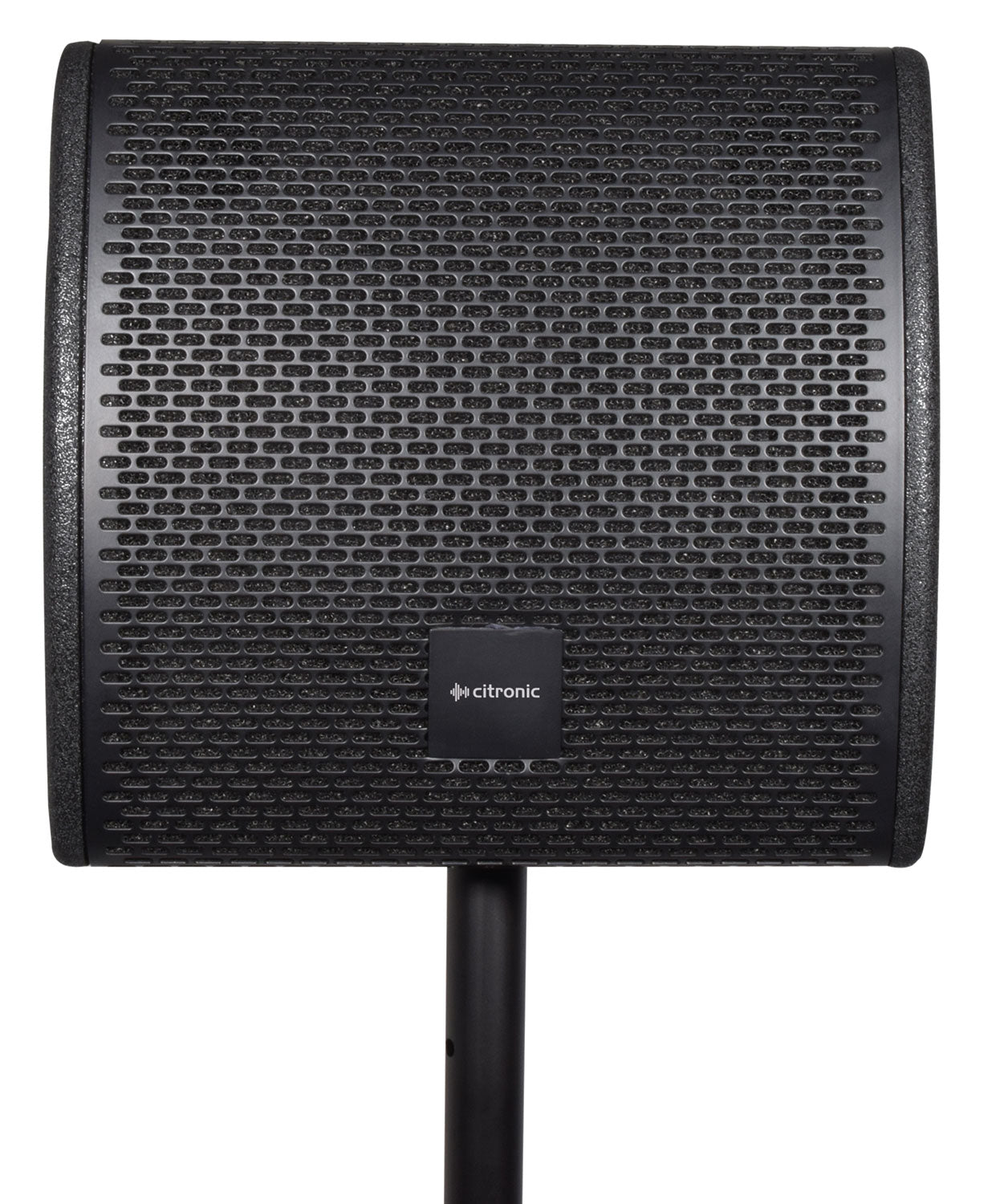

2 side handles and 35mm pole-mount socket
Weight 8.64kg
Sensitivity 95dB
Dimensions 355 x 350 x 275mm
Frequency response 65Hz - 20kHz
Power handling : peak 450W
Power handling : rms 250W
Magnet weight 1.13kg (40oz)
Voice coil 50mmØ (2")
Main driver 250mmØ (10") with concentric tweeter
Main driver 250mmØ (10")
Impedance 8 Ohms
Inputs 2 x SPK connectors (parallel pins 1±)
HF driver 44mmØ (1.75") titanium driver
