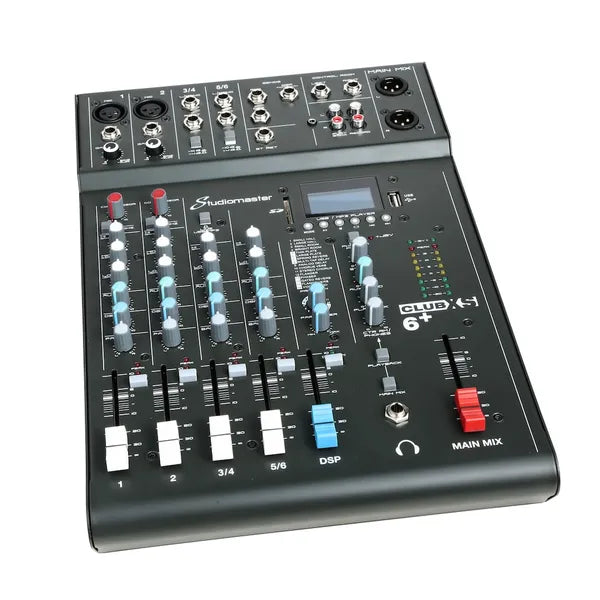

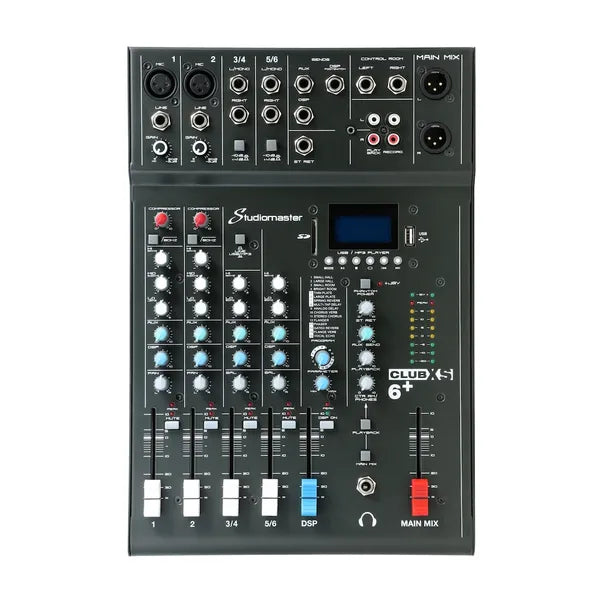

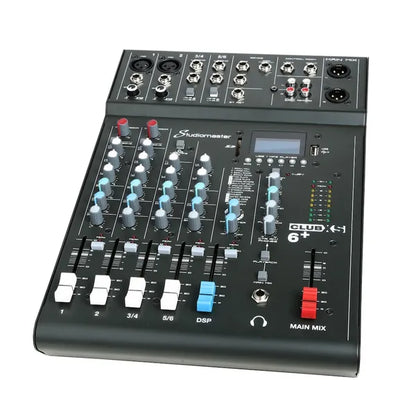

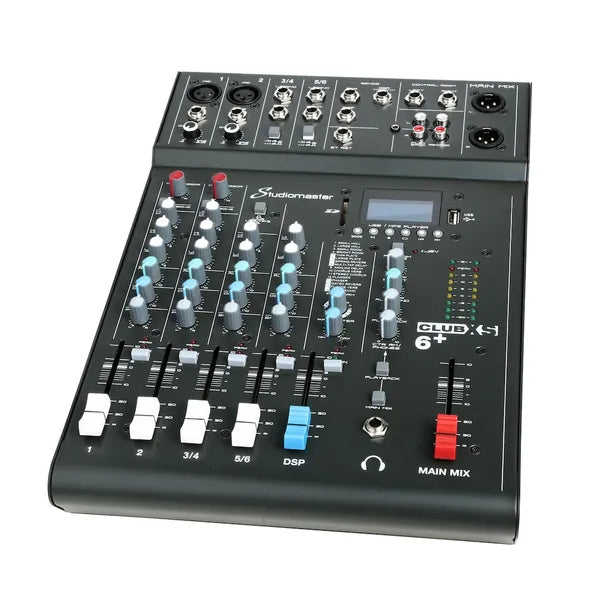

The Club XS+ models incorporate all of the great features of the standard Club range, now with the inclusion of a DSP On/Off foot switch socket and an aesthetic overhaul, redesigned control knobs and finished in Studiomaster digital black.
Compact, portable mixing consoles featuring 5 to 16 inputs, Bluetooth connectivity, on-board DSP effects and USB/SD card playback and recording functions. 3 band EQ, 2 auxiliaries, balanced mic/line connectors, compressor control, and a useful mute switch on all Mic and line input channels, 2 band EQ with 2 auxiliaries for both stereo channels. There are also balanced XLR connectors for the main outputs, jacks for auxiliaries and control room, and phono connectors for analogue record and playback.
Features:
6 inputs (2 mic channels, 2 stereo channels)
16 DSP effects (including reverb, delay, and stereo effects)
Footswitch socket for easy effect control
Bluetooth playback functionality
USB/SD card media module for playback and recording
Compressor and 100Hz high-pass filter on all mic channels
Mute button on all channels
3-band EQ on mic channels for superior tone shaping
2-band EQ on stereo channels to add warmth to instruments
AUX & DSP outputs for monitor mixes and external effects
Stereo return with simple level control
RCA/Phono playback and recording capabilities
Headphones and control room output for complete monitoring
+48V phantom power on mic channels for condenser microphones
