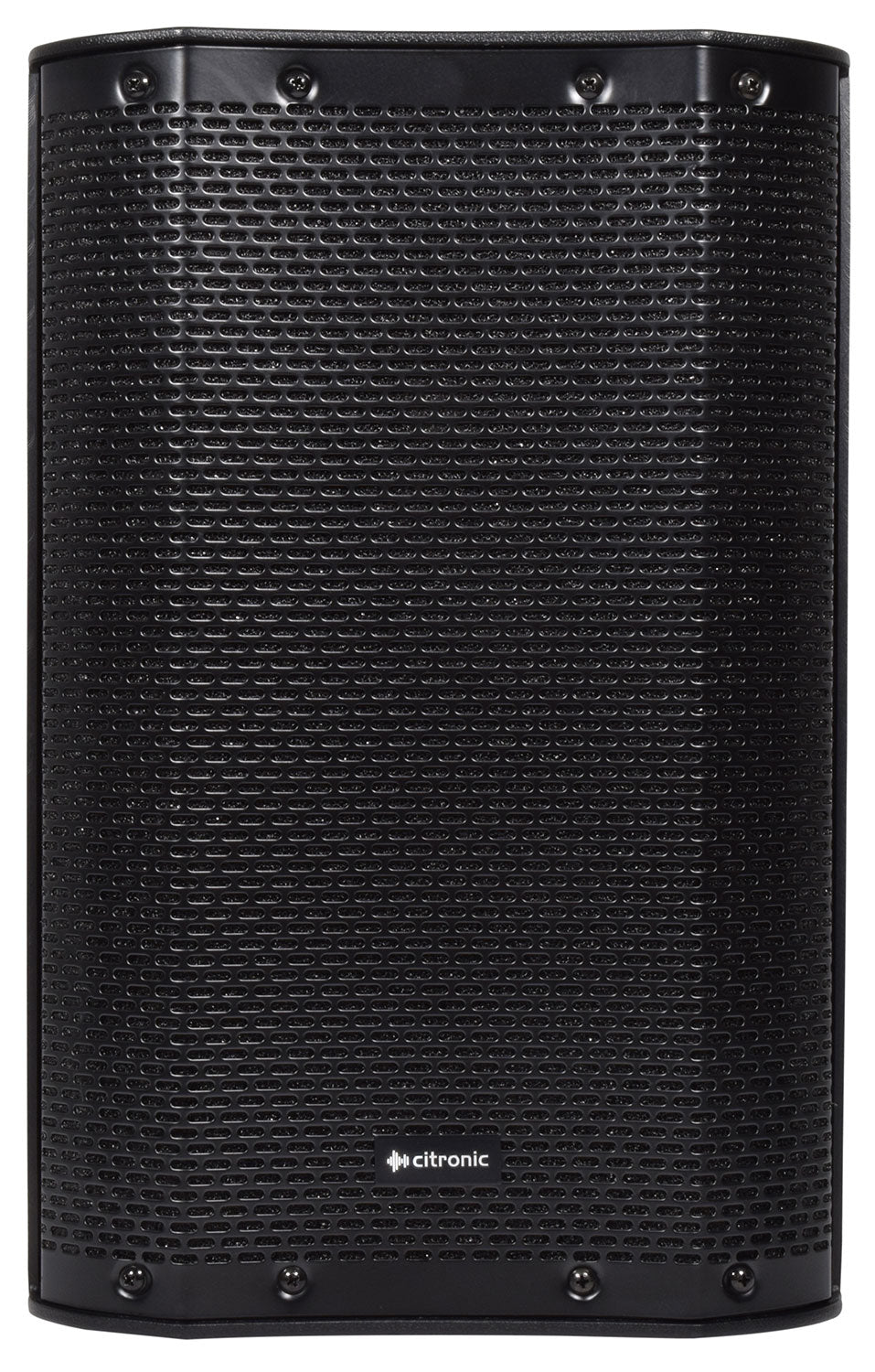

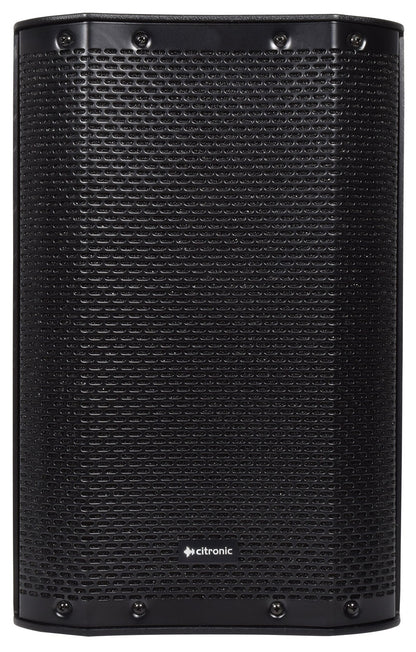

CASA-8A

Versatile full-range active moulded PA cabinets with built-in high efficiency class D amplifier. A DSP controller offers 5 switchable output profiles which are suited to different program material. Inputs are provided on XLR/jack with mic/line level switching and RCA line connectors. A built-in audio module provides playback from USB or SD media and Bluetooth wireless pairing. These cabinets are fully featured for virtually any PA application and pair perfectly with the CASA series sub cabinets for high energy sound reinforcement.

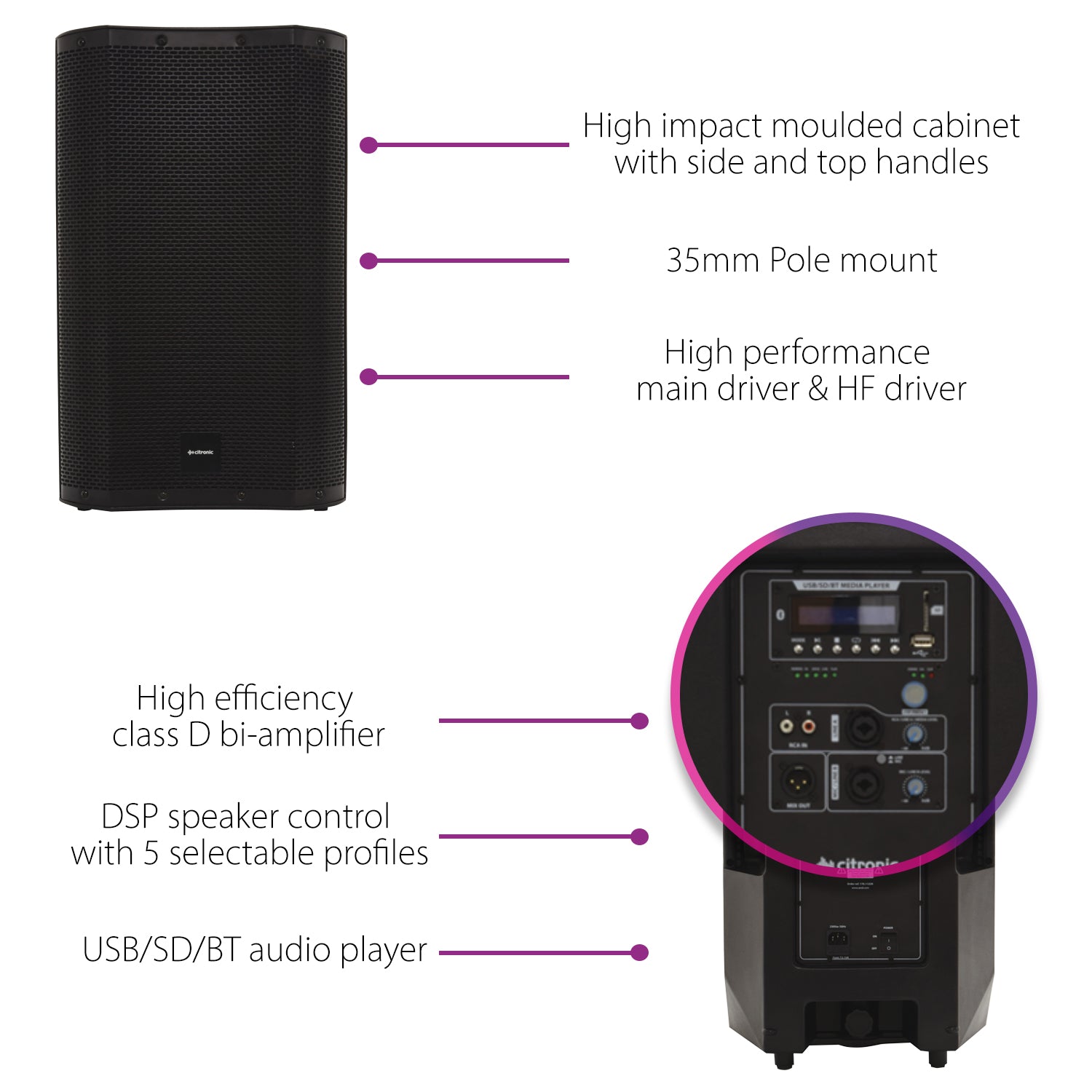

High efficiency class D bi-amplifier section
DSP speaker control with 5 selectable profiles
Inbuilt USB/SD audio player
Bluetooth wireless connectivity
High impact moulded cabinet with side and top handles.
35mm pole mount socket

Weight      8.71kg
Dimensions              435 x 278 x 245mm

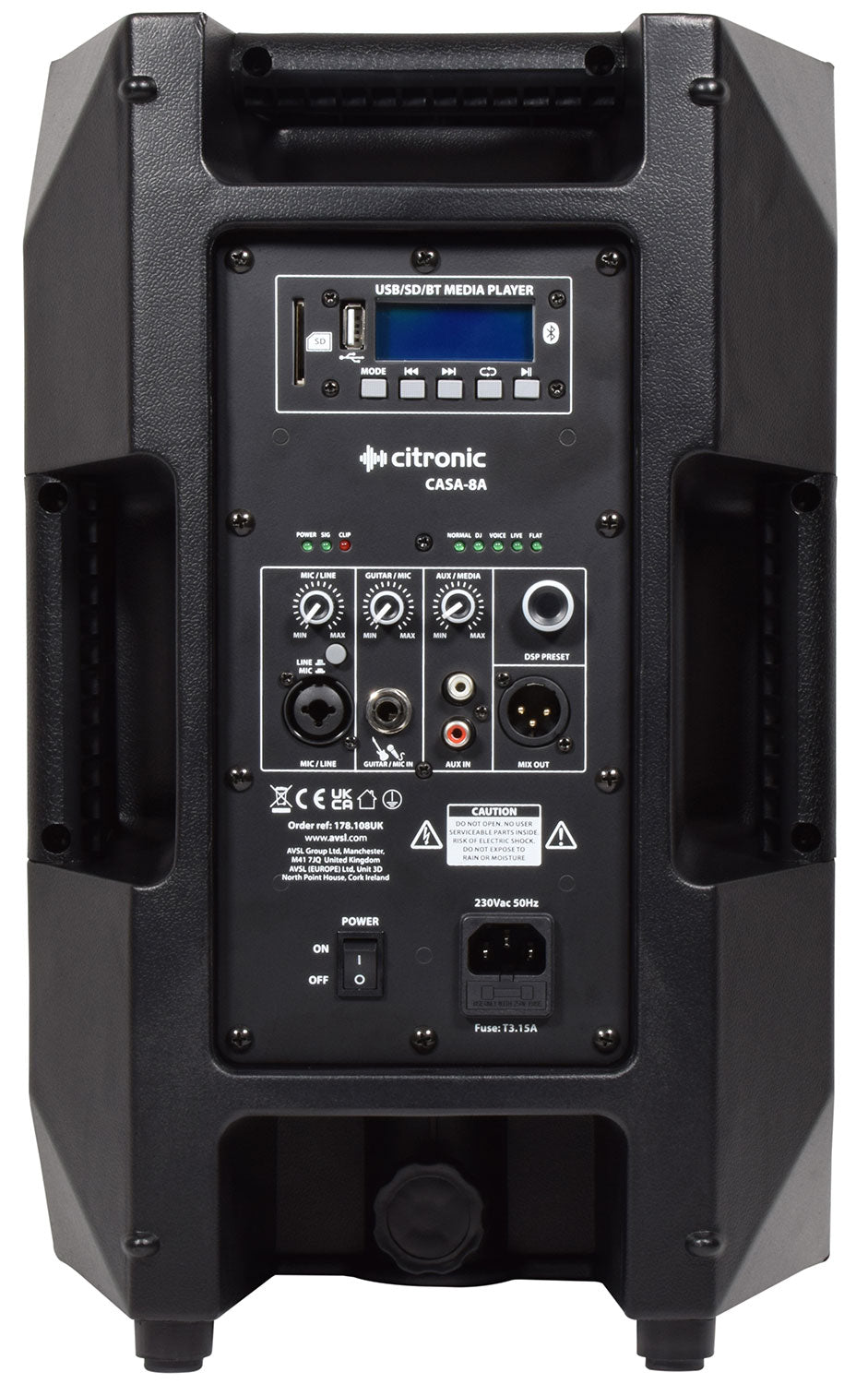

Inputs                XLR/jack mic/line, 6.3mm jack mic/instrument, L+R RCA line
Frequency response                60Hz - 19kHz
SPL max.              120.0dB
Sensitivity              94dB
Output power peak               800W
Output power : max.                400W
Output power : rms                200W
HF driver                  25mmØ (1") Ti compression driver
Voice coil               50mmØ (2")
Main driver                200mmØ (8")
Power supply               230Vac, 50Hz (IEC)
Audio source                   USB/SD player + Bluetooth receiver
Line output             XLR
DSP settings          Normal, DJ. Voice, Live, Flat
