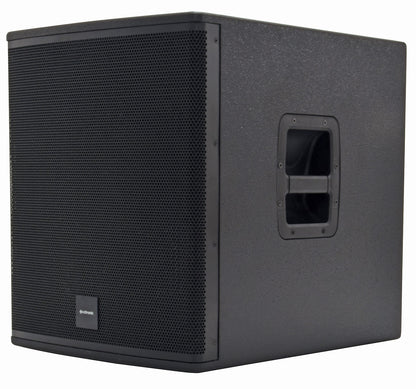

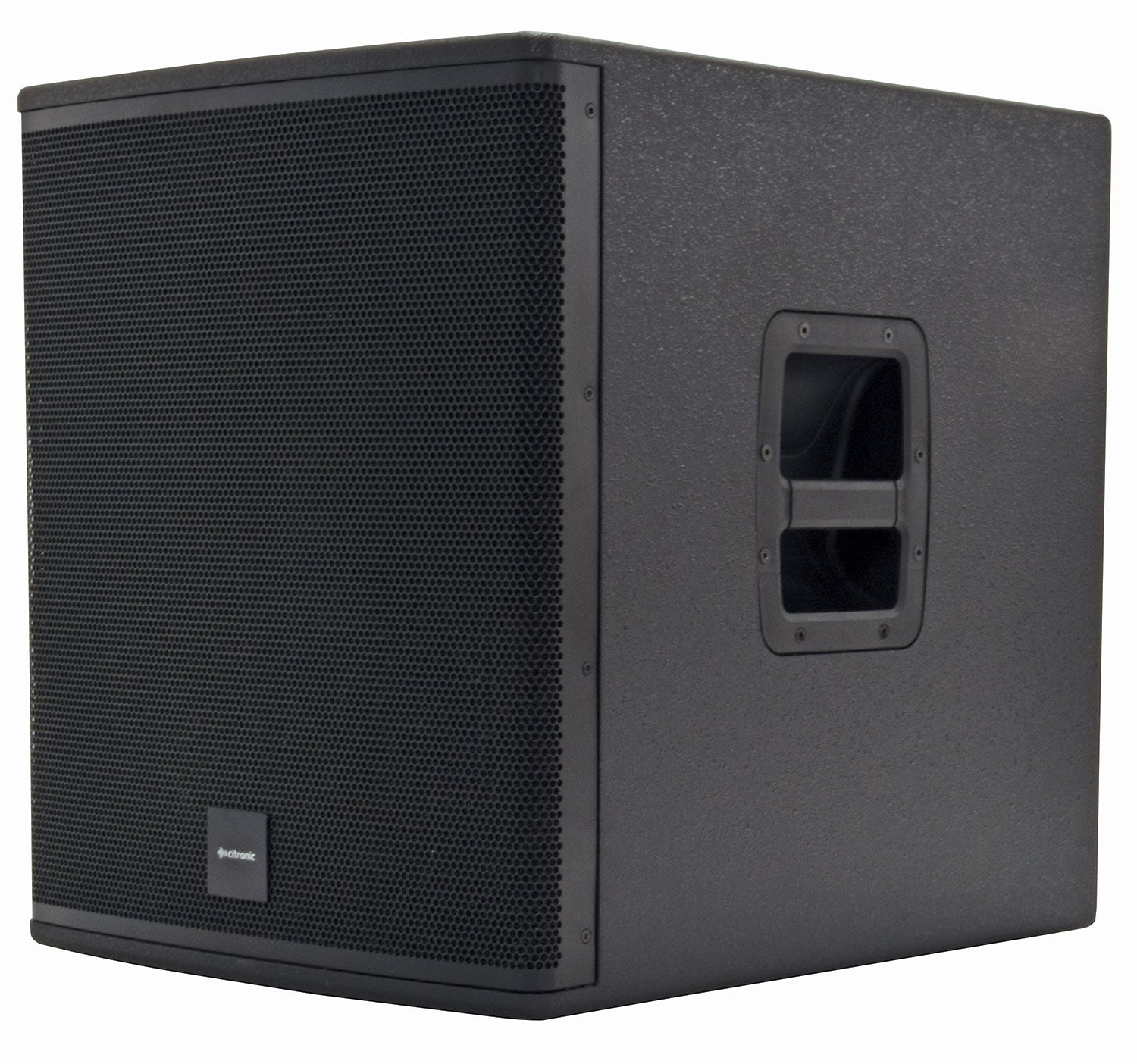

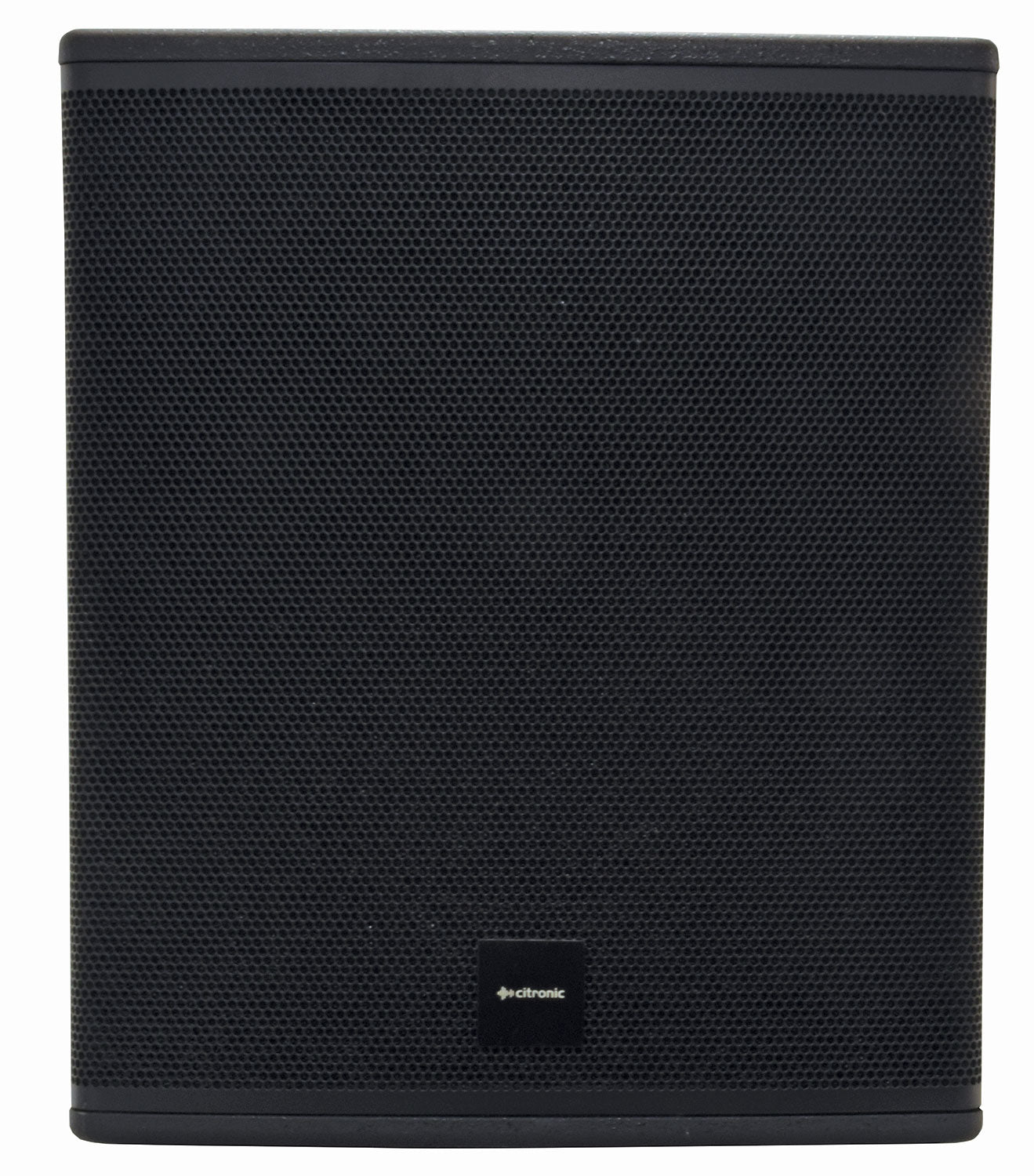

Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.

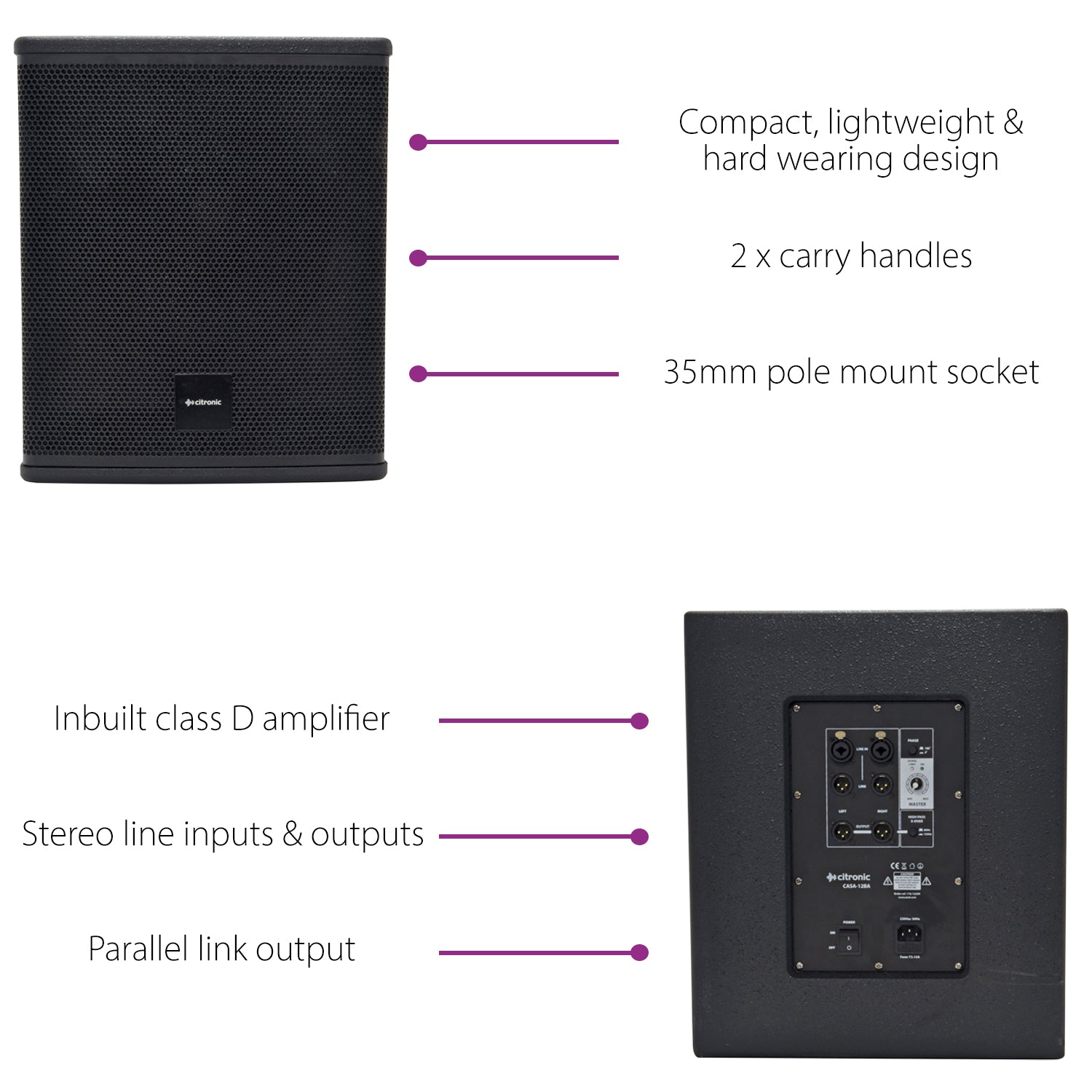

Compact and lightweight design
15mm MDF cabinet with polyurea finish
2 x side carry handles
35mm pole mount socket
15" and 18" models include mounting points for castors
Weight 25.42kg
Dimensions 564 x 540 x 448mm
Frequency response 50 - 150Hz
SPL max. 123.5dB
Peak output 1800W
Output power : max. 900W
Output power : rms 500W
Voice coil 75mmØ (3")
Sub driver 380mmØ (15")
Power supply 230Vac, 50Hz (IEC)
Construction 15mm MDF with durable texture paint finish
Hardware 2 x side carry handles + 35mm pole mount socket
Amplifier : construction Class D

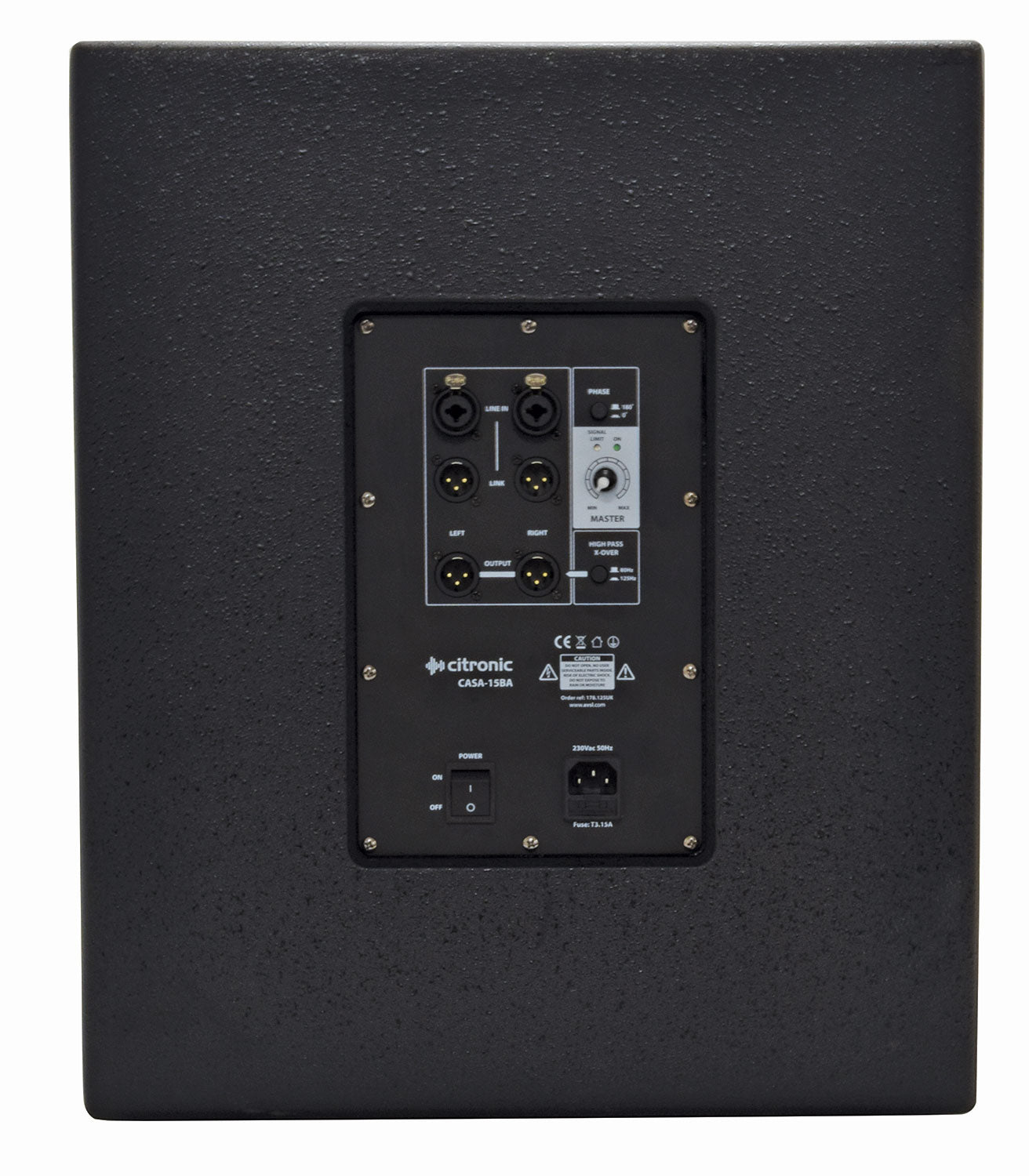

Line inputs L+R balanced XLR
Line outputs L+R balanced XLR & L+R link XLR
Controls Output level, phase switch, high pass x-over (output)
