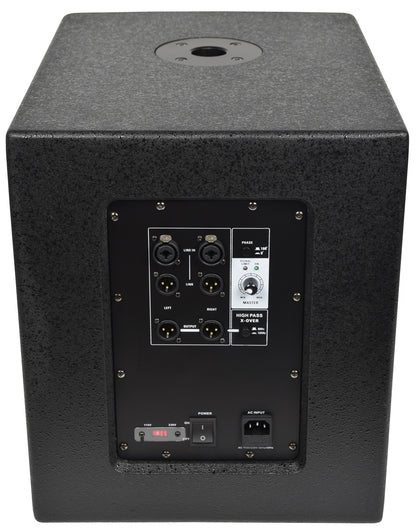

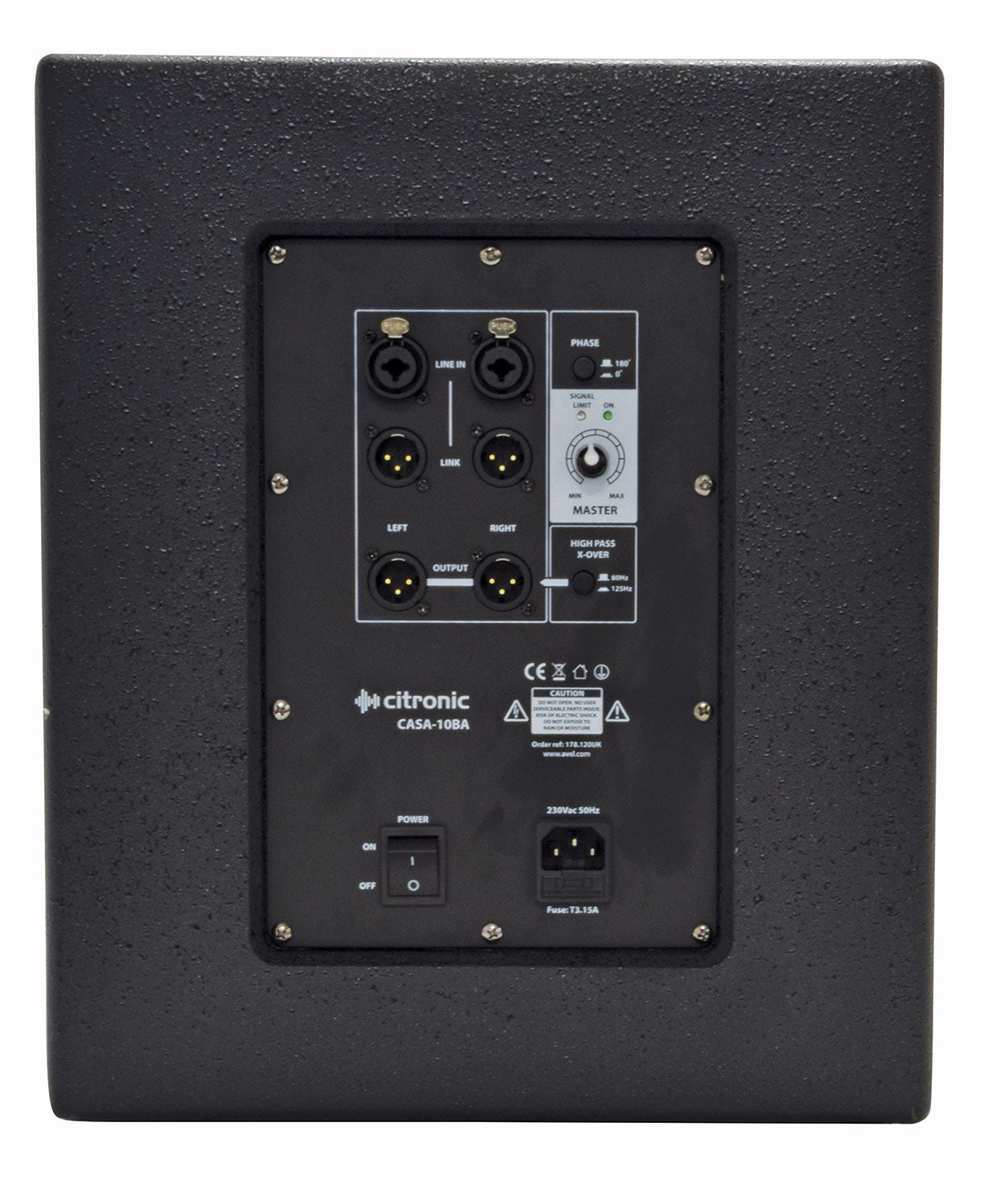

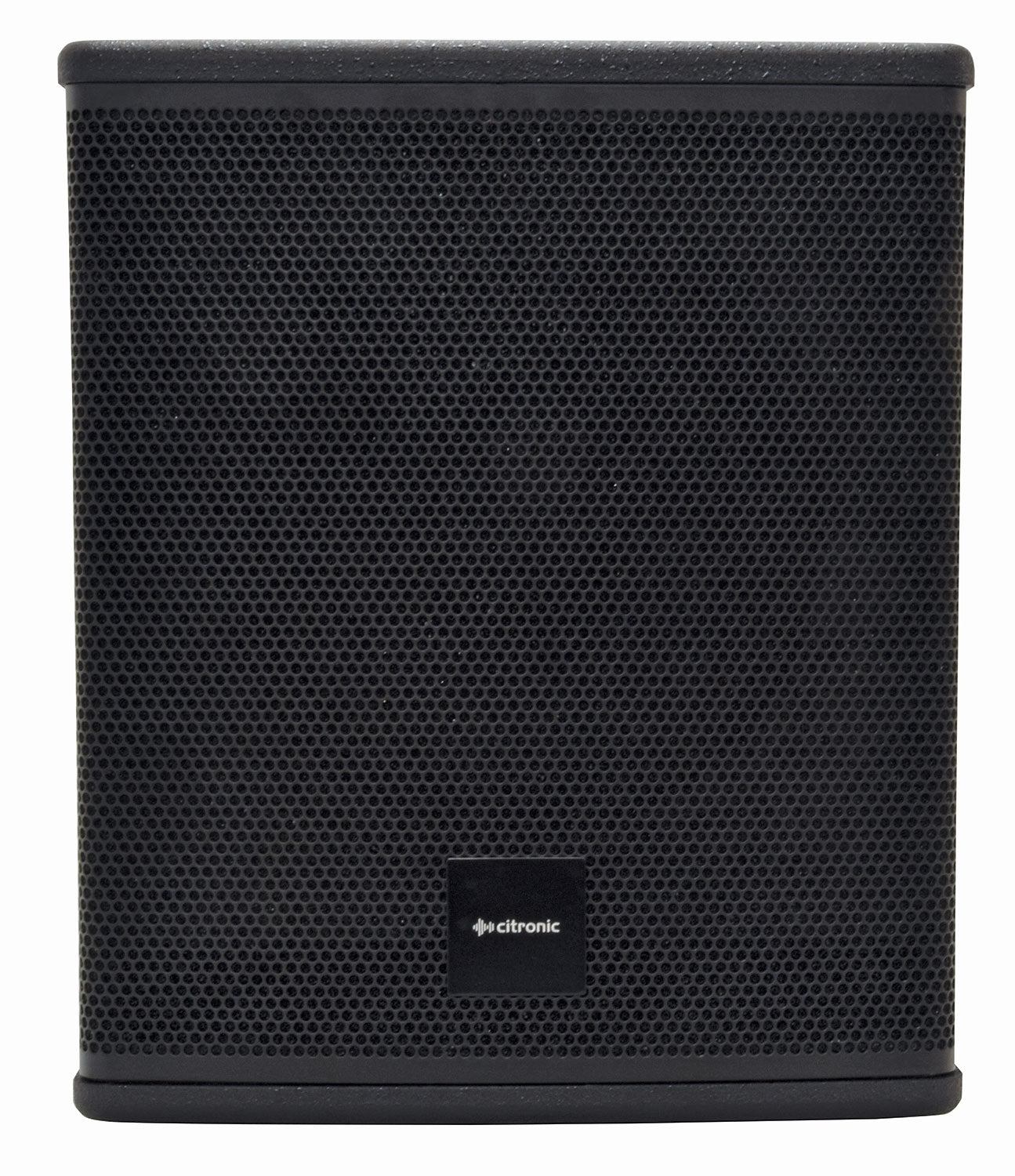

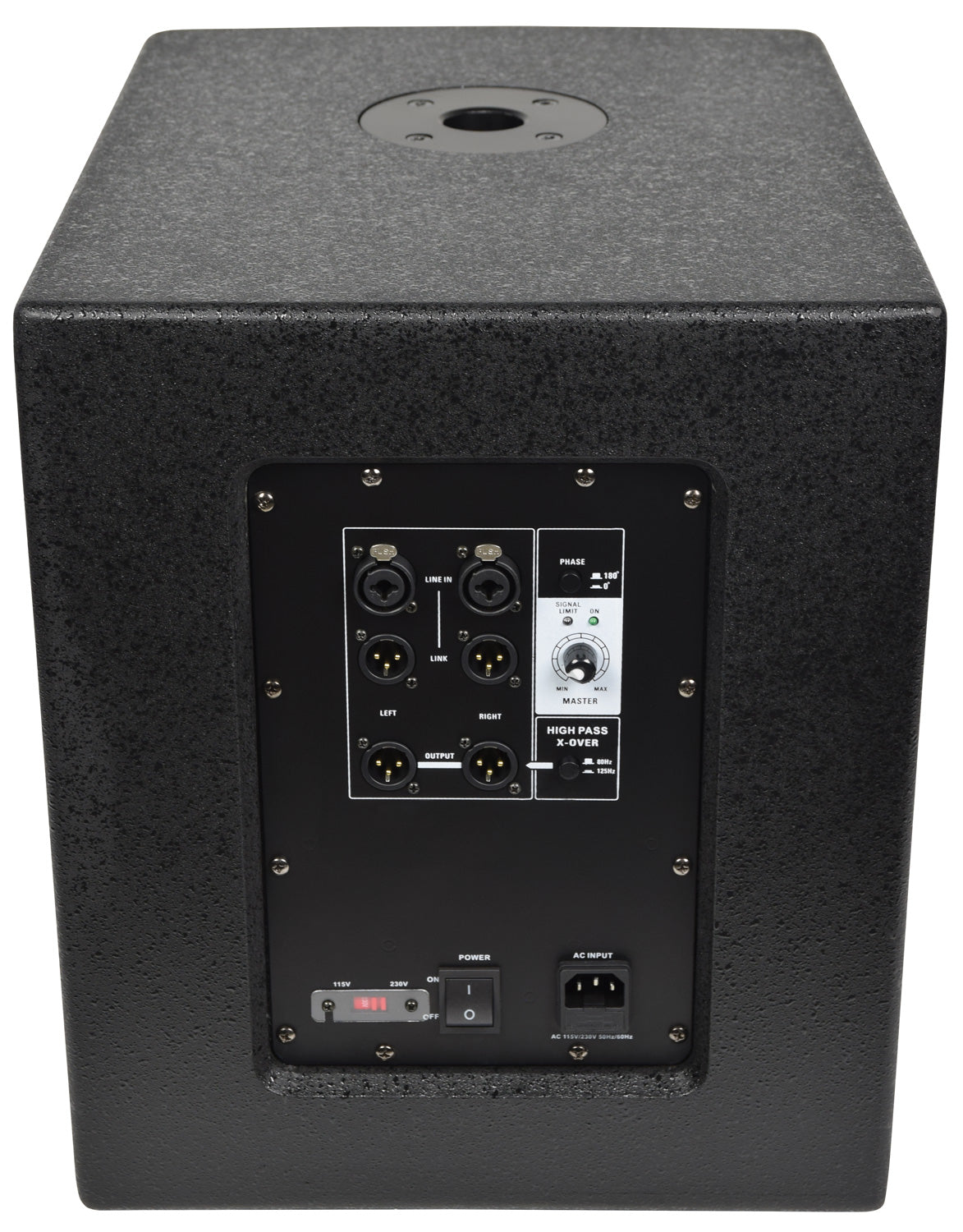

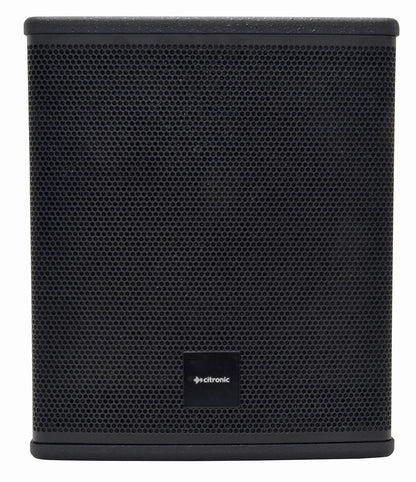

Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.

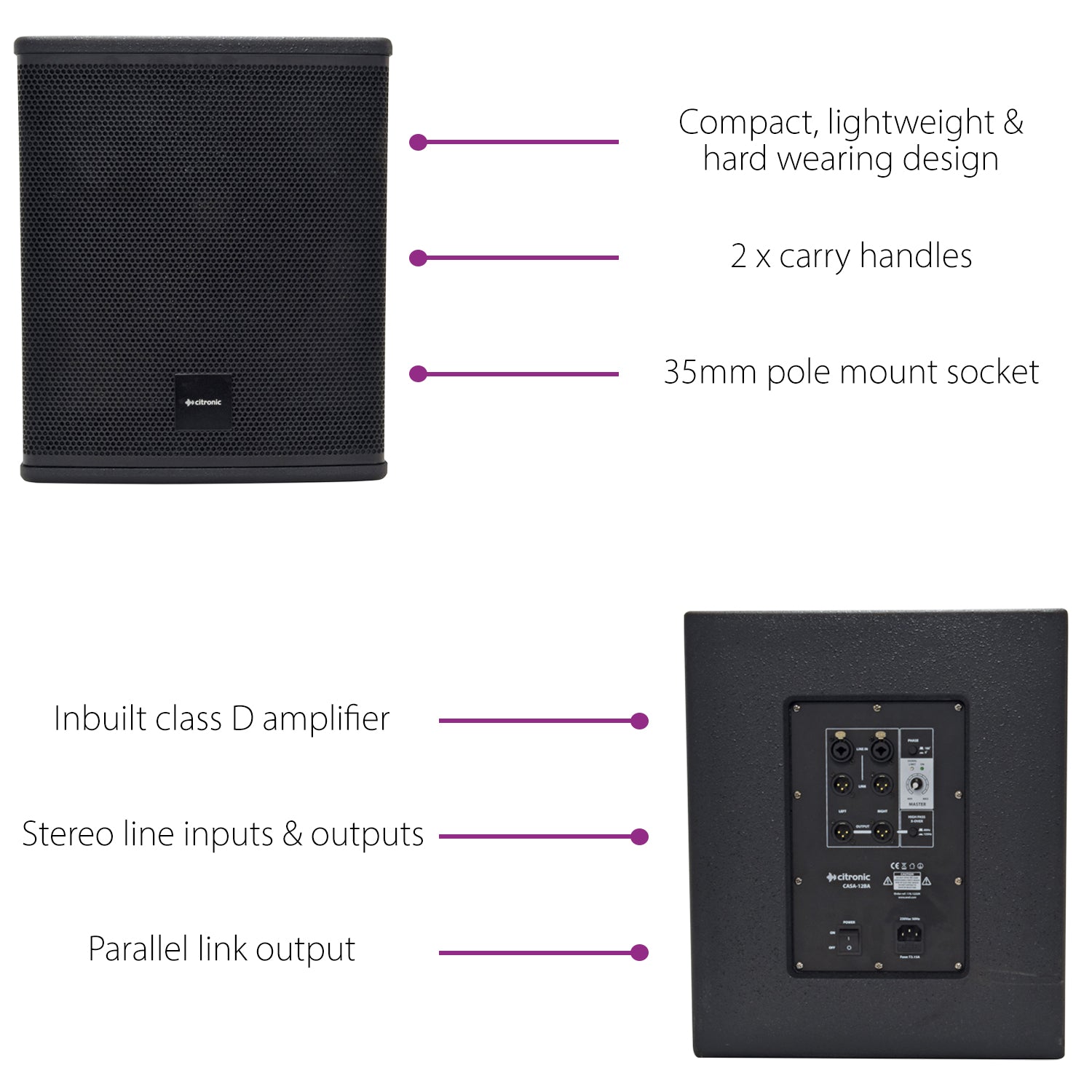

Compact and lightweight design
15mm MDF cabinet with polyurea finish

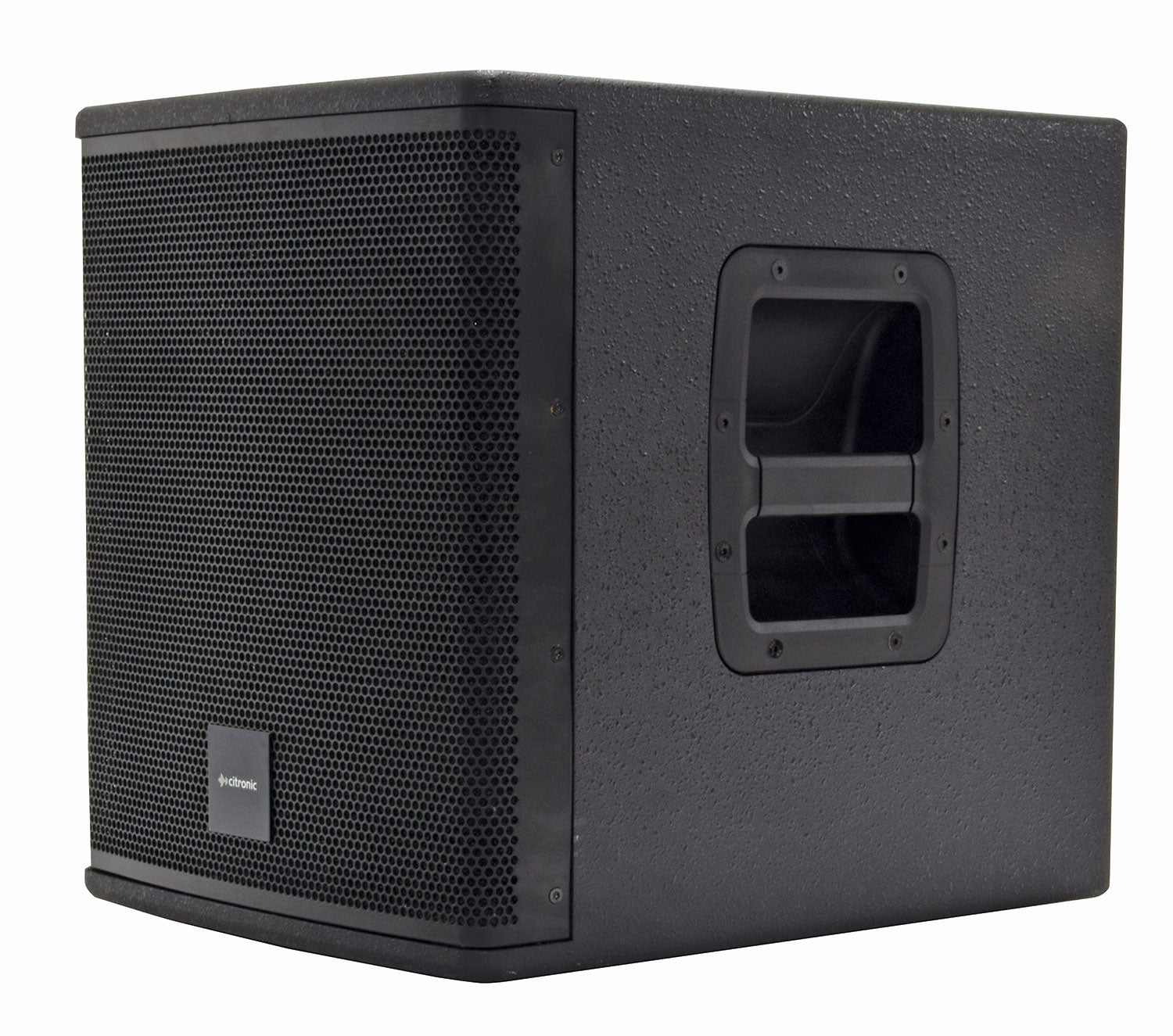

2 x side carry handles
35mm pole mount socket
15" and 18" models include mounting points for castors 178.727UK
Weight 16.23kg
Dimensions 431 x 407 x 338mm
Frequency response 60 - 150Hz
SPL max. 120.0dB
Peak output 1000W
Output power : max. 500W
Output power : rms 300W
Voice coil 50mmØ (2")
Sub driver 250mmØ (10")
Power supply 230Vac, 50Hz (IEC)
Construction 15mm MDF with durable texture paint finish
Hardware 2 x side carry handles + 35mm pole mount socket
Amplifier : construction Class D
Line inputs L+R balanced XLR
Line outputs L+R balanced XLR & L+R link XLR
Controls Output level, phase switch, high pass x-over (output)
