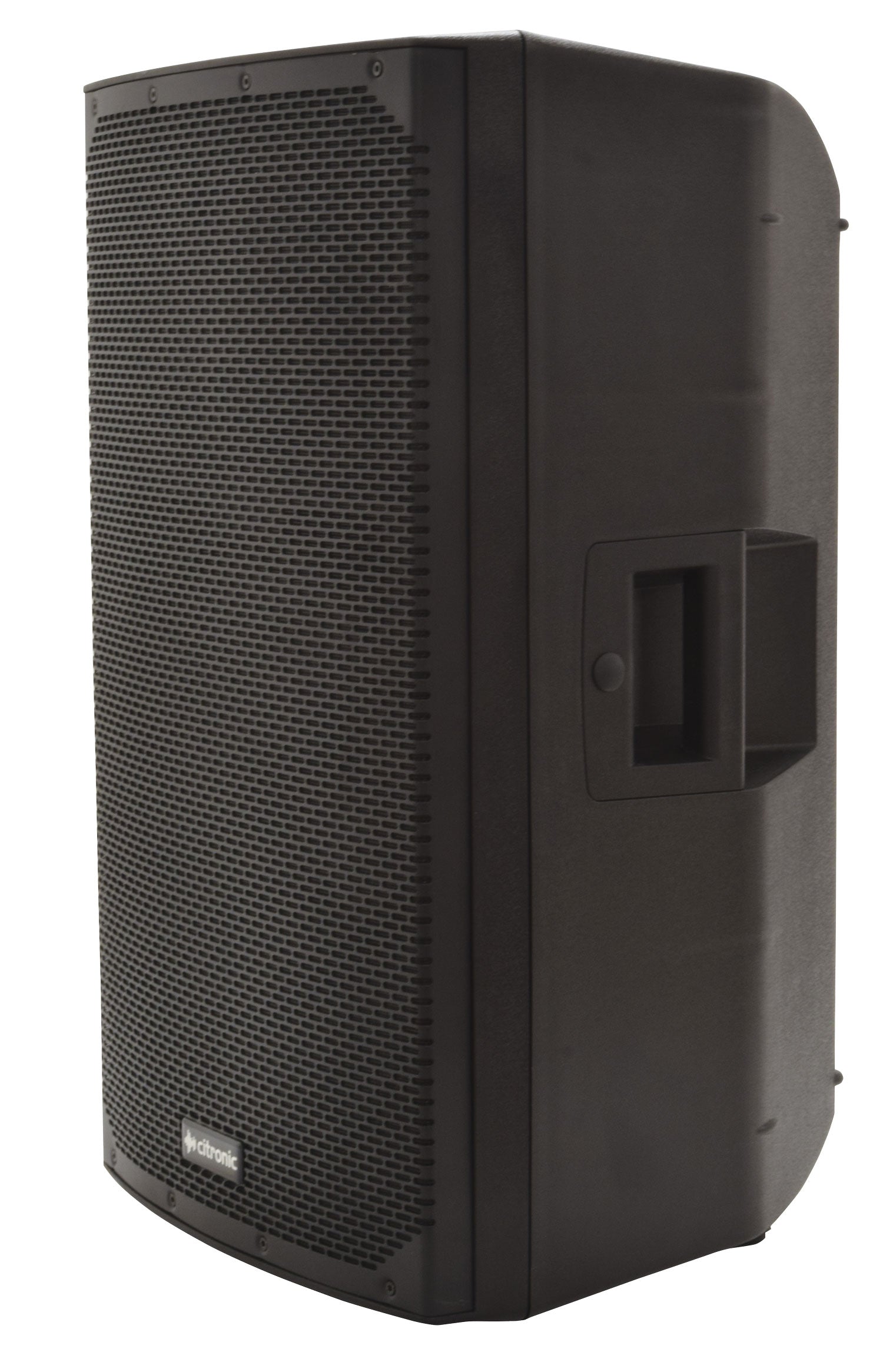

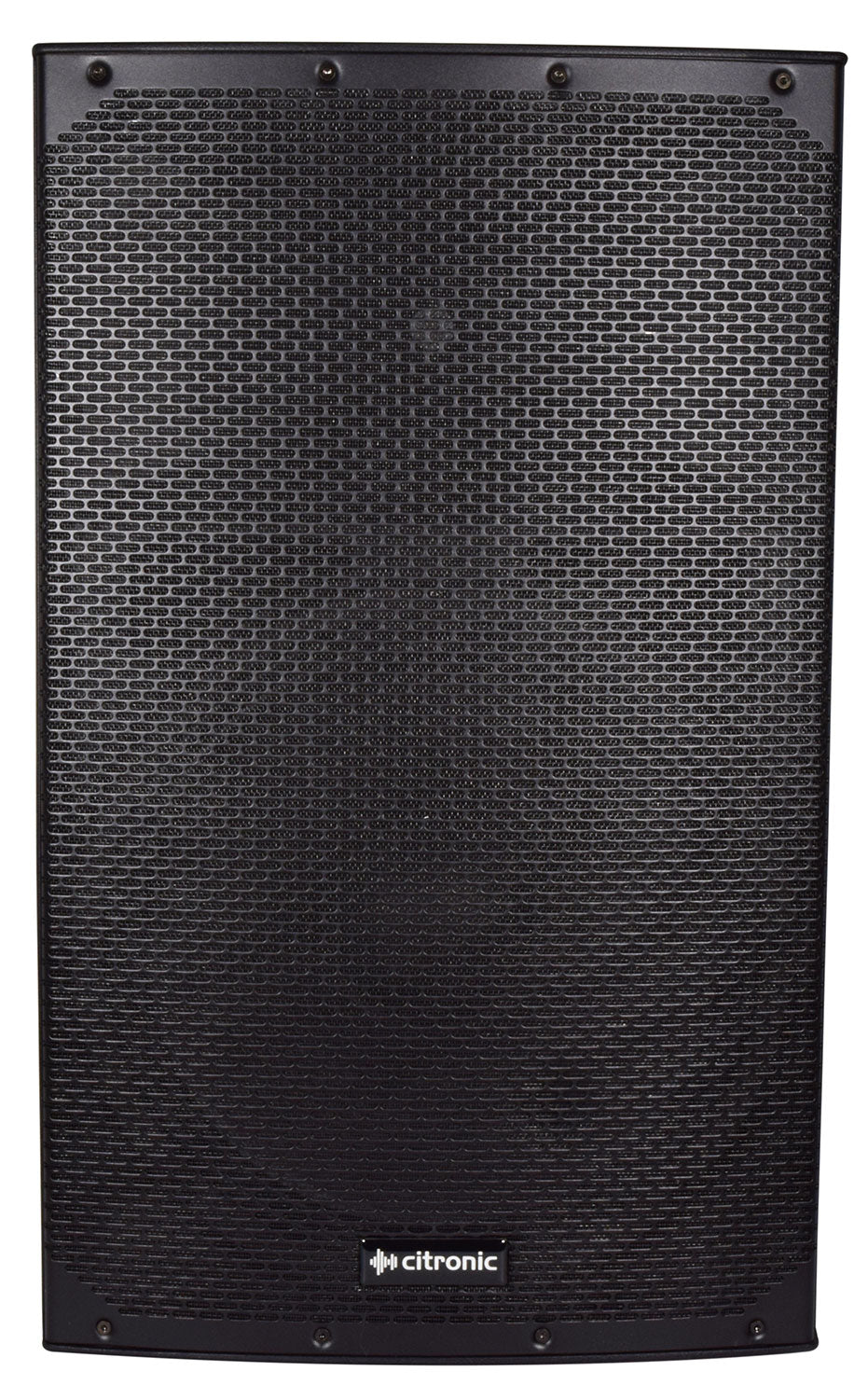

Active PA speakers with BT wireless connection and stereo link capability, housed in a compact and lightweight moulded PP enclosure. Custom designed low and high frequency drivers are powered by a digital amplifier circuit for powerful and energy-efficient performance. A switchable Mic/Line input and separate Line input are provided along with a Bluetooth receiver for playback from a smart phone or tablet. The BT section also has a link function which allows wireless connection to another CAB series speaker to form a stereo pair (Bluetooth signal only). Maximum sound output with minimal size, weight and setup time.
Bluetooth receiver with stereo link capability
Digital amplifier for lightweight & efficient performance
Integral top and side carry handles
2 inputs with separate volume control

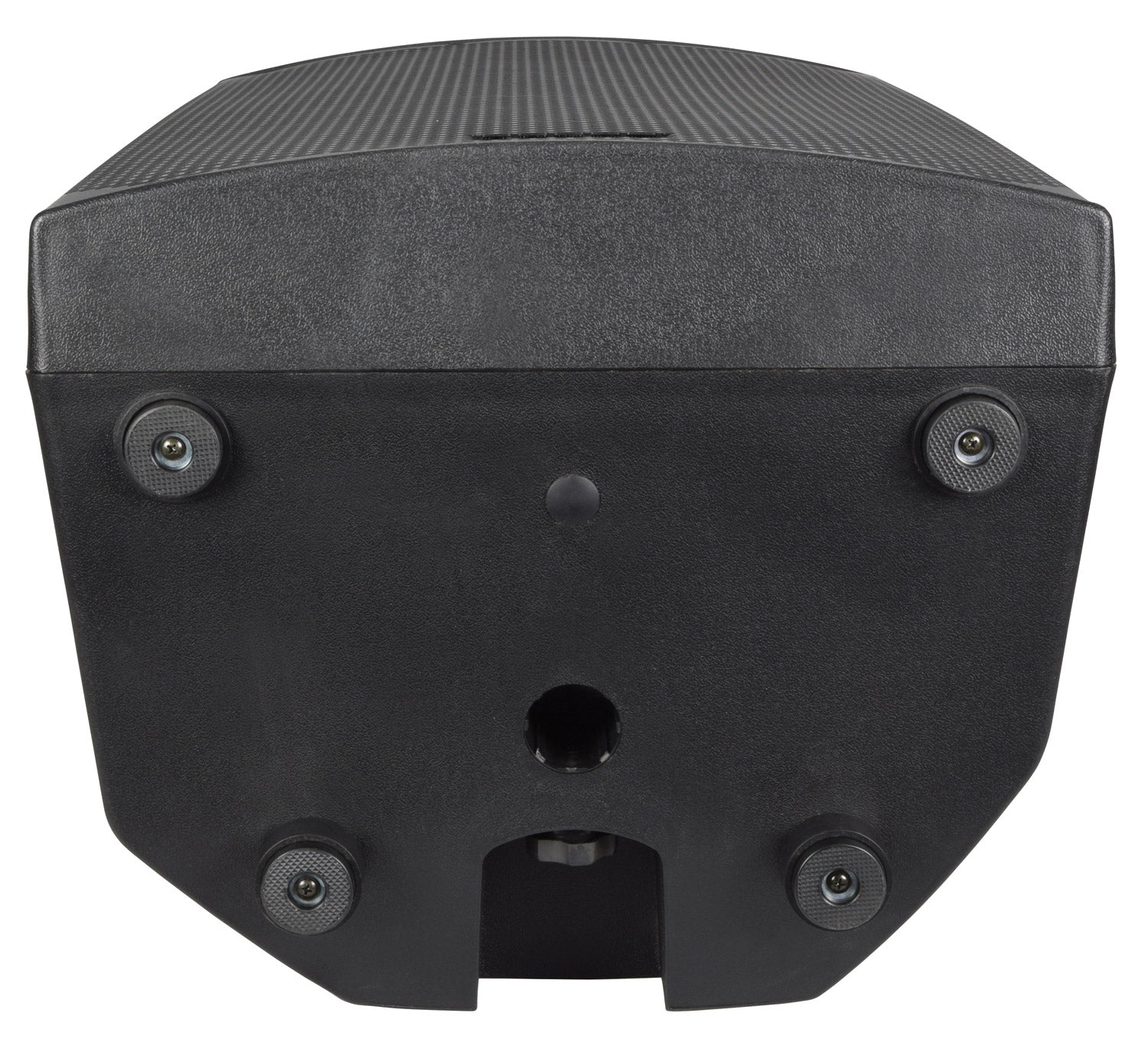

35mm pole mount
Frequency response 46Hz - 19kHz
Weight 17.6kg
Dimensions 695 x 420 x 390mm
Crossover frequency 2.6kHz
Voice coil 60mmØ (2.36")
Main driver 380mmØ (15") woofer
Max. SPL 134dB
Output power peak 1400W
Output power : rms 350W

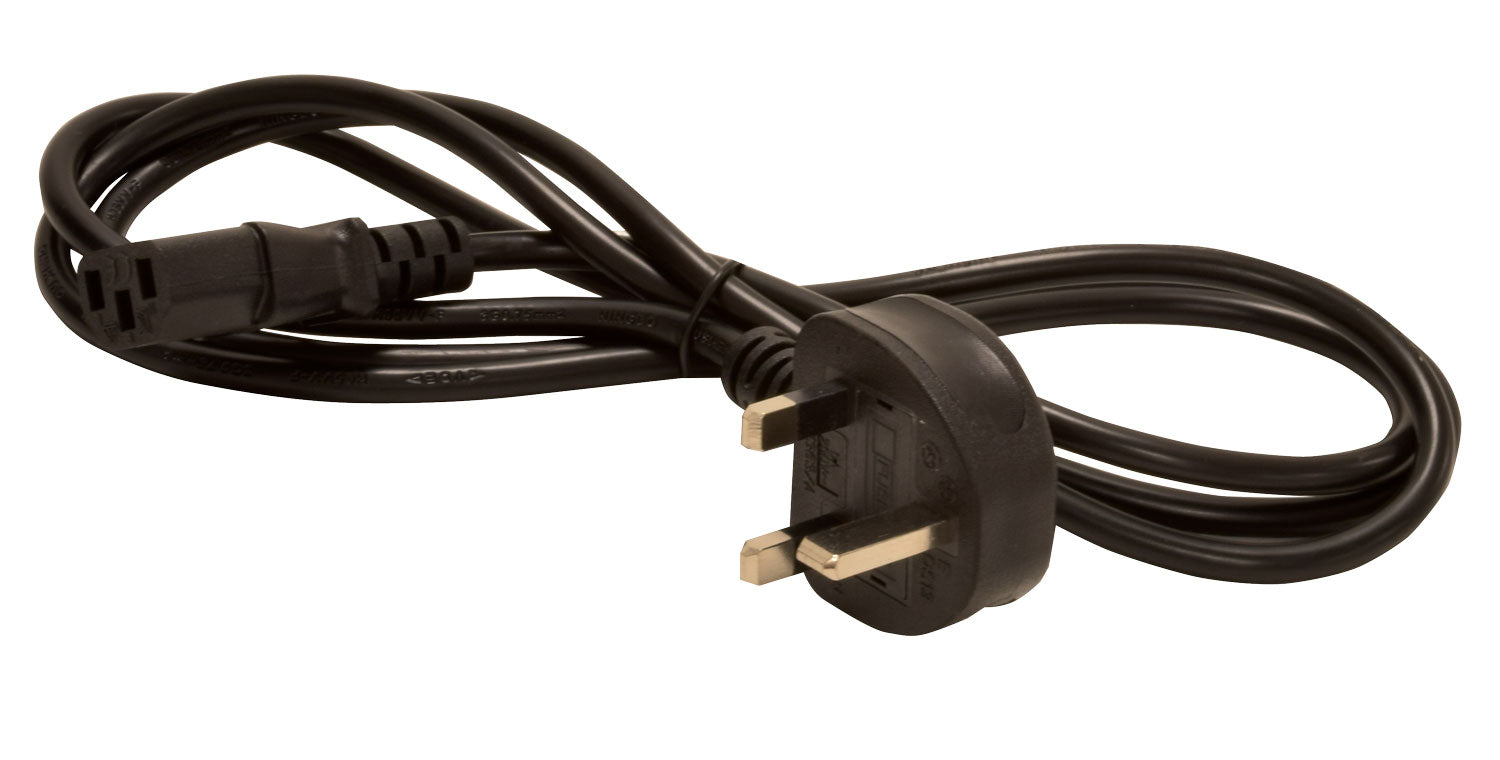

Power supply 220-240Vac, 50Hz (IEC)
Housing material Injection moulded polypropylene
Amplifier : construction Class D + Class AB
HF driver 35mmØ (1.35") Ti compression driver
Dispersion 90° x 60°

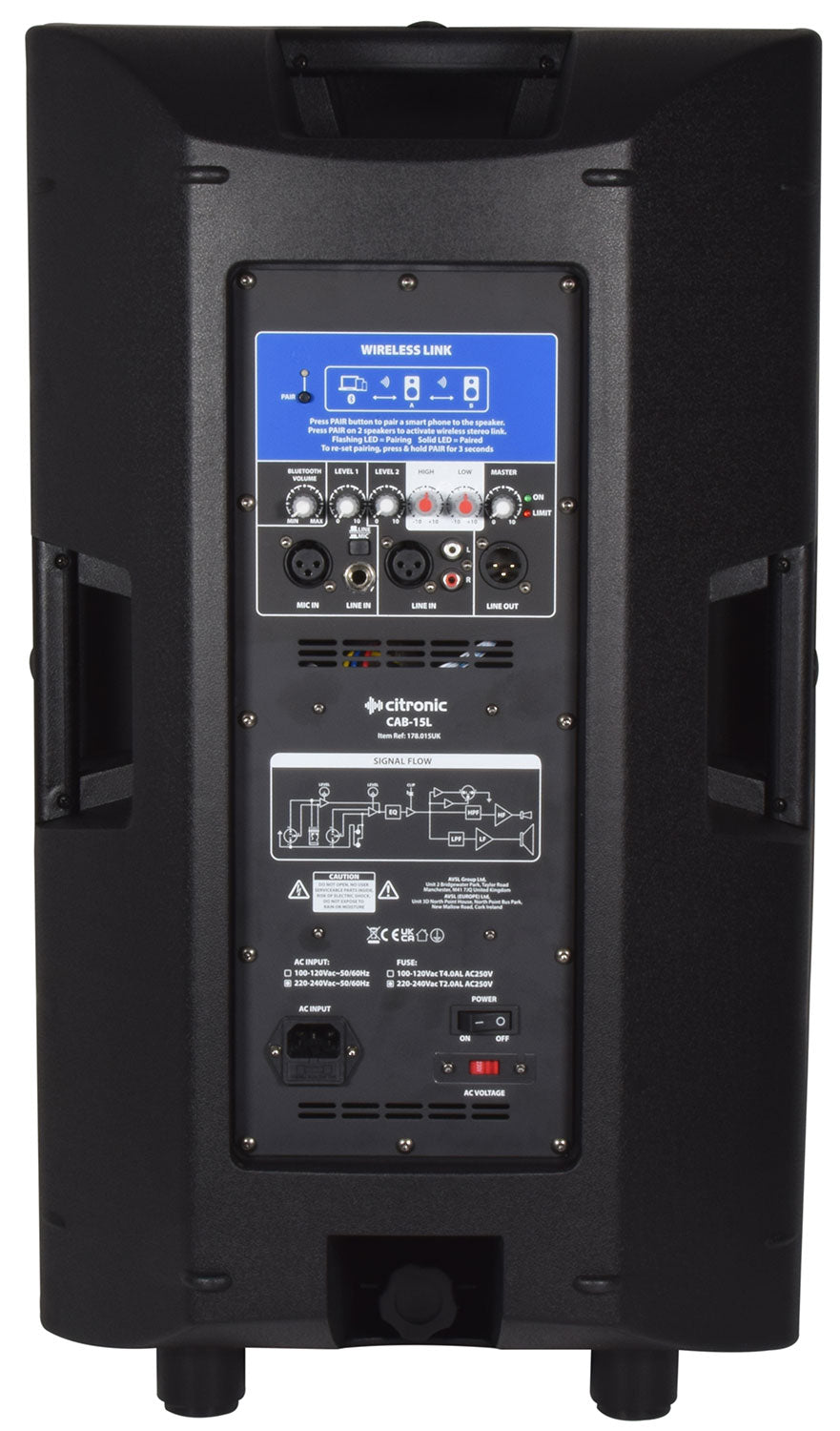

Inputs Mic/Line XLR or jack, Line XLR or RCA, Bluetooth
Indicators Power on, Limit & Bluetooth link LEDs
Line output XLR
Impedance LF: 4 Ohms, HF: 8 Ohms
