High Pressure Pump System
RGB LEDs create coloured smoke effect
Powerful 1500 W heater
150 ml/min

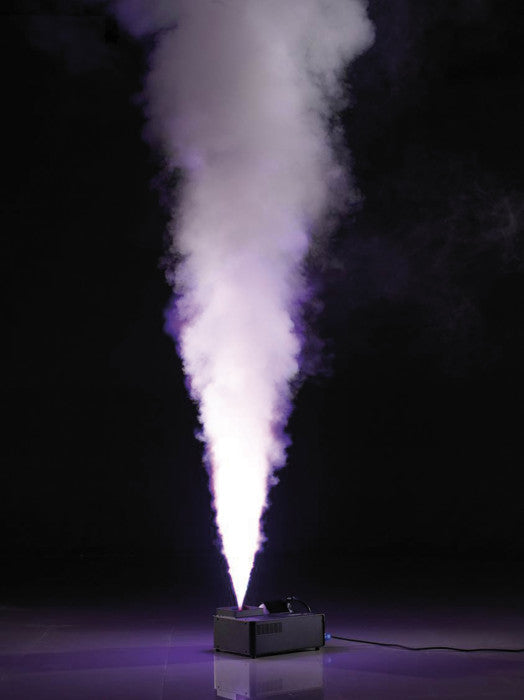

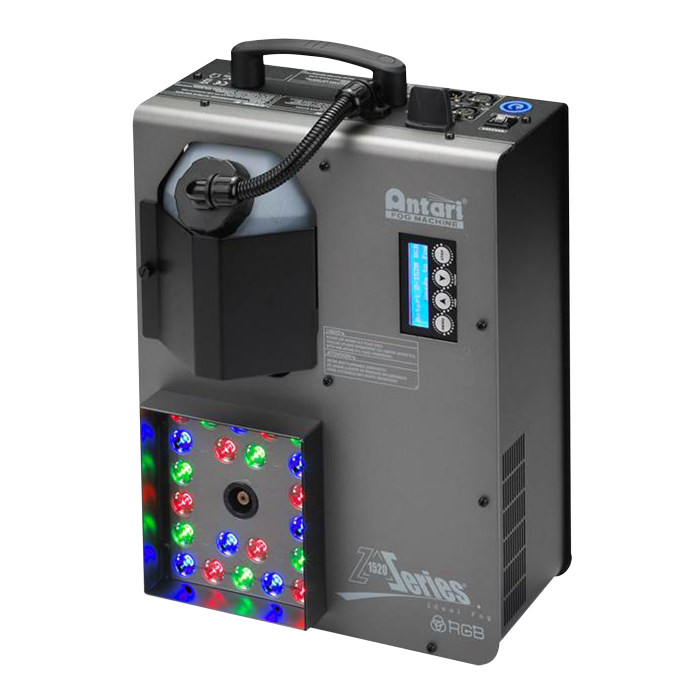

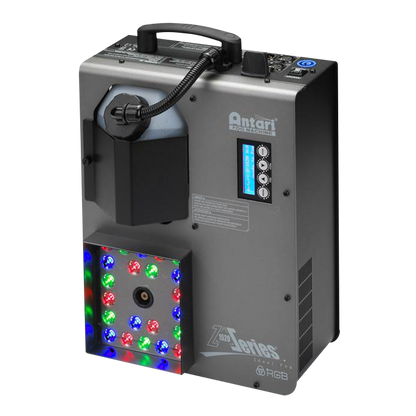

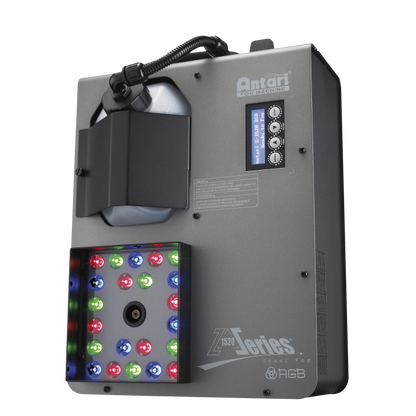

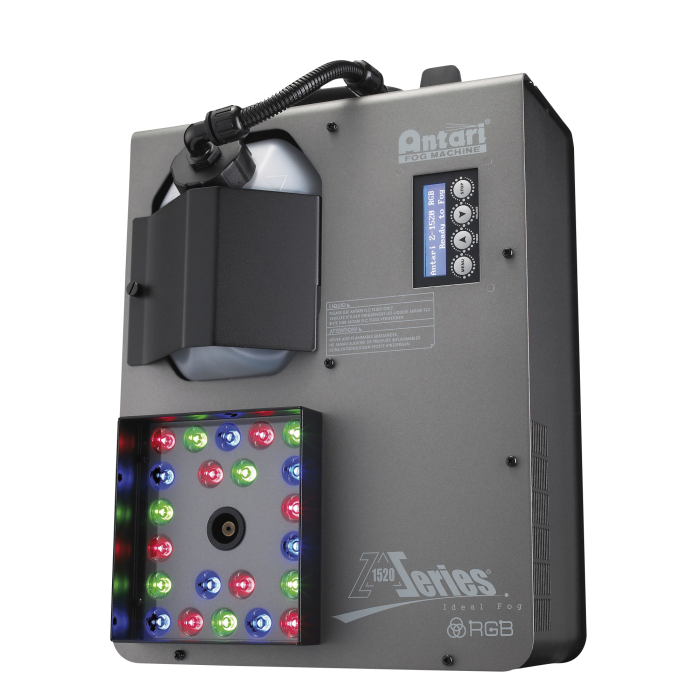

Want to add colours to your fog jet effects? Not a problem! Let the Antari Z-1520 RGB fulfill your dreams. With additional 22 high power LEDs to shine the fog output produced by Antari Z-1520, the evolutional successor of well-known Z-1020.
One machine can satisfy desires for both spectacular fog and lighting effects at the same time.
Specifications:
Electrical Specifications and Connections
Power Supply 240 V AC 50/60 Hz
Power Consumption 1550 W
Power Connector In powerCON Blue
DMX Connector XLR 3P In/Out, XLR 5P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P
Heater 1500 W
Warm-up Time 5 min
Mechanical Specifications
Output Capacity 85 m³/min (3001.7 ft³/min)
Output Direction Up
Housing Aluminium, Metal
Colour Black, Gray
Fluid Consumption 150 ml/min (5.072 oz/min)
Fluid Tank Capacity 2.4 L
Length (mm) 418 mm (16.457?)
Height (mm) 210 mm (8.268?)
Width (mm) 295 mm (11.614?)
Weight 10.4 kg (22.928 lb)
IP Rating IP20 (indoor use only)
Control and Programming
Control Mode DMX, Manual, Remote, Stand Alone, Timer
DMX Channels 8
Display LCD
Source
Light Source Power 3 W
LED Colour Type R, G, B
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Included Items
Included Cables powerCON cable
Included Remotes W-2
