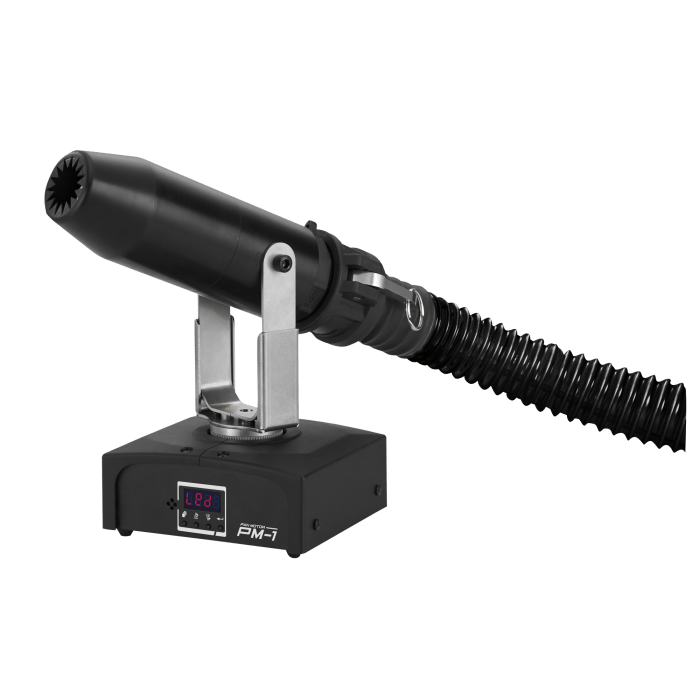

Antari PM-1 Pan Motor for S-500

For Antari S-500
Increased snow coverage
DMX / Manual control

The PM-1 is an optional pan motor which can be used in combination with the Antari S-500 snow machine and allows you to control the pan movement of your snow machine.
By using this accessory you increase the coverage of this already powerful machine.

Specifications:

Electrical Specifications and Connections
Power Supply 220-240 V AC 50 Hz
Power Consumption 11 W
Power Connector In IEC
DMX Connector In XLR 3P
DMX Connector Out XLR 3P

Mechanical Specifications
Housing Metal, Plastic
Length (mm) 169 mm (6.654?)
Height (mm) 153 mm (6.024?)
Width (mm) 154 mm (6.063?)
Weight 2.45 kg (5.401 lb)
IP Rating IP20 (indoor use only)

Control and Programming
Control Mode DMX, Manual, Stand Alone
DMX Channels 2
Display 7-segment

Rigging
Safety Attachment Yes

Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)

Included Items
Included Cables IEC cable
