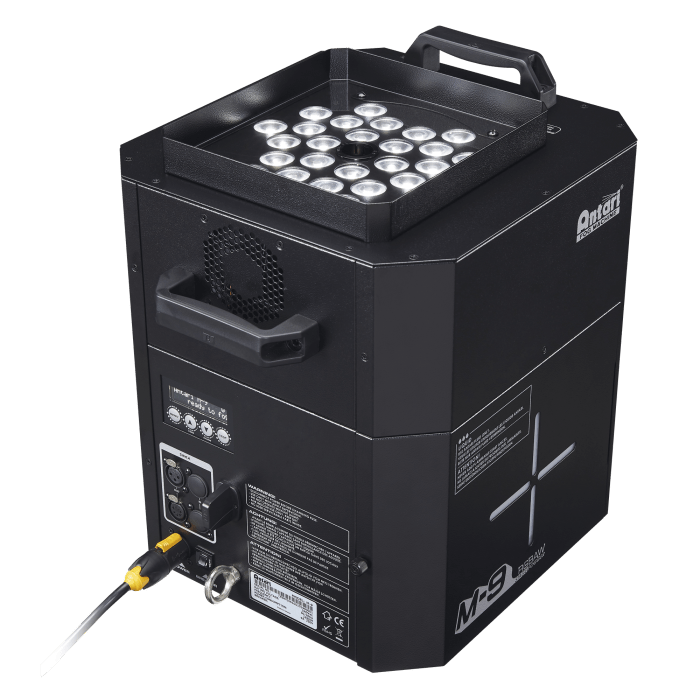

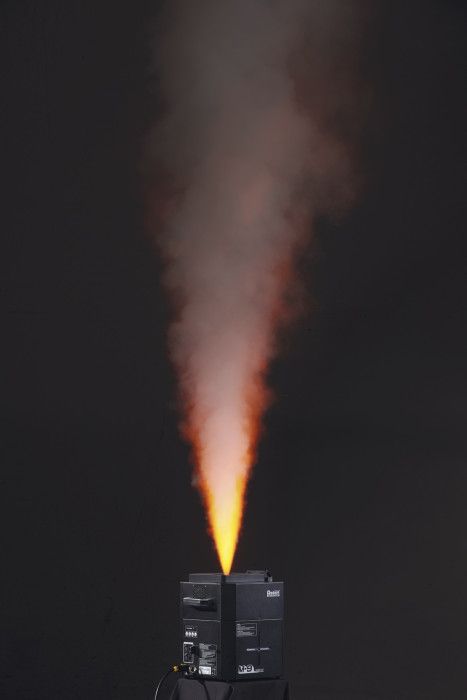

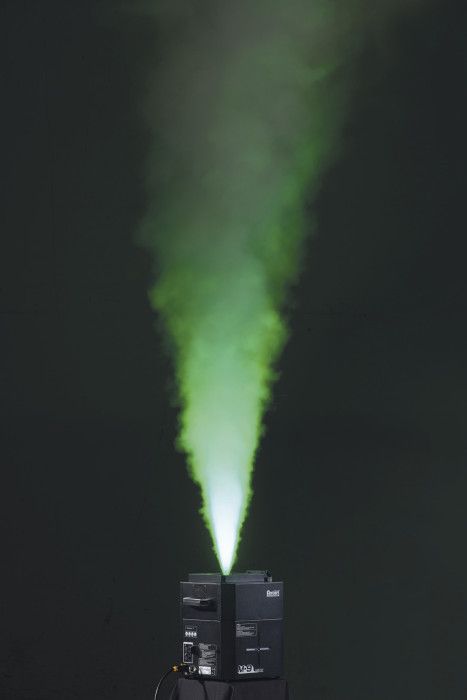

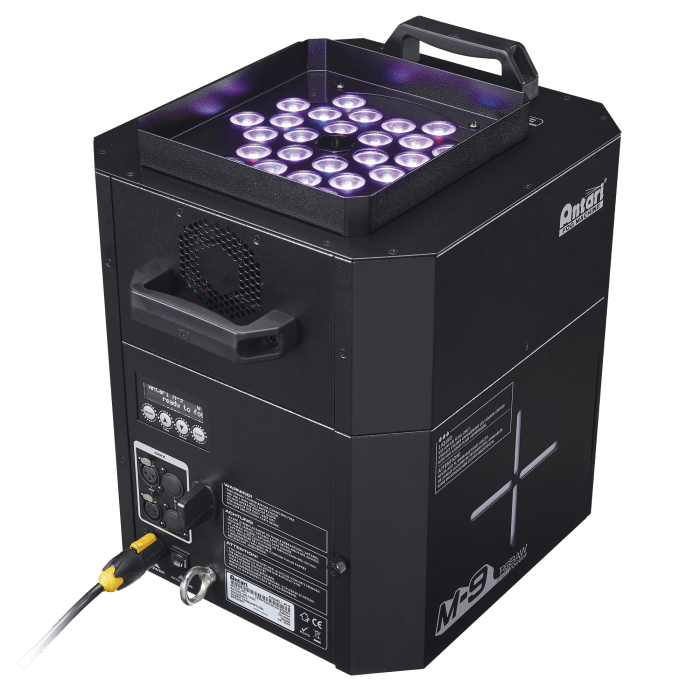

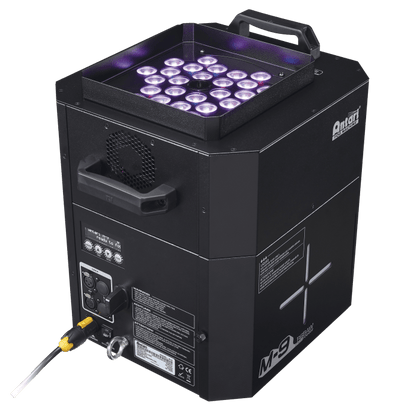

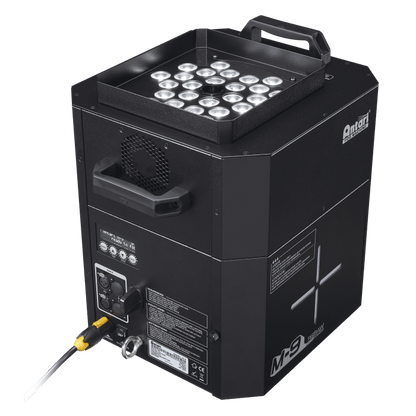

The M-9 Jet is Antari’s most advanced CO₂ effect simulator ever produced. A new specially designed and patented high pressure heater block allows the M-9 to produce a CO₂ simulated blast as high as 10 metres (over 30 feet), without the need of CO₂ tanks. It comes equipped with high-powered 5-in-1 RGBAW LEDs to create a colourful cloud in the widest colour spectrum possible. Versatile case design allows the unit to be mounted vertically, horizontally, or inverted without fear of leaking or dripping thanks to Antari’s specially designed fluid transfer system. The M-9’s versatile control options include built-in electronic timer, DMX with RDM, stand alone operation, and built-in wireless remote. The units also comes with 8 preprogrammed coloured chase effects and 25 colour macros for quick and easy programming.
Features:
Horizontal, Vertical and downward operation
Integrated 5-in-1 RGBAW LED system
400 ml/min
Closed fluid tank compartment
Built-in colour chases
Specifcations:
Electrical Specifications and Connections:
Power Supply 240 V AC 50/60 Hz
Power Consumption 1820 W
Power Connector In powerCON TRUE1
DMX Connector XLR 3P In/Out, XLR 5P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P
Heater 1500 W
Warm-up Time 14 min
Mechanical Specifications:
Output Direction Up
Housing Aluminium, Metal
Colour Black
Fluid Consumption 400 ml/min (13.526 oz/min)
Fluid Tank Capacity 6 L
Length (mm) 393 mm (15.472″)
Height (mm) 420 mm (16.535″)
Width (mm) 321 mm (12.638″)
Weight 25 kg (55.116 lb)
IP Rating IP20 (indoor use only)
Control and Programming:
Control Mode DMX, Manual, Remote, Stand Alone, Timer
DMX Channels 10, 15, 25
Wireless Optional
Display LCD
Source:
Light Source Type LED
Light Source Power 216 W
LED Colour Type RGBAW
Rigging:
Safety Attachment Yes
Thermal Specifications:
Maximum Ambient Temperature 40 °C (104 °F)
Included Items:
Included Cables powerCON TRUE1 cable
