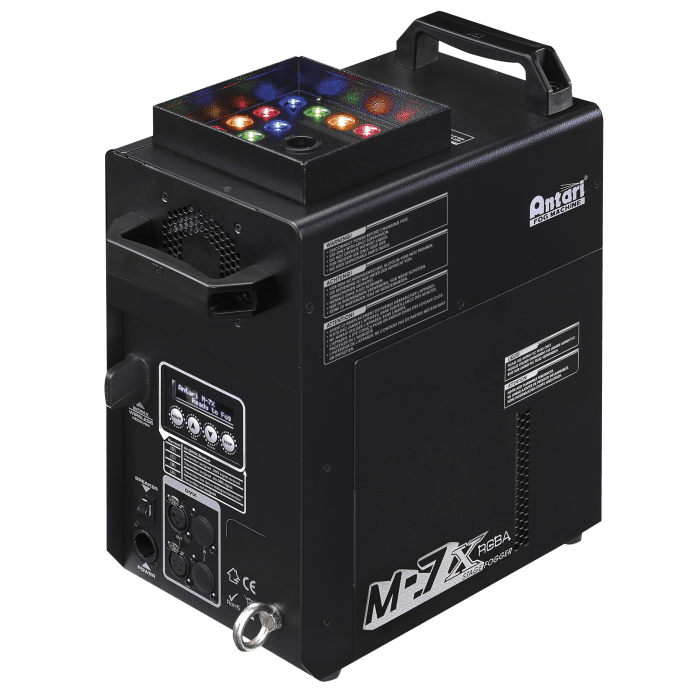

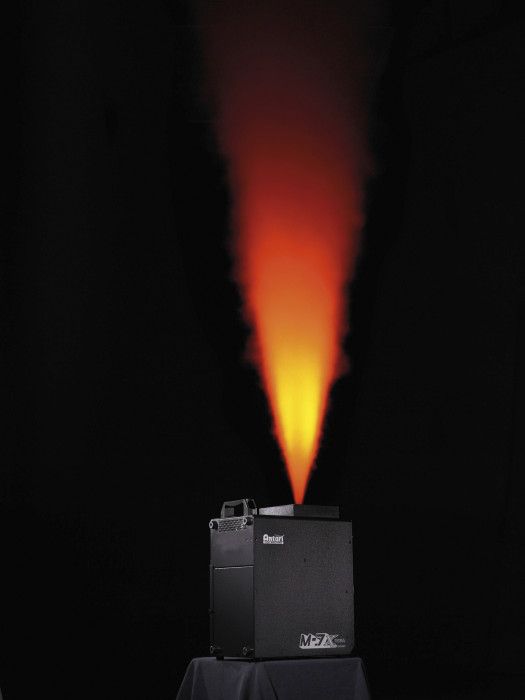

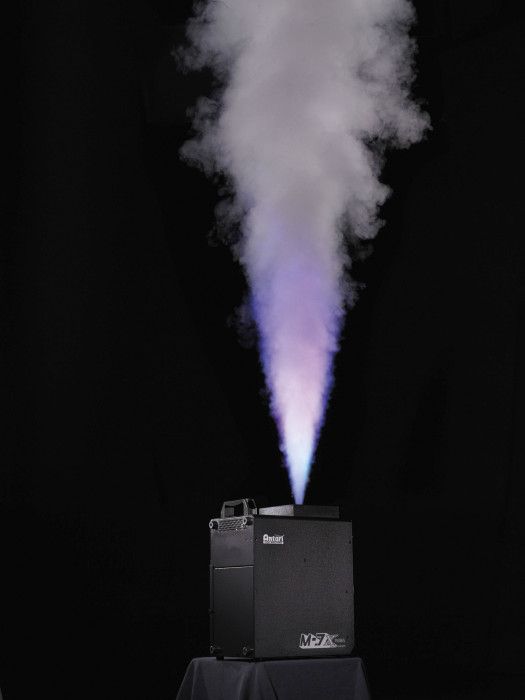

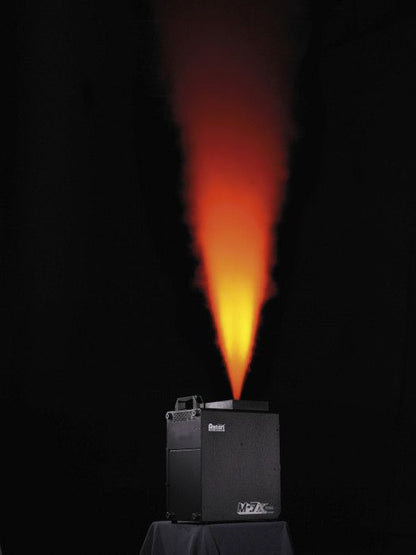

The Antari M-7X is a professional upright fogger with a powerful output and RGBA LEDs to create a colourful CO₂ effect. It can be used in horizontal and vertical, up and downwards positions without problems. The mechanical design of M-7X is ideal for rentals because the fluid tank is kept in a separate compartment inside the machine. This is ideal for transport because there's no need to worry about the position.
Features:
Horizontal, vertical and downward operation
Integrated RGBA LED system
200 ml/min
Closed fluid tank compartment
Built-in colour chases
Specifications:
Electrical Specifications and Connections:
Power Supply 240 V AC 50/60 Hz
Power Consumption 1520 W

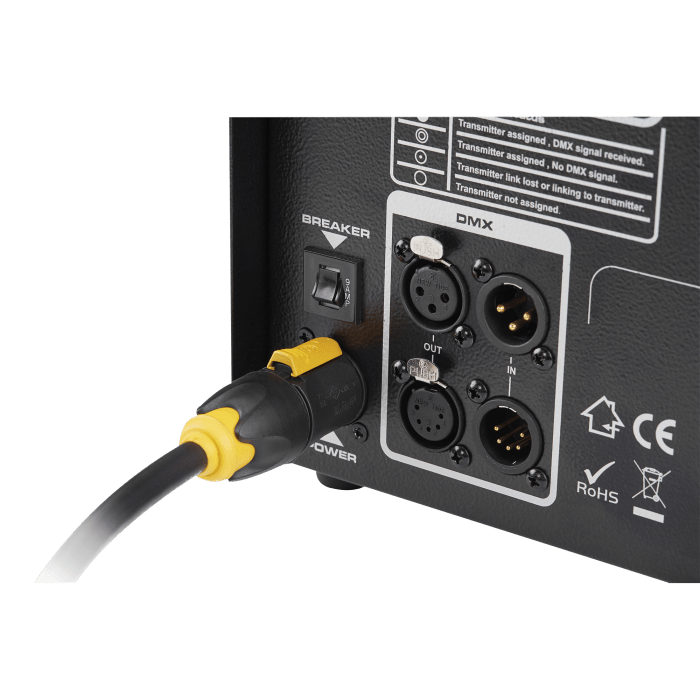

Power Connector In powerCON TRUE1
DMX Connector XLR 3P In/Out, XLR 5P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P
Heater 1500 W
Warm-up Time 7 min
Mechanical Specifications:
Output Direction Up, Forward
Housing Aluminium, Metal
Colour Black
Fluid Consumption 200 ml/min (6.763 oz/min)
Fluid Tank Capacity 2.4 L
Length (mm) 344 mm (13.543″)
Height (mm) 381 mm (15″)
Width (mm) 344 mm (13.543″)
Weight 14 kg (30.865 lb)
IP Rating IP20 (indoor use only)
Control and Programming:
Control Mode DMX, Manual, Remote, Stand Alone, Timer
DMX Channels 9
Wireless Optional
Display LCD
Source:
Light Source Type LED
Light Source Power 66 W
LED Colour Type R, G, B, A
Rigging:
Safety Attachment Yes
Thermal Specifications:
Maximum Ambient Temperature 40 °C (104 °F)
Included Items:
Included Cables powerCON TRUE1 cable
Included Remotes W-2
