Fog & Faze combination
150 ml/min
Rugged Flight case design
Adjustable fan position
Optional W-DMX (Lumenradio)

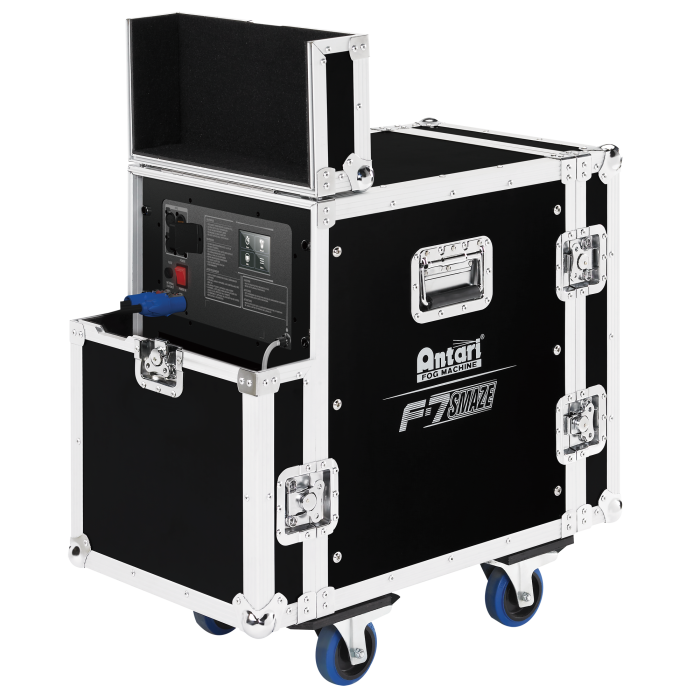

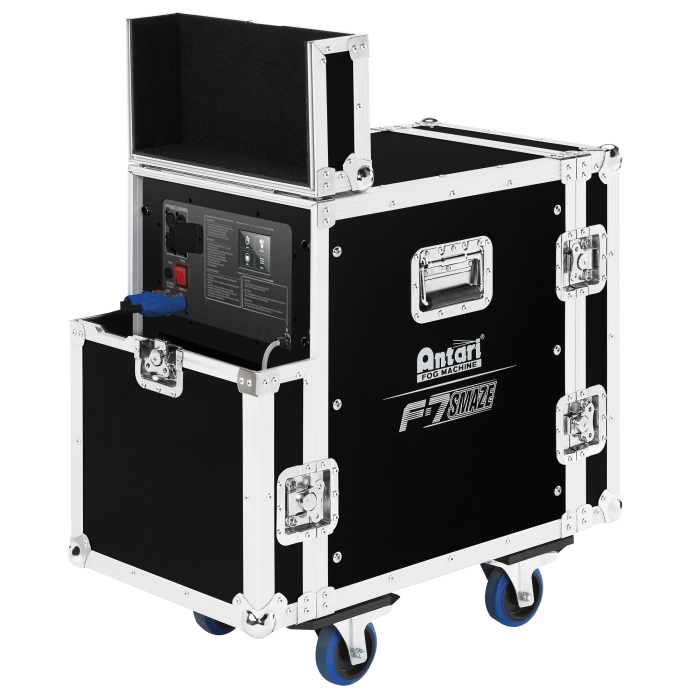

The F-7X Smaze machine offers an all-in-one solution for big venues and large stages. It combines a powerful fog machine with a fazer to fill up large venues very fast and create a nice thin layer of haze. The built-in fan allows you to direct the fog easily because of the adjustable angle.
The F-7X Smaze is equipped with the latest air pump technology and the self-cleaning feature and is protected in a flight case housing to keep the machine running under the most rough stage situations. It can be controlled manually, by DMX and wirelessly with the optional Antari ES-W-DMX Wireless DMX kit F-6.
Specifications:
Electrical Specifications and Connections
Power Supply 240 V AC 50/60 Hz
Power Consumption 1600 W
Power Connector In powerCON TRUE1
DMX Connector XLR 3P In/Out, XLR 5P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P
Heater 1600 W
Mechanical Specifications
Output Direction Forward
Housing Flightcase, Metal
Colour Black
Fluid Consumption 150 ml/min (5.072 oz/min)
Fluid Tank Capacity 10 L
Length (mm) 728 mm (28.661?)
Height (mm) 719 mm (28.307?)
Width (mm) 428 mm (16.85?)
Weight 53 kg (116.845 lb)
IP Rating IP20 (indoor use only)
Control and Programming
Control Mode DMX, Manual, RF, Timer
Wireless Optional
Display TFT
Thermal Specifications
Maximum Ambient Temperature 45 °C (113 °F)
Included Items
Included Cables powerCON TRUE1 cable
