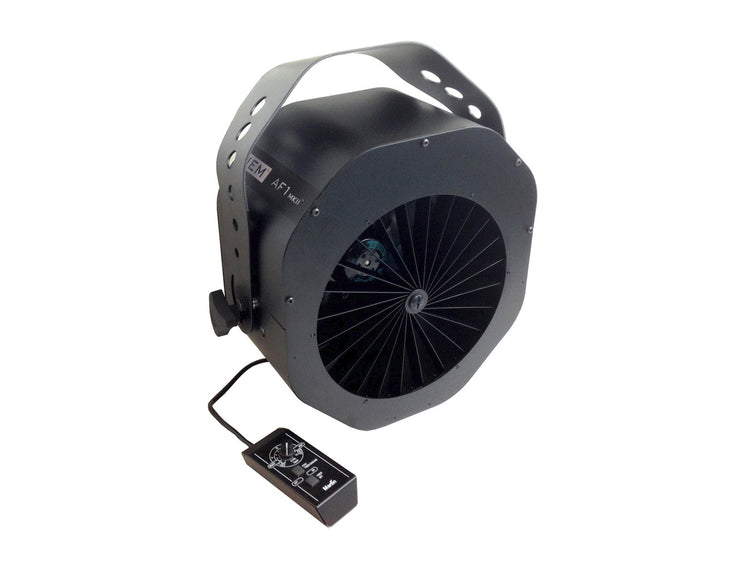

AF1 MKII

Improvements in digital electronics have made Martin’s industry-standard compact fan more responsive and even more versatile. Advances in control, rotation, speed range and increment adjustment have raised the bar for quality, performance and durability. Fully DMX controllable or using a hand-held remote, it is the ideal fan for a large variety of indoor or outdoor applications from touring and stage to theme parks, cruise ships and much more.

Features:

Increased speed range
Instant response on speed control
Lower minimum speed
New DMX adaptor with increased resolution
Compact remote available
Reduced motor noise at low speeds
Floor standing or truss mounting
Optional touring frame

Specifications:

General:
Remote control: 3-pin locking XLR
DMX data: 3-pin and 5-pin locking XLR
Power connection: 3-pin IEC
AC power (EU models): 220-240 V nominal, 50 Hz
AC power (US models): 110-120 V nominal, 60 Hz
Main fuse (220-240 V power): 3.15 AT (slow blow)
Main fuse (110-120 V power): 5 AT (slow blow)
Maximum airflow: 1815m3 per hour
Fan speed: 200-2500 rpm approx
Housing: Steel
Orientation: Any

Physical & Dimensions:
Width: 380 mm
Height: 410.5 mm
Depth: 180 mm
Dry weight: 8.5 kg
